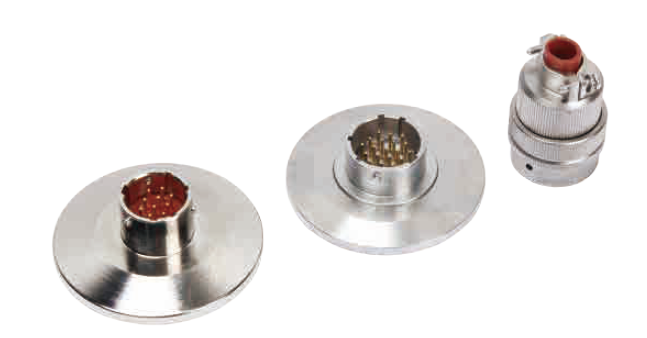

Vacuum Connector


Vacuum connector.png








Usage environment


  • Vibration: frequency 10-2000Hz, acceleration 100m/s2

  • Collision: Acceleration reaches 250m/s2

  • Working temperature: -55 ℃~+125 ℃

  • Relative humidity: The humidity is+43 ℃, reaching 93%

  • Leakage rate: ≤ 1 × 10-9Pa · m3/s

  • Working pressure: 3MPa

  • Contact material: 4J29

  • Socket housing material: copper

  • Sealing material for sockets: glass fired

  • Plug housing material: aluminum

  • Plug insulation material: polycarbonate



This connector can be used in aerospace, vacuum coating, sensors, and sealed containers, and is suitable for electronic equipment rooms with gas sealing requirements

Electrical connection between equipment and cable conductors.



Voltage withstand: 1000V (AC normal temperature and pressure)

Insulation resistance: ≥ 5000M Ω (at room temperature and pressure)
