Product features Integrated design, reliable and easy to use Standardized design and manufacturing of 100, 200, 300,400 Customizable with other specifications Working environment temperature -196 ℃ to+200 ℃ Applicable vacuum degree 1.0 × 10-7Pa

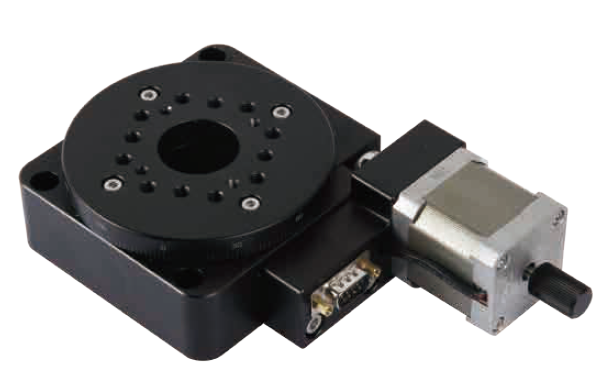

Vacuum rotary table, capable of operating at 1.0 × 10^-7Pa  vacuum environment , with a temperature resistance of up to 200 ° C, the design of the vacuum rotary table primarily considers the mechanism and materials. Most components of this series products are made of stainless steel or materials with similar thermal expansion coefficients and low gas release rates. The main applications is in vacuum chambers, high-temperature chambers, and high cleanliness environments.

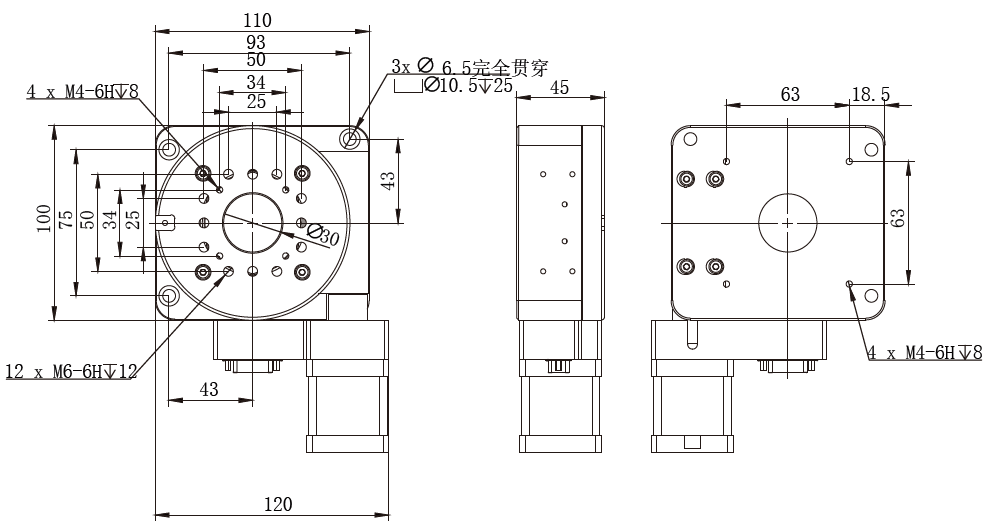

100 series

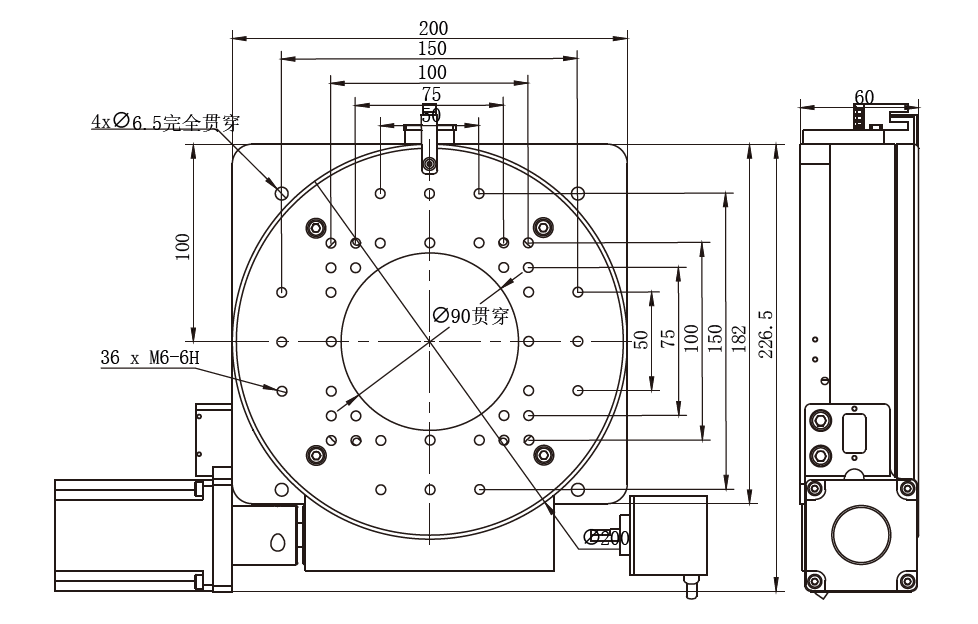

200 series

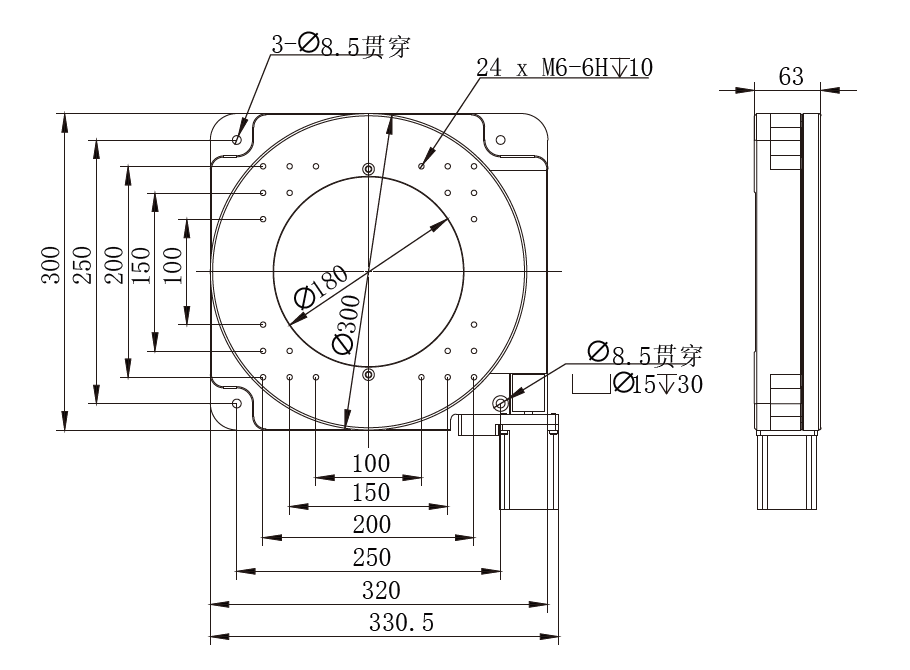

300 series
