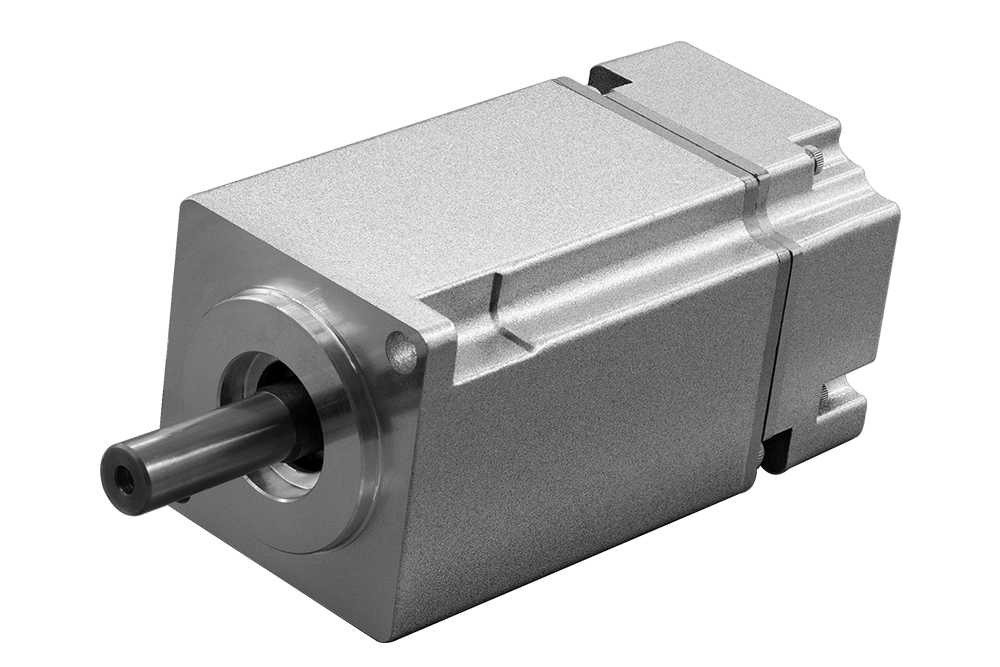

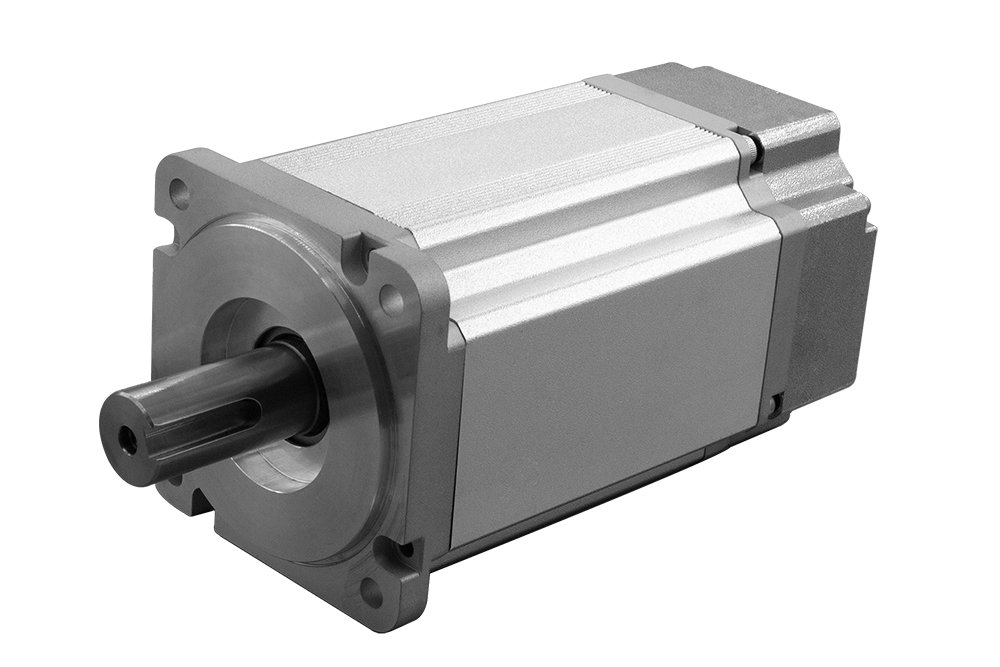

Vacuum Rated Servo Motor

l Standardized design and production of 100-750W products,

l Customizable with other specifications

l Working environment temperature -196 ℃ to+200 ℃,

l The coil temperature can reach 300 ℃, suitable for vacuum degree

l one × 10^-7 Pa, radiation resistant dose 10⁶Gy

l Can provide options for low voltage direct current and high voltage alternating current

l Optional built-in temperature sensor

Ambient Temperature 25℃		100W		400W		750W
	Unit	MS-24-100	MS-220-100	MS-24-400	MS-220-400	MS-220-750
Rated Speed	rpm	3000
Max Speed	rpm	3500
Rated Torque	N.m	0.32	0.32	1.27	1.27	2.3
Max Torque	N.m	0.64	0.64	2.54	2.54	4.6
Rated Current	A	5	0.6	11	2.4	3.8
Peak Current	A	10	1.2	22	4.8	7.6
Coil Resistance	Ω	0.42	41	0.25	4.8	2.2
Coil Inductance	mH	0.36	49	0.56	12.9	12
Back Electromotive Force Constant	V/krpm	2.5	31.2	6.8	34	46
Torque Constant	N.m/A	0.064	0.457	0.115	0.529	0.632
Rotor Inertia	Kg.m2*10-4	0.051		0.302		2.45
Weight	Kg	0.47		1.68		2.86
Mechanical Time Constant	ms	29	2.9	2.9	2.9	3.2
Electrical Time Constant	ms	1.3	1.21	2.7	2.8	5.6
Radial Load	N	40	40	60	60	80
Axial Load	N	25	25	40	40	60
Insulation Level	C
Protection Grade	IP54

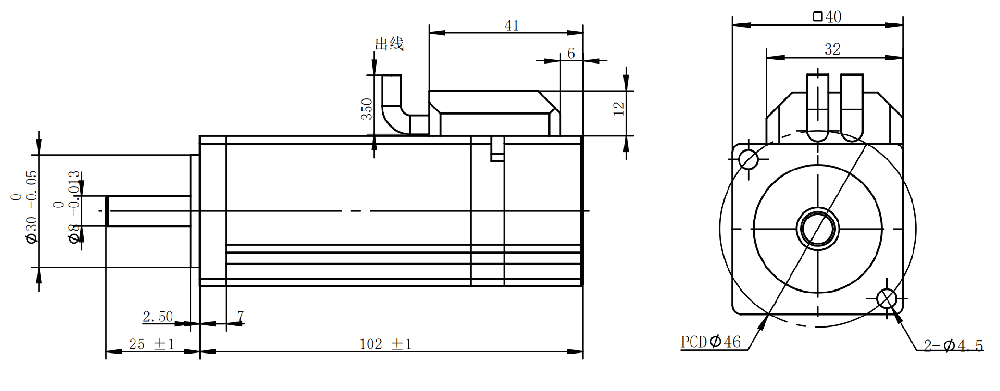

100W Servo Motor:

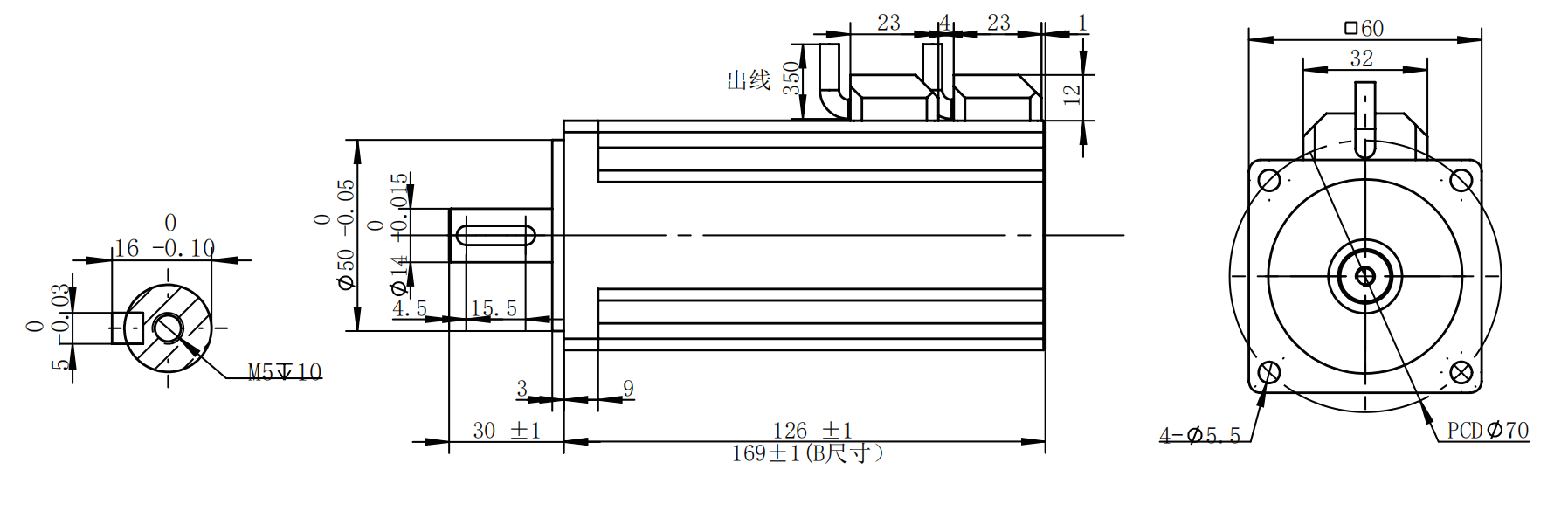

400W Servo Motor:

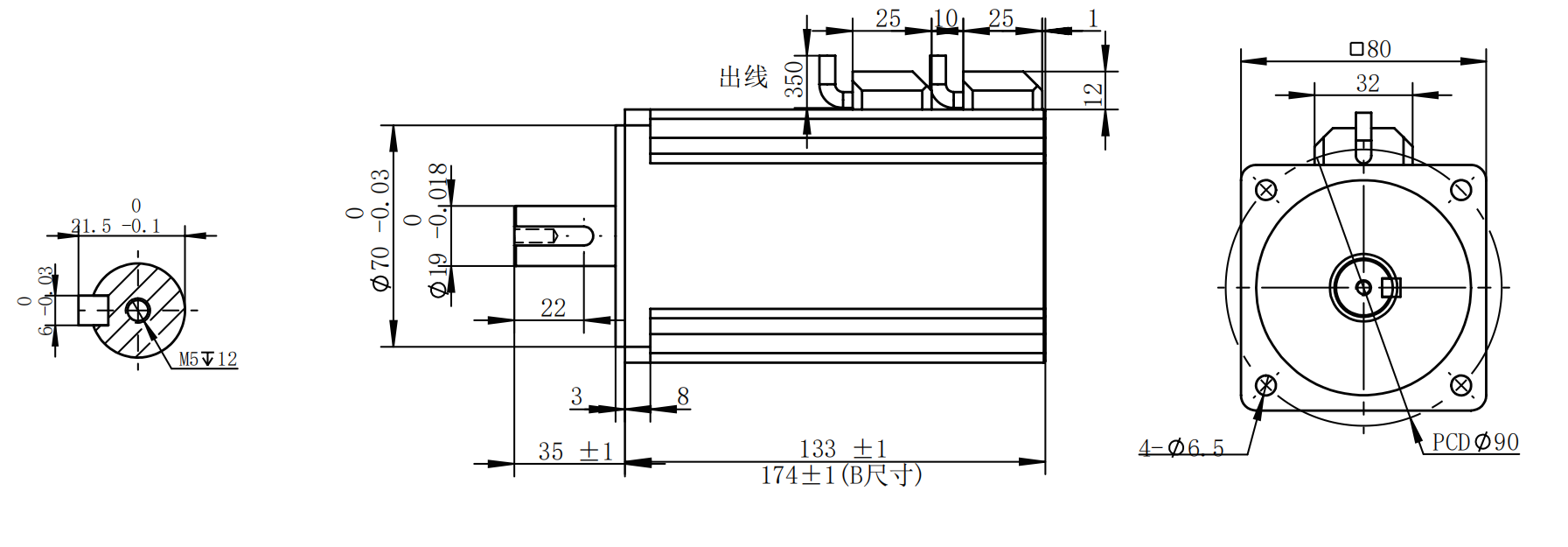

750W Servo Motor:
