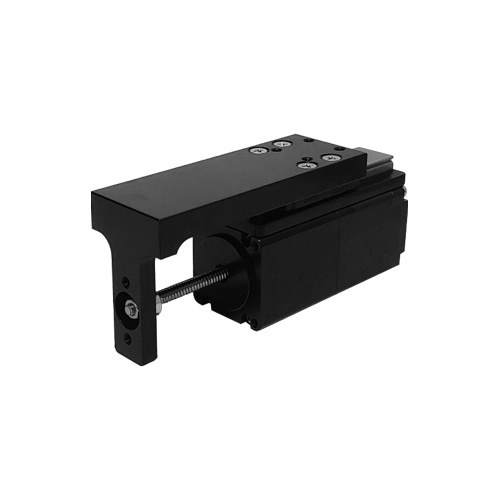

28mm DLG/DRS Electric Slide Ball Screw Linear Actuator
DLG Series is a product that integrates a stepping motor and a ball screw with a guide to achieve precise linear motion.With guide supported, DLG series enables reduction of mechanical components such···
Motor Characteristics
| Model No. | Rated Voltage[V] | Current[A] | Resistance[Ω] | Inductance[mH] | Lead Wire No. | Motor Length "L"[mm] |
|---|---|---|---|---|---|---|
| DLG28S1 | 2.1 | 1 | 2.1 | 1.5 | 4 | 33.5 |
| DLG28D1 | 3.9 | 0.95 | 4.1 | 4 | 4 | 45 |
Actuator Characteristics
| Stroke | 30mm |
|---|---|
| Maximum Thrust | 30N |
| Repeat Positioning Accuracy | 0.01mm |
| Optional Ball Screw Lead | 1mm/2mm |

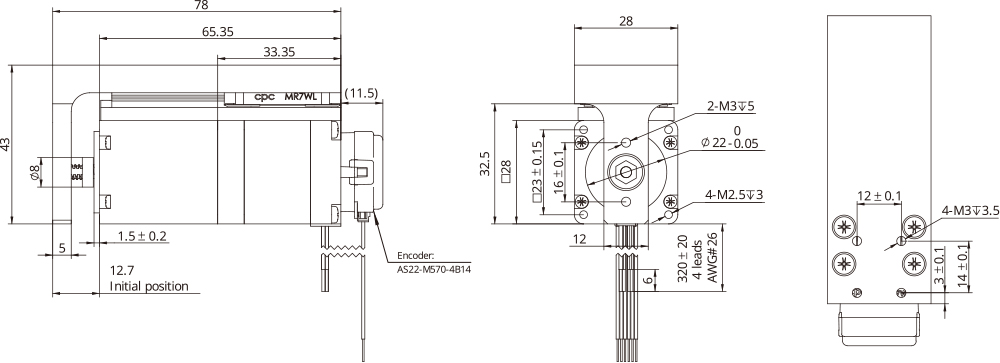

Dimensional Drawings
Speed Thrust Curves

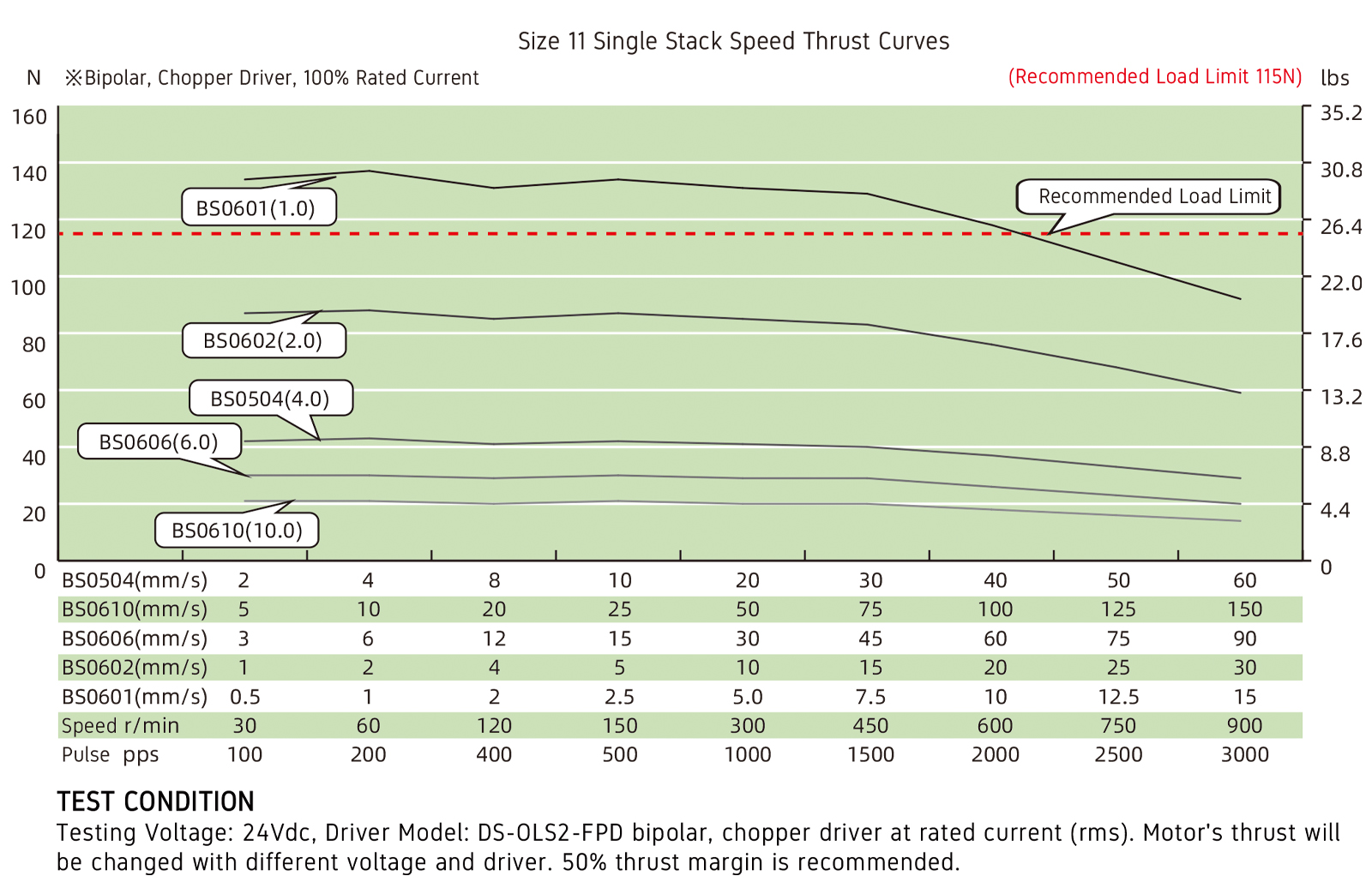

Single Stack

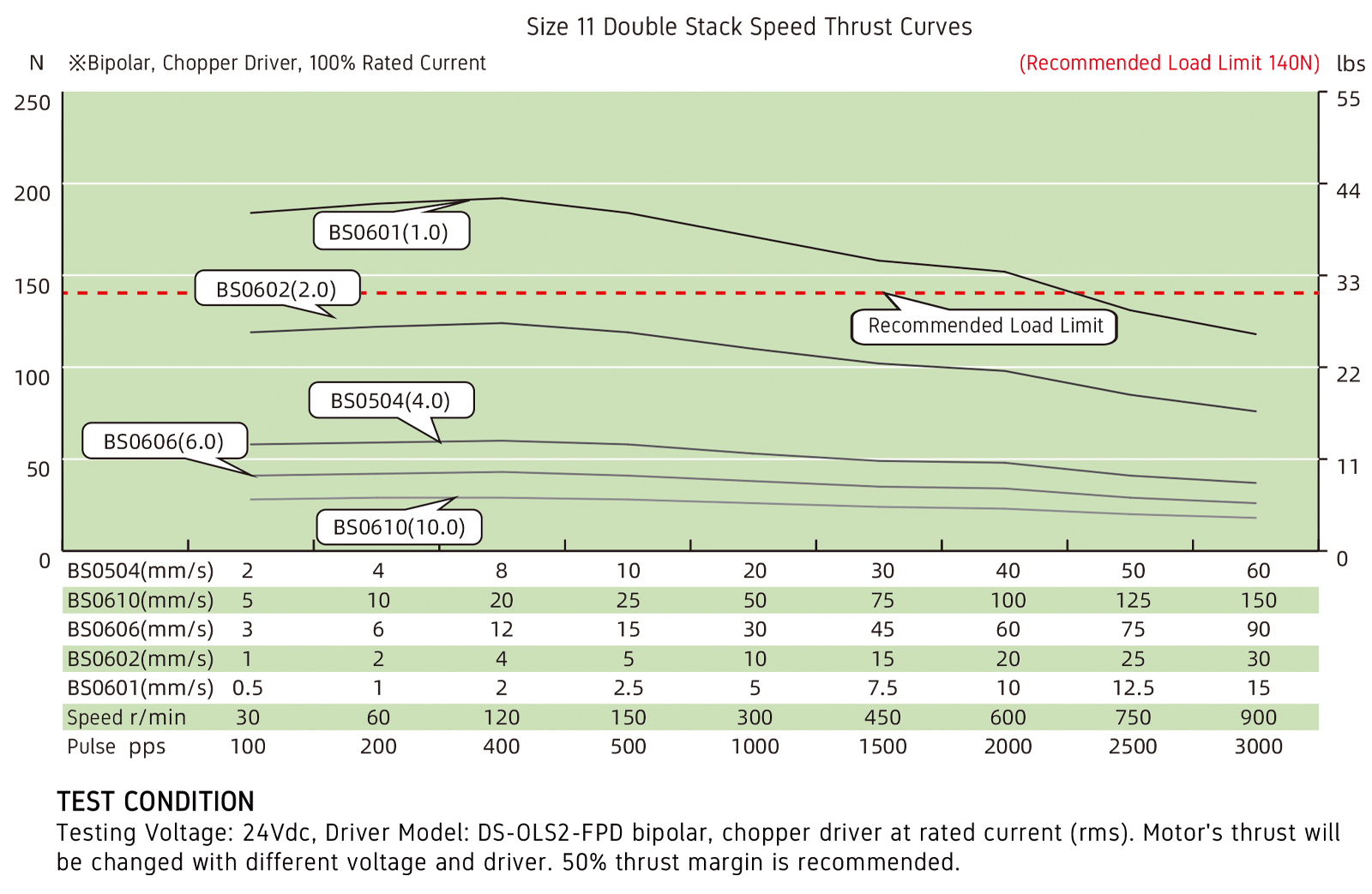

Double Stack
Options

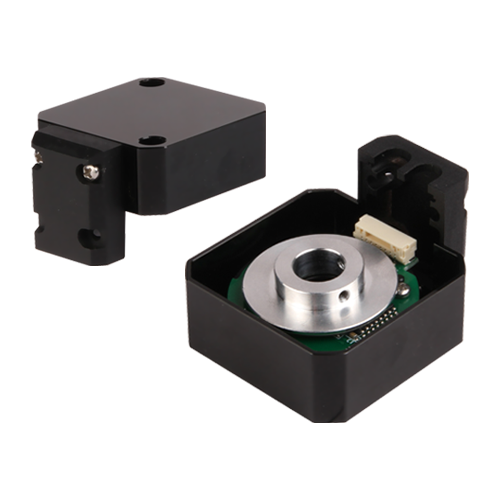

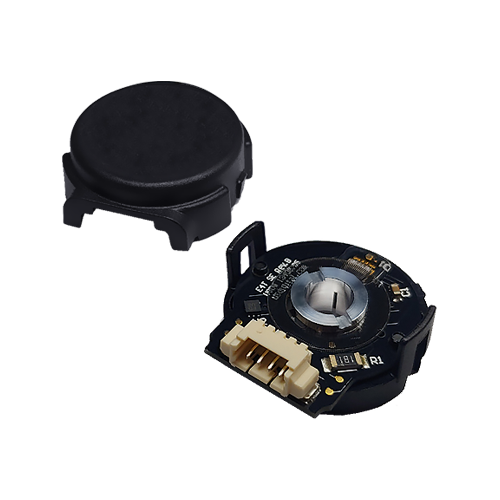

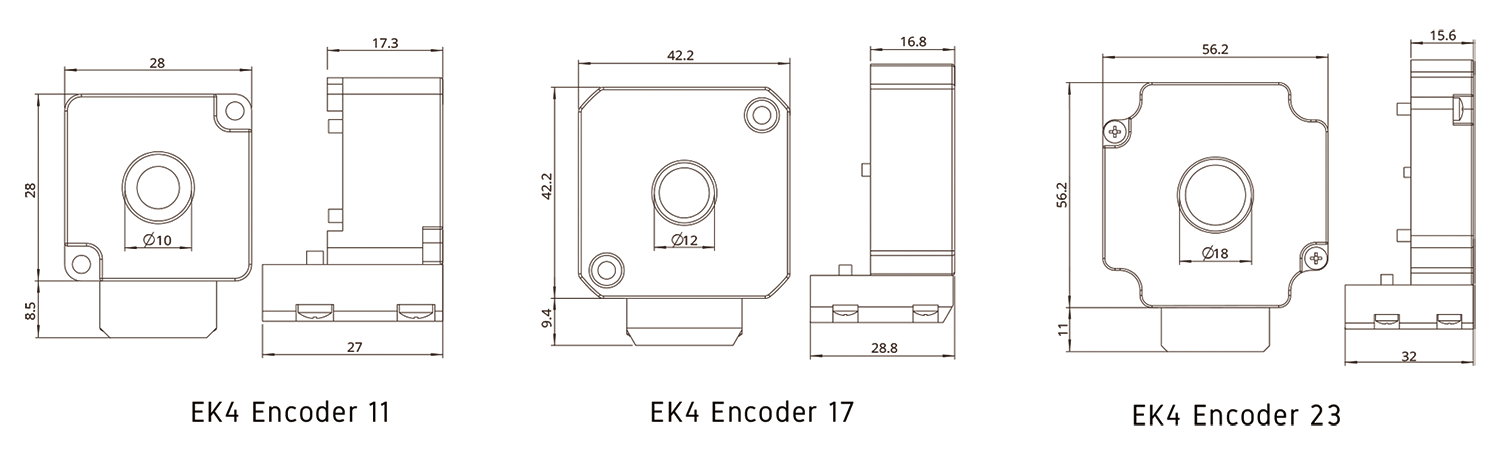

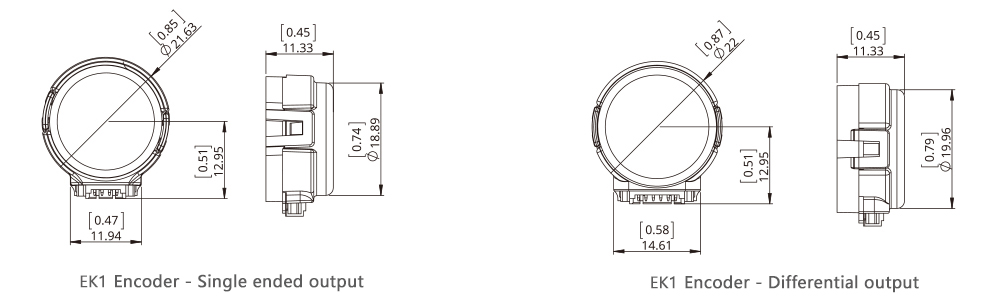

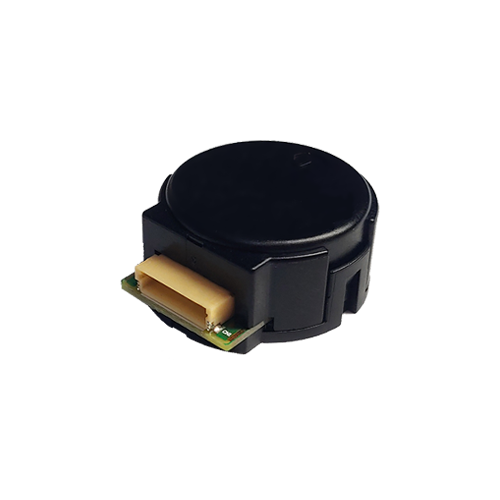

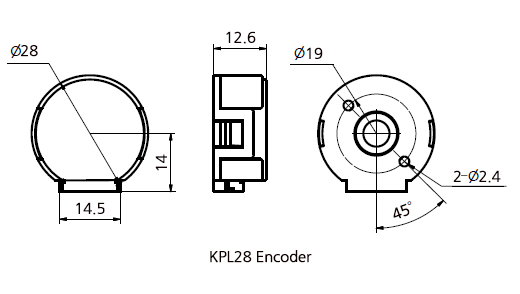

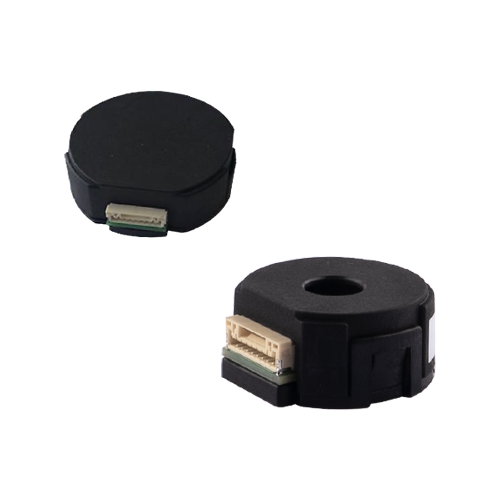

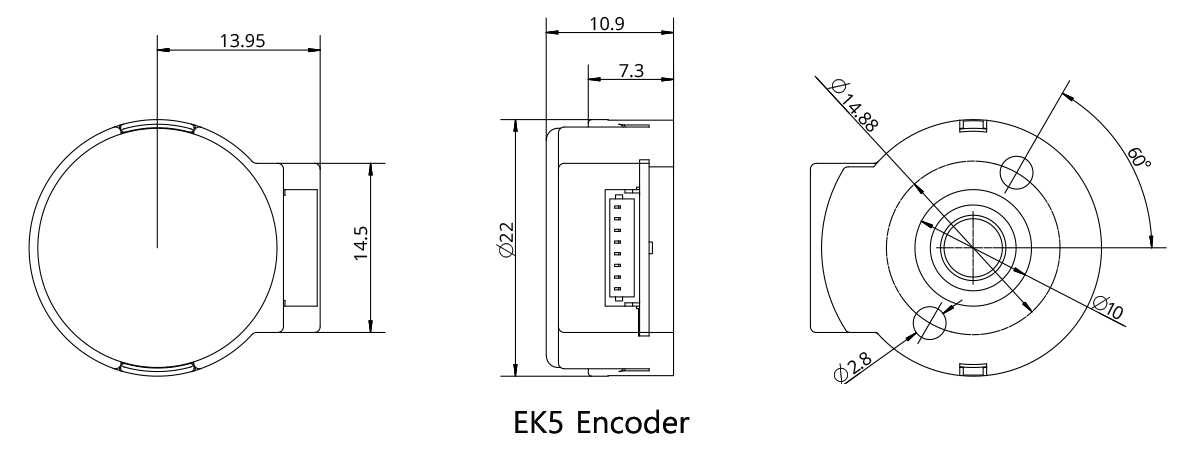

Encoder Option
| Resolution(CPR) | 100 | 108 | 120 | 125 | 128 | 200 | 250 | 256 | 300 | 360 | 400 | 500 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L |
| Resolution(CPR) | 625 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | - | - | - | - | - | - | - | - | - |
| Differential output | - | C | - | - | - | - | - | - |
| Resolution(CPR) | 360 | 500 | 512 | 1000 | 1024 | 2000 | 2048 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
| Differential output | A | B | C | D | E | F | G |
* Among EK5 Encoder, EK5D option is only available for DLG28 Actuator.
| Resolution(CPR) | 400 | 500 | 1000 | 2000 |
| Single ended output | 0 | 1 | 3 | 6 |
| Differential output | A | B | D | G |
