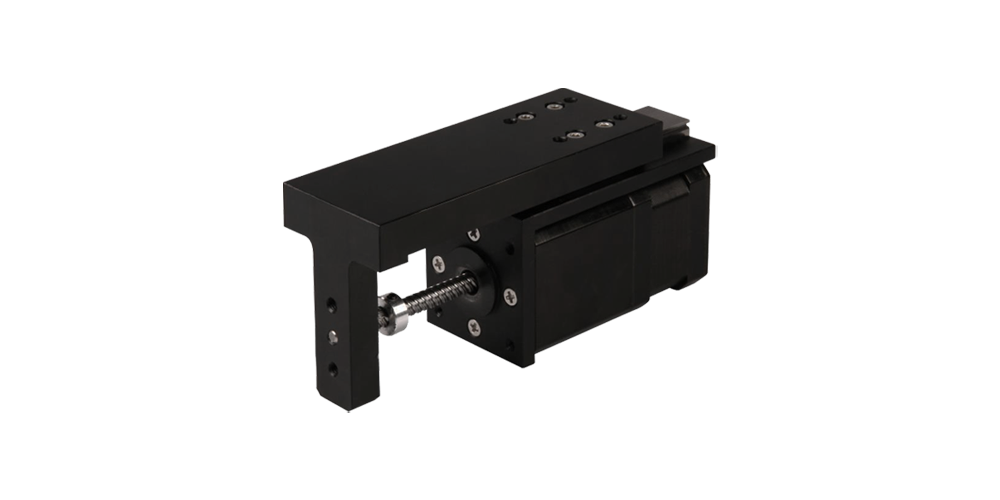

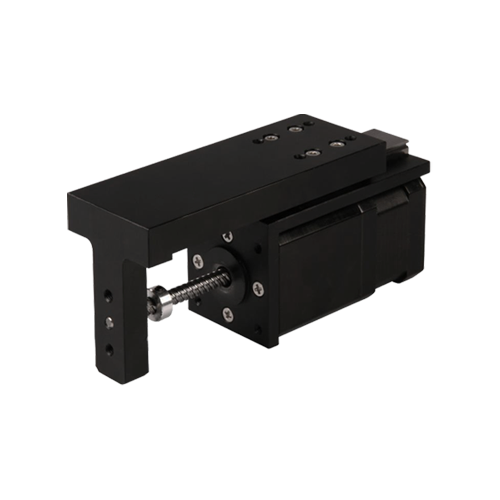

42mm DLG/DRS Electric Slide Ball Screw Linear Actuator
DLG Series is a product that integrates a stepping motor and a ball screw with a guide to achieve precise linear motion.With guide supported, DLG series enables reduction of mechanical components such···
Motor Characteristics
| Model No. | Rated Voltage[V] | Current[A] | Resistance[Ω] | Inductance[mH] | Lead Wire No. | Motor Length "L"[mm] |
|---|---|---|---|---|---|---|
| DLG42S1 | 3.8 | 1 | 3.8 | 5 | 4 | 34.1 |
| DLG42S15 | 2.78 | 1.5 | 1.85 | 2.2 | 4 | 34.1 |
| DLG42D12 | 4.56 | 1.2 | 3.8 | 8 | 4 | 48.1 |
| DLG42D25 | 2.5 | 2.5 | 1 | 1.8 | 4 | 48.1 |
Actuator Characteristics
| Stroke | 40mm/70mm |
|---|---|
| Maximum Thrust | 100N |
| Repeat Positioning Accuracy | 0.01mm |
| Optional Ball Screw Lead | 1mm/2mm/6mm/10mm |

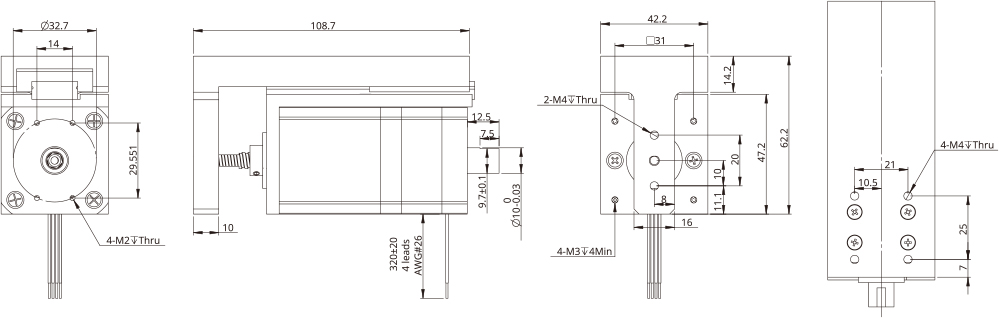

Dimensional Drawings
Speed Thrust Curves

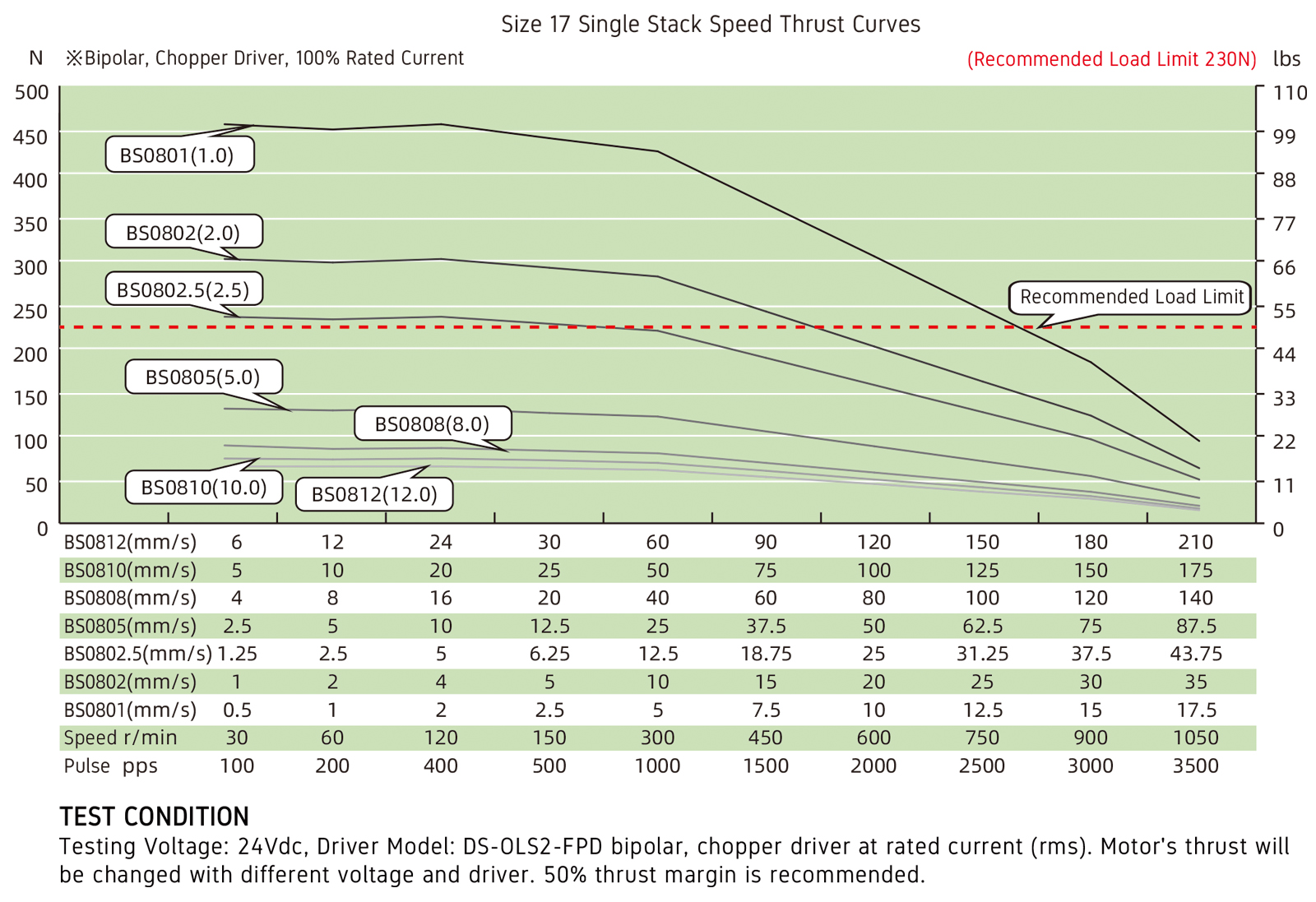

Single Stack

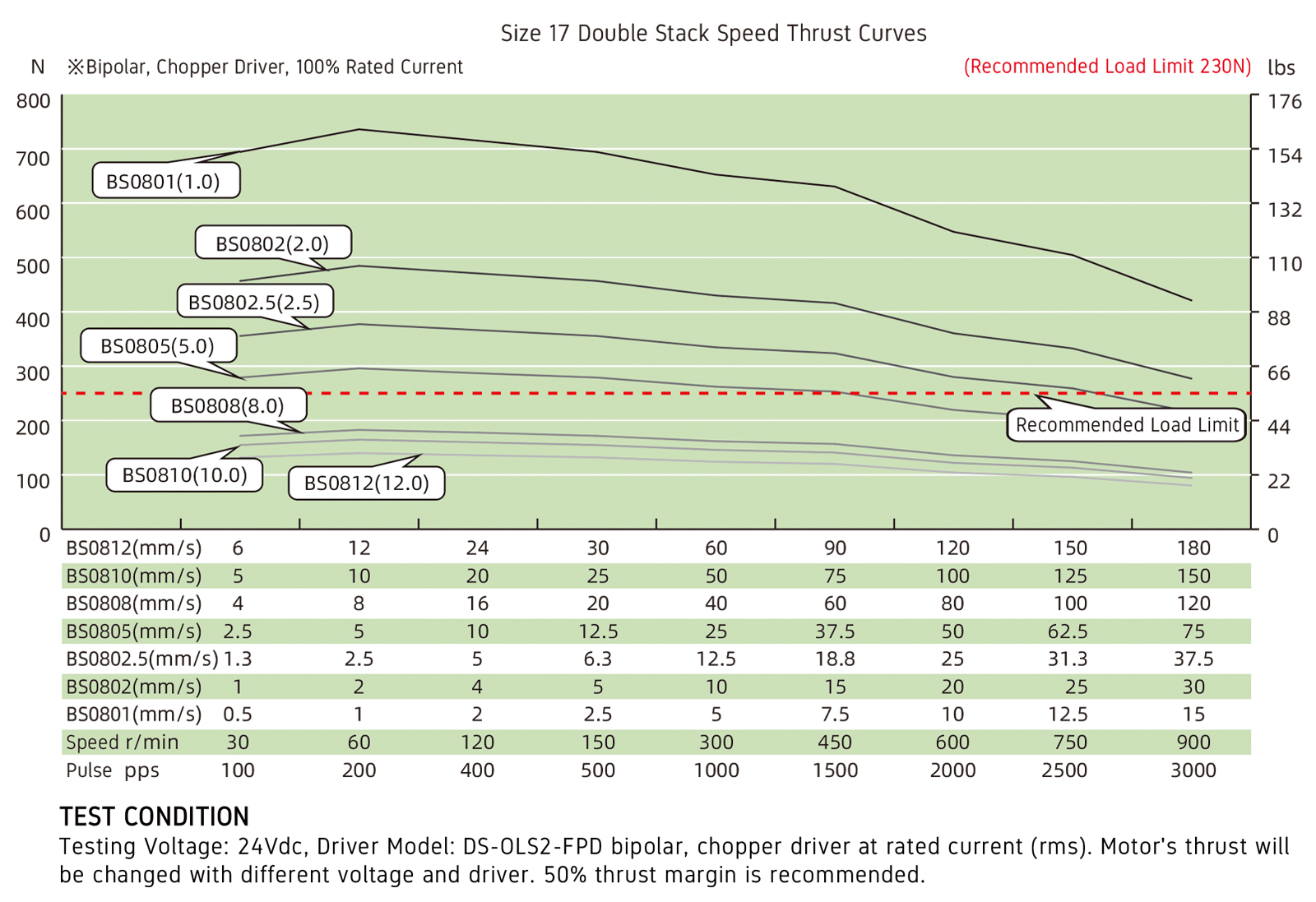

Double Stack
Options

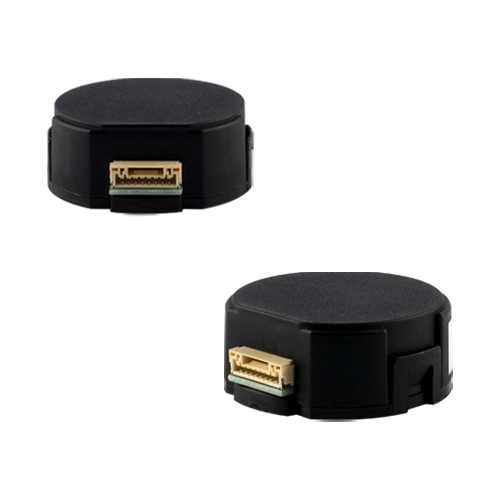

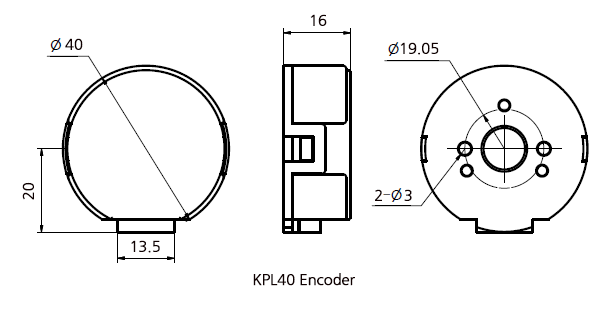

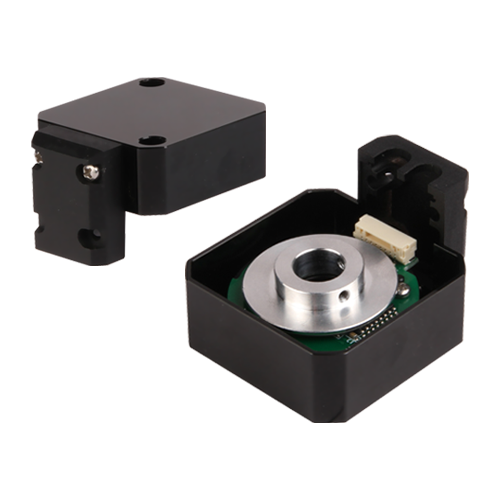

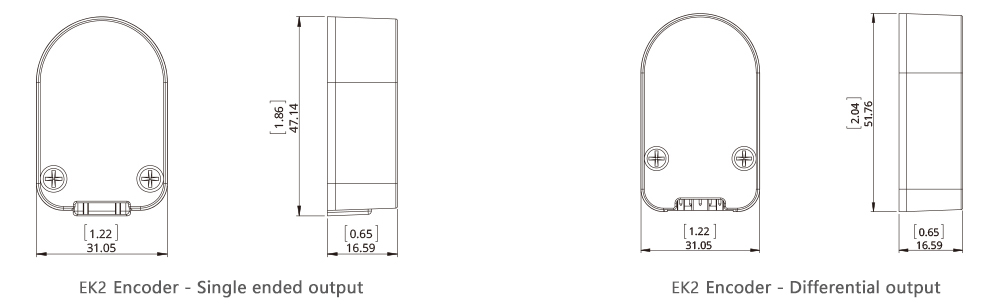

Encoder Option
Resolution(CPR) 50 100 192 200 250 256 360 400 500 Single ended output 0 1 2 3 4 5 6 7 8 Differential output A B C D E F G H I Resolution(CPR) 720 900 1000 1250 2000 2500 4000 5000 Single ended output 9 10 11 12 Differential output J K L M N O P Q
Resolution(CPR) 625 800 1000 1250 1600 2000 2500 3200 4000 Single ended output - - - - - - - - - Differential output - C - - - - - -
Resolution(CPR) 400 800 1000 1250 1600 2000 2500 3200 4000 Single ended output 0 2 3 4 5 6 7 8 9 Differential output A C D E F G H I J Power-Off Brake

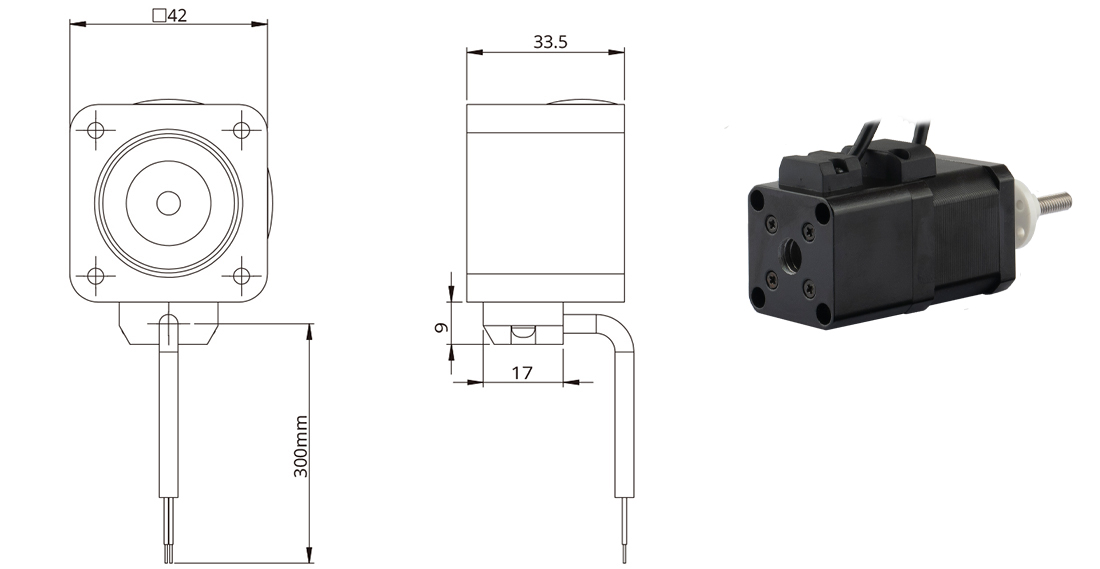

Power Off Brake 0.5N·m [Available For Size 17 Motor]
Parameter
1. Rated Voltage : DC24V +/- 5%
2. Resistance : 297Ω +/- 5%
3. Power consumption : 2W
4. Hold Torque : >0.5N·m
5. Insulation Class B
6. Insulation Resistance : >100Mohm (DC500V)
7. Dielectrical Strength : 1000 VAC for 1 second
8. Retraction time : 50ms
9. Release time : 30ms
10. Gyration gap : <1°
11. Emergency brake time : > 200 times
12. Lifetime : > 2,000,000 times
13. Noise Level : <60db
