80PMB800K/80ZYT140
80mm OD Planetary Gearbox.Permissible Load Range:8N.m~80N.m
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated torque N.m | Output power W | Rated current A | Stall torque N.m | Stall current A |
80ZYT140-2436 | 24 | 3600 | 2.4 | 2900 | 0.8 | 243 | 20 | 4.8 | 35 |
Gear Motor Technical Data
80ZYT140-2436 DC Motor
Reduction ratio | 3.55 | 5.31 | 6.6 | 13 | 19 | 23 | 26 | 30 | 37 | 50 | 74 | 92 | 111 | 138 |
Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 |
Length(L) | 44.0 | 44.0 | 44.0 | 59.4 | 59.4 | 59.4 | 59.4 | 59.4 | 59.4 | 74.8 | 74.8 | 74.8 | 74.8 | 74.8 |
No-load speed r/min | 1014 | 678 | 545 | 277 | 189 | 157 | 138 | 120 | 97 | 72 | 49 | 39 | 32 | 26 |
Rated speed r/min | 817 | 546 | 439 | 223 | 153 | 126 | 112 | 97 | 78 | 58 | 39 | 32 | 26 | 21 |
Rated torque N.m | 2.6 | 3.8 | 4.8 | 8.4 | 12 | 15 | 17 | 19 | 24 | 29 | 43 | 54 | 65 | 81 |
N.m Max.permissible load in a short time | 30 | 30 | 30 | 40 | 55 | 70 | 90 | 90 | 90 | 120 | 120 | 120 | 120 | 120 |

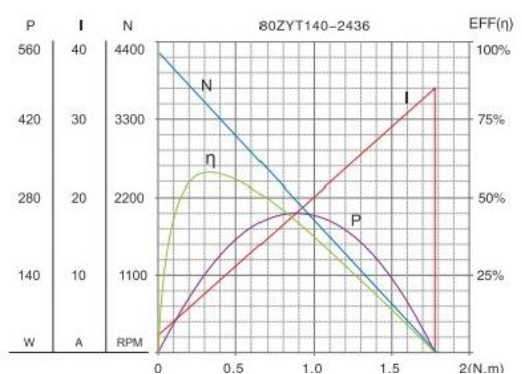

Motor Characteristic Figure

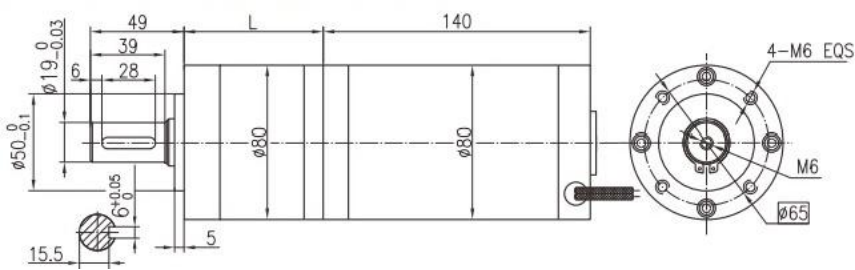

Dimensions
