30JNB30K/28ZY47PG

30mm OD Planetary Gearbox.Permissible Load Range: 0.5N.m~5.0N.m

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

Rated

speed

r/min

Rated

torque

mN.m

Output

power

Rated

current

Stall

torque

mN.m

Stall

current

28ZY47PG- 1280

8000

270

6700

14.7

10.3

1.30

101

7.4

28ZY47PG-2480

8000

170

6800

15.7

11.2

0.67

117

4.3

Gear Motor Technical Data

28ZY47PG-1280 DC Motor

Reduction ratio	3.7	5.2	14	19	27	35	51	71	100	139	189	264	354	495
Number of gear trains	1	1	2	2	2	2	3	3	3	3	4	4	4	4
Length(L) mm	26.9	26.9	33.8	33.8	33.8	33.8	40.7	40.7	40.7	40.7	47.6	47.6	47.6	47.6
No-load speed r/min	2156	1544	571	421	296	229	157	113	80	58	42	30	23	16
Rated speed r/min	1806	1293	479	353	248	191	131	94	67	48	35	25	19	14
Rated torque N.m	0.049	0.069	0.17	0.23	0.32	0.42	0.55	0.76	1.1	1.5	1.8	2.5	3	3
N.m Max. permissible load in a short time	0.6	0.6	2.5	2.5	2.5	2.5	5	5	5	5	3	6	6	6

28ZY47PG-2480 DC Motor

Reduction ratio	3.7	5.2	14	19	27	35	51	71	100	139	189	264	354	495
Number of gear trains	1	1	2	2	2	2	3	3	3	3	4	4	4	4
Length(L) mm	26.9	26.9	33.8	33.8	33.8	33.8	40.7	40.7	40.7	40.7	47.6	47.6	47.6	47.6
No-load speed r/min	2156	1544	571	421	296	229	157	113	80	58	42	30	23	16
Rated speed r/min	1833	1313	486	358	252	194	133	96	68	49	36	26	19	14
Rated torque N.m	0.052	0.073	0.18	0.24	0.34	0.45	0.58	0.81	1.1	1.6	1.9	2.7	3	3
N.m Max. permissible load in a short time	0.6	0.6	2.5	2.5	2.5	2.5	5	5	5	5	3	6	6	6

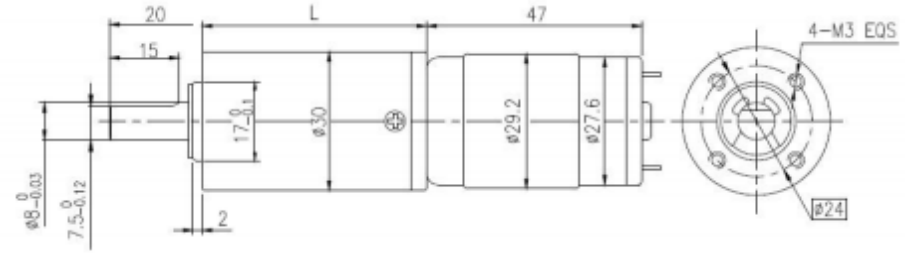

Dimensions

28ZY47PG dc planetary Gear motor adopts high performance magnetic steel, large output torque.
