60JXE450K/78ZY112
60mm OD Planetary Gearbox.Permissible Load Range: 4N.m~45N.m
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated torque N.m | Output power W | Rated current A | Stall torque N.m | Stall current A |
78ZY112-2429 | 24 | 2900 | 0.55 | 2150 | 0.42 | 94 | 6.7 | 1.7 | 22 |
Gear Motor Technical Data
78ZY112-2429 DC Motor
Reducin rtio | 3.6 | 4.25 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 | 154 | 187 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 |
Length(L) mm | 40.3 | 40.3 | 53.8 | 53.8 | 53.8 | 53.8 | 53.8 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 80.6 | 80.6 |
No-load speed r/min | 806 | 682 | 223 | 193 | 161 | 126 | 104 | 67 | 56 | 48 | 40 | 30 | 24 | 19 | 16 |
Rated speed r/min | 597 | 506 | 165 | 143 | 119 | 93 | 77 | 50 | 41 | 30 | 25 | 22 | 18 | 14 | 11 |
Rated torque N.m | 1.4 | 1.6 | 4.4 | 5.1 | 6.1 | 7.8 | 9.5 | 13 | 16 | 19 | 22 | 29 | 37 | 42 | 45 |
N.m Max. permissible load in a short time | 12 | 12 | 50 | 50 | 50 | 50 | 50 | 100 | 100 | 100 | 100 | 100 | 100 | 110 | 110 |

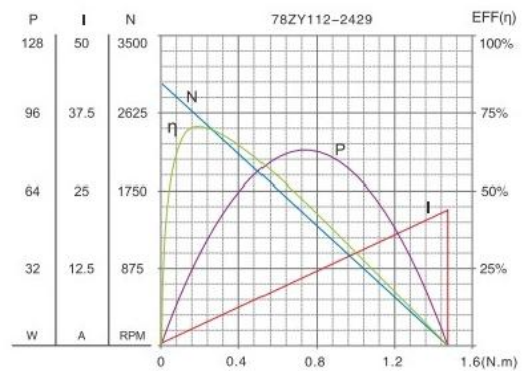

Motor Characteristic Figure

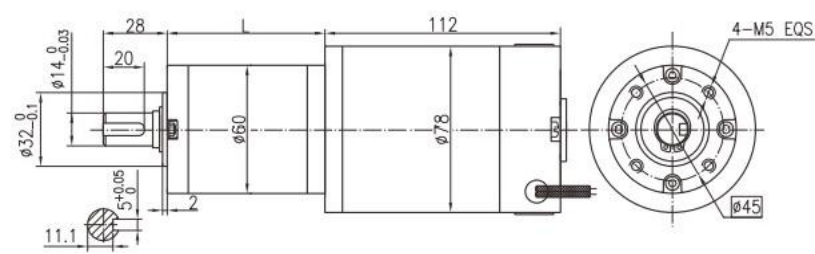

Dimensions
