CHINA MS TECHNOLOGY CO., LTD. (MS MOTOR CO.,LTD.)
60JX300K/60ZY105

60mm OD Plane tary Gearbox.Permissible Load Range: 2N.m~30N.m

Motor Technical Data

Type

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

A

Rated

speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

current

A

Stall

torque

N.m

Stall

current

A

60ZY105-2420

24

2000

0.32

1600

165

30

1.8

0.76

7.3

60ZY105-


2430

24

3000

0.40

2400

180

45

2.2

0.79

11.2

60ZY105-2450

24

5000

0.55

4000

230

90

6.0

0.92

15.5

Gear Motor Technical Data

60ZY105-2420 DC Motor

Reduction ratio

3.6

4.25

13

15

18

28

47

55

65

77

96

121

154

187

220

260

307

Number of gear trains

1

1

2

2

2

2

3

3

3

3

3

3

4

4

4

4

4

Length(L)mm

34.5

34.5

45.8

45.8

45.8

45.8

57.1

57.1

57.1

57.1

57.1

57.1

68.4

68.4

68.4

68.4

68.4

No-load speed r/min

556

471

154

133

111

71

43

36

31

26

21

17

13

11

9.1

7.7

6.5

Rated speed    rmin

444

376

123

107

89

57

34

29

25

21

17

13

11

8.6

7.3

6.2

5.2

Rated torque    N.m

0.53

0.63

1.7

2.0

2.4

3.7

5.7

6.6

7.8

9.2

12

15

16

20

24

28

30

N.m

Max. permissible load in a short time

6

6

36

36

36

36

72

72

72

72

72

72

90

90

90

90

90

60ZY105-2430 DC Motor

Reduction ratio

3.6

4.25

13

15

18

28

47

55

65

77

96

121

154

187

220

260

307

Number of gear trains

1

1

2

2

2

2

3

3

3

3

3

3

4

4

4

4

4

Length(L) mm

34.5

34.5

45.8

45.8

45.8

45.8

57.1

57.1

57.1

57.1

57.1

57.1

68.4

68.4

68.4

68.4

68.4

No-load speed r/min

833

706

231

200

167

107

64

55

46

39

31

25

20

16

14

12

9.8

Rated speed    r/min

667

565

185

160

133

86

51

44

37

32

25

20

16

13

11

9.2

7.8

Rated torque    N.m

0.58

0.69

1.9

2.2

2.6

4.1

6.2

7.2

8.5

10

13

16

18

22

26

30

30

N.m

Max. permissible load in a short time

6

6

36

36

36

36

72

72

72

72

72

72

90

90

90

90

90

60ZY105-2450 DC Motor

Reduction ratio

3.6

4.25

13

15

18

28

47

55

65

77

96

121

154

187

220

260

Number of gear trains

1

1

2

2

2

2

3

3

3

3

3

3

4

4

4

4

Length(L)  mm

34.5

34.5

45.8

45.8

45.8

45.8

57.1

57.1

57.1

57.1

57.1

57.1

68.4

68.4

68.4

68.4

No-load speed r/min

1389

1176

385

333

278

179

106

91

77

66

52

41

33

27

23

19

Rated speed    r/min

1111

941

308

267

222

143

85

73

62

53

42

33

26

21

18

15

Bated torque  N.m

0.75

0.88

2.4

2.8

3.4

5.2

7.9

9.2

11

13

16

20

23

28

30

30

N.m

Max. permissible load in a short time

6

6

36

36

36

36

72

72

72

72

72

72

90

90

90

90

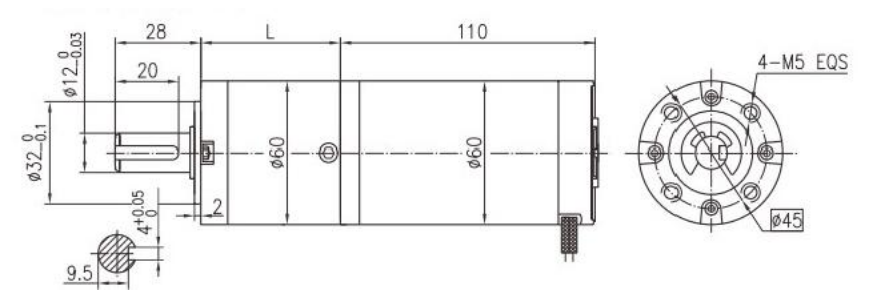

Dimensions
