52JX300K/52ZY95-China MS Technology Co., ltd.(MS MOTOR)

52JX300K/52ZY95

52mm OD Plane tary Gearbox.Permissible Load Range: 2N.m~30N.m

Motor Technical Data

Type

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

Rated

speed

r/min

Rated

torque

N.m

Output

power

Rated

current

Stall

torque

N.m

Stall

current

52ZY95-2430

3000

0.45

2300

0.12

1.9

0.54

9.3

52ZY95-2440

4000

0.48

3400

0.11

2.7

0.73

12.3

Gear Motor Technical Data

52ZY95-2430 DC Motor

Reduction ratio	3.6	4.25	13	15	18	23	47	55	65	77	96	121	154	187	220	260	307
Number of gear trains	1	1	2	2	2	2	3	3	3	3	3	3	4	4	4	4	4
Length(L) mm	45.7	45.7	57.2	57.2	57.2	57.2	68.5	68.5	68.5	68.5	68.5	68.5	79.8	79.8	79.8	79.8	79.8
No-load speed r/min	833	706	231	200	167	130	64	55	46	39	31	25	20	16	14	12	9.8
Rated speed r/min	639	541	177	153	128	100	49	42	35	30	24	19	15	12	11	8.8	7.5
Rated torque N.m	0.39	0.46	1.4	1.6	1.7	2.2	4.6	5.3	5.7	6.7	8.4	11	13	16	17	20	24
N.m Max. permissible load in a short time	6	6	36	36	36	36	72	72	72	72	72	72	90	90	90	90	90

52ZY95-2440 DC Motor

Reduction ratio	3.6	4.25	13	15	18	23	47	55	65	77	96	121	154	187	220	260	307
Number of gear trains	1	1	2	2	2	2	3	3	3	3	3	3	4	4	4	4	4
Length(L) mm	45.7	45.7	57.2	57.2	57.2	57.2	68.5	68.5	68.5	68.5	68.5	68.5	79.8	79.8	79.8	79.8	79.8
No-load speed r/min	1111	941	308	267	222	174	85	73	62	52	42	33	26	21	18	15	13
Rated speed r/min	944	800	262	227	189	148	72	62	52	44	35	28	22	18	16	13	11
Rated torque N.m	0.36	0.42	1.3	1.5	1.6	2.0	4.2	4.9	5.2	6.2	7.7	9.7	12	15	16	19	22
N.m Max. permissible load in a short time	6	6	36	36	36	36	72	72	72	72	72	72	90	90	90	90	90

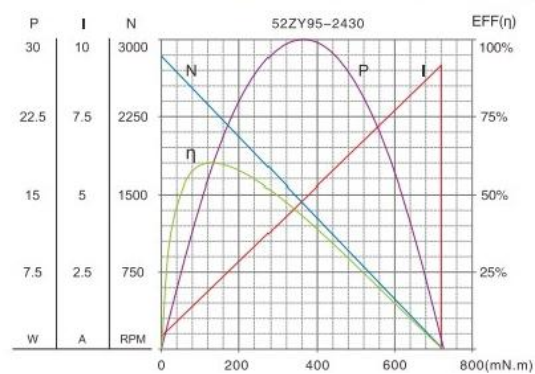

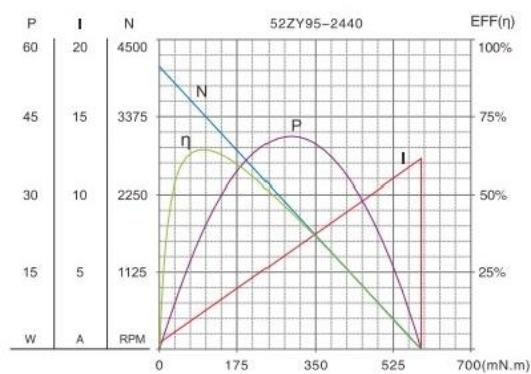

Motor Characteristic Figure

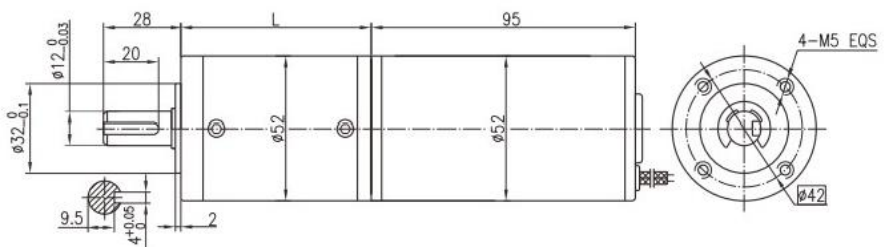

Dimensions
