52mm OD Planetary Gearbox.Permissible Load Range: 2N.m~30N.m
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Bated torque mN.m | Output power W | Rated current A | Stall torque N.m | Stall current A |
52ZY80- 2430 | 24 | 3000 | 0.35 | 2300 | 75 | 18 | 1.5 | 0.320 | 6.0 |
52ZY80- 2440 | 24 | 4000 | 0.42 | 3200 | 80 | 27 | 2.0 | 0.446 | 7.5 |
Gear Motor Technical Data
52ZY80-2430 DC Motor
Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 47 | 55 | 65 | 77 | 168 | 198 | 234 | 276 | 326 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 45.7 | 45.7 | 57.2 | 57.2 | 57.2 | 68.5 | 68.5 | 68.5 | 68.5 | 79.8 | 79.8 | 79.8 | 79.8 | 79.8 |
No-load speed r/min | 833 | 706 | 231 | 200 | 167 | 64 | 55 | 46 | 39 | 18 | 15 | 13 | 11 | 9.2 |
Rated speed r/min | 639 | 541 | 177 | 153 | 128 | 49 | 42 | 35 | 30 | 14 | 12 | 9.8 | 8.3 | 7.1 |
Rated torque N.m | 0.24 | 0.29 | 0.79 | 0.91 | 1.1 | 2.6 | 3.0 | 3.6 | 4.2 | 8.2 | 10 | 11 | 13 | 16 |
N.m Max. permissible load in a short time | 6 | 6 | 25 | 25 | 25 | 50 | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 |
52ZY80-2440 DC Motor
Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 47 | 55 | 65 | 77 | 168 | 198 | 234 | 276 | 326 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 45.7 | 45.7 | 57.2 | 57.2 | 57.2 | 68.5 | 68.5 | 68.5 | 68.5 | 79.8 | 79.8 | 79.8 | 79.8 | 79.8 |
No-load speedr/min | 1111 | 941 | 308 | 267 | 222 | 85 | 73 | 62 | 52 | 24 | 20 | 17 | 15 | 12 |
Rated speed r/min | 889 | 753 | 246 | 213 | 178 | 68 | 58 | 49 | 42 | 19 | 16 | 14 | 12 | 9.8 |
Rated torque N.m | 0.26 | 0.31 | 0.84 | 1.0 | 1.2 | 2.7 | 3.2 | 3.8 | 4.5 | 8.7 | 10 | 12 | 14 | 17 |
N.m Max. permissible load in a short time | 6 | 6 | 25 | 25 | 25 | 50 | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 |

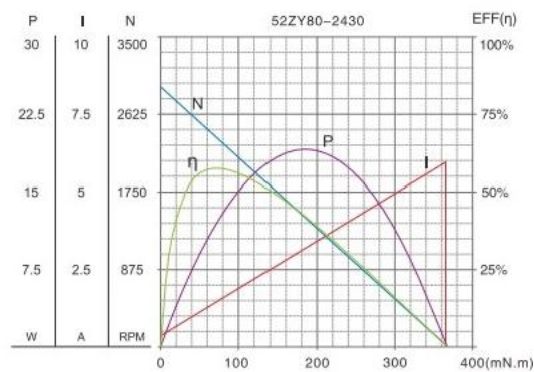

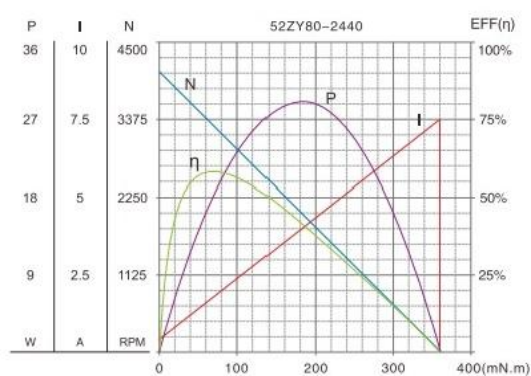

Motor Characteristic Figure

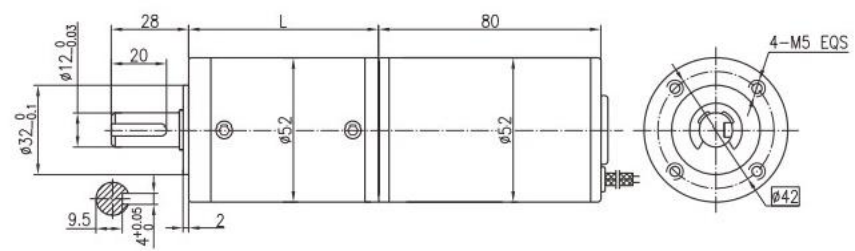

Dimensions
