38mm OD Planetary Gearbox.Permissible Load Range: 0.8N.m~8.0N.m
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Bated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
36ZY65P- 1262 | 12 | 6200 | 600 | 5000 | 44 | 23 | 3.0 | 132 | 9 |
36ZY65P-2462 | 24 | 6200 | 300 | 5000 | 46 | 24 | 1.5 | 138 | 4.5 |
Gear Motor Technical Data
36ZY65P-1262 Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 22 | 27 | 49 | 59 | 71 | 82 | 95 | 115 | 139 | 181 | 218 | 253 | 305 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
Length(L) mm | 33.0 | 33.0 | 41.4 | 41.4 | 41.4 | 41.4 | 49.8 | 49.8 | 49.8 | 49.8 | 49.8 | 49.8 | 49.8 | 60.2 | 60.2 | 60.2 | 60.2 |
No-load speed r/min | 1671 | 1197 | 443 | 326 | 282 | 230 | 127 | 105 | 87 | 76 | 65 | 54 | 45 | 34 | 28 | 25 | 20 |
Rated speed r/min | 1347 | 965 | 357 | 263 | 227 | 185 | 102 | 85 | 70 | 61 | 53 | 43 | 36 | 28 | 23 | 20 | 16 |
Rated torque N.m | 0.15 | 0.21 | 0.50 | 0.68 | 0.78 | 0.96 | 1.6 | 1.9 | 2.3 | 2.6 | 3.1 | 3.7 | 4.5 | 5.2 | 6.2 | 7.2 | 8 |
N.m Max. permissible load in a short time | 1.5 | 1.5 | 6 | 6 | 6 | 6 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 |
36ZY65P-2462 Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 22 | 27 | 49 | 59 | 71 | 82 | 95 | 115 | 139 | 181 | 218 | 253 | 305 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
Length(L) mm | 33.0 | 33.0 | 41.4 | 41.4 | 41.4 | 41.4 | 49.8 | 49.8 | 49.8 | 49.8 | 49.8 | 49.8 | 49.8 | 60.2 | 60.2 | 60.2 | 60.2 |
No-load speed r/min | 1671 | 1197 | 443 | 326 | 282 | 230 | 127 | 105 | 87 | 76 | 65 | 54 | 45 | 34 | 28 | 25 | 20 |
Rated speed r/min | 1347 | 965 | 357 | 263 | 227 | 185 | 102 | 85 | 70 | 61 | 53 | 43 | 36 | 28 | 23 | 20 | 16 |
Rated torque N.m | 0.15 | 0.21 | 0.52 | 0.71 | 0.82 | 1.0 | 1.6 | 2.0 | 2.4 | 2.8 | 3.2 | 3.9 | 4.7 | 5.4 | 6.5 | 7.6 | 8 |
N.m Max. permissible load in a short time | 1.5 | 1.5 | 6 | 6 | 6 | 6 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 |

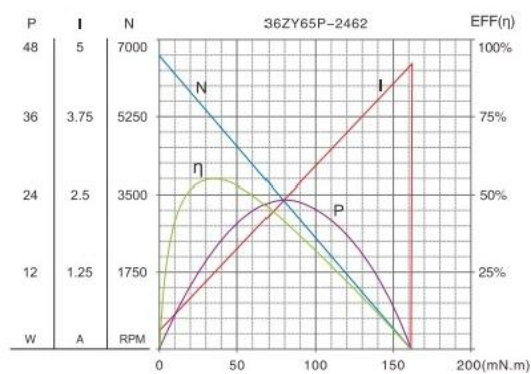

Motor Characteristic Figure

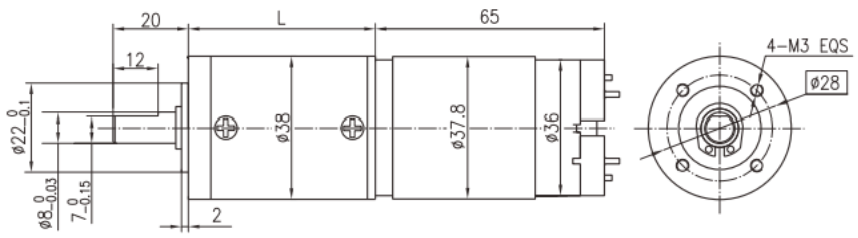

Dimensions
The gear modulus of'38JN80K'gearbox is 0.6, Enhanced gearbox.
