CHINA MS TECHNOLOGY CO., LTD. (MS MOTOR CO.,LTD.)
32JXB30K/28ZY47P-2

32mm OD Planetary Gearbox. Permissible Load Range: 0.3N.m~3.0N.m

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

mA

Rated

speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

current

mA

Stall

torque

mN.m

Stall

current

A

28ZY47P- 1273

12

7300

150

5950

10.8

6.7

900

32

2.7

28ZY47P-2473

24

7300

85

6160

12.7

8.2

500

38

1.5

Gear Motor Technical Data

28ZY47P-1273 DC Motor

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)         mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed   r/min

1968

1409

521

384

270

209

143

103

73

53

39

29

21

15

12

Rated speed    r/min

1604

1149

425

313

220

170

117

84

60

43

31

23

17

12

10

Rated torque    N.m

0.036

0.050

0.12

0.17

0.24

0.31

0.40

0.56

0.79

1.1

1.3

1.8

2.5

3

3

N.m  Max. permissible   load in a short time

1.0

1.0

3.5

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

28ZY47P-2473 DC Motor

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)         mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed   r/min

1968

1409

521

384

270

209

143

103

73

53

39

29

21

15

12

Rated speed    r/min

1660

1189

440

324

228

176

121

87

62

44

33

24

17

12

10

Rated torque    N.m

0.042

0.059

0.14

0.20

0.28

0.36

0.47

0.66

0.93

1.3

1.6

2.1

2.9

3

3

N.m  Max. permissible   load in a short time

1.0

1.0

3.5

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

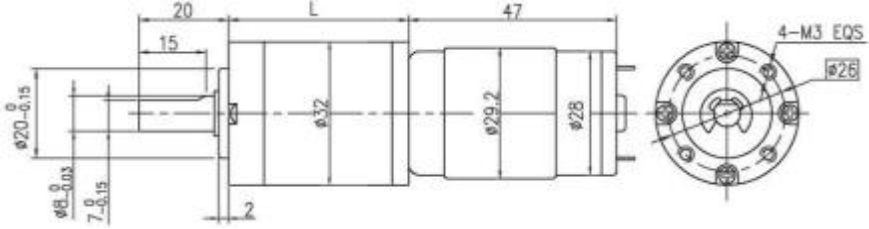

Dimensions


Standard output shaft OD 6mm, OD 8mm optional.
