28JXF10K/28ZY38

28mm OD Plane tary Gearbox.Permissible Load Range: 0.1N.m~1.0N.m

Motor Technical Data

Gear Motor Technical Data

28ZY38-1240 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	22.6	22.6	29.2	29.2	29.2	35.6	35.6	35.6	35.6	42.0	42.0	42.0
No-load speed r/min	1078	772	286	211	148	78	56	40	29	21	15	11
Rated speed r/min	701	502	186	137	96	51	37	26	19	14	10	7
Rated torque N.m	0.023	0.033	0.079	0.11	0.15	0.26	0.36	0.51	0.71	0.86	1.0	1.0
N.m Max. permissible load in a short time	0.3	0.3	1.2	1.2	1.2	2.4	2.4	2.4	2.4	3.0	3.0	3.0

28ZY38-1250 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	22.6	22.6	29.2	29.2	29.2	35.6	35.6	35.6	35.6	42.0	42.0	42.0
No-load speed r/min	1348	965	357	263	185	98	70	50	36	26	19	14
Rated speed r/min	930	666	246	182	128	68	49	35	25	18	13	9.3
Bated torque N.m	0.023	0.033	0.079	0.11	0.15	0.26	0.36	0.51	0.71	0.86	1.0	1.0
N.m Max. permissible load in a short time	0.3	0.3	1.2	1.2	1.2	2.4	2.4	2.4	2.4	3.0	3.0	3.0

28ZY38-2450 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	22.6	22.6	29.2	29.2	29.2	35.6	35.6	35.6	35.6	42.0	42.0	42.0
No-load speedr/min	1348	965	357	263	185	98	70	50	36	26	19	14
Rated speed r/min	1078	772	286	211	148	78	56	40	29	21	15	11
Bated torque N.m	0.023	0.032	0.078	0.11	0.15	0.26	0.36	0.50	0.70	0.85	1.0	1.0
N.m Max. permissible load in a short time	0.3	0.3	1.2	1.2	1.2	2.4	2.4	2.4	2.4	3.0	3.0	3.0

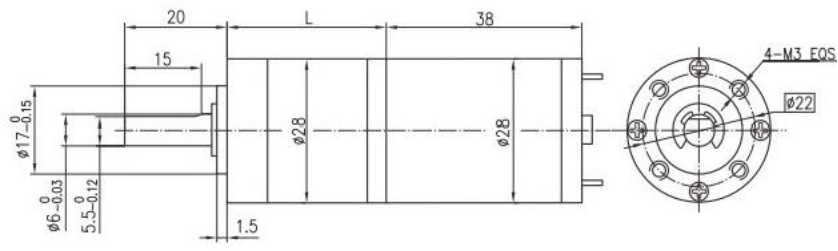

Dimensions
