24JNB20K/24ZY30-2

24mm OD Planetary Gearbox. Permissible Load Range: 0.2N.m~2.0N.m

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

mA

Rated

speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

current

mA

Stall

torque

mN.m

Stall

current

A

24ZY30- 1280

12

8000

80

6500

3

2.0

300

16

1.2

24ZY30- 12100

12

10000

100

7700

4

3.1

420

16

1.6

24ZY30-24120

24

12000

140

9000

3.5

3.2

300

19

1.2


Gear motor Technical Data

24ZY30-1280 DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

516

721

977

1367

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

5

5

Length(L)         mm

23.3

23.3

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

44.2

44.2

No-load speed   r/min

2156

1544

571

421

296

157

113

80

58

42

32

22

16

11

8.2

5.9

Rated speed    r/min

1752

1255

464

342

241

127

92

65

47

34

26

18

13

9.0

6.7

4.8

Rated torque    N.m

0.010

0.014

0.034

0.046

0.066

0.11

0.16

0.22

0.30

0.37

0.48

0.72

1.0

1.4

1.7

2

N.m    Max. permissible load in a short time

0.6

0.6

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

6.0

6.0


24ZY30-12100 DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

516

721

977

1367

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

5

5

Length(L)         mm

23.3

23.3

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

44.2

44.2

No-load speed   r/min

2695

1931

714

526

370

196

141

100

72

53

40

27

19

14

10

7.3

Rated speed    r/min

2075

1486

550

405

285

151

108

77

55

41

31

21

15

11

7.9

5.6

Rated torque    N.m

0.013

0.019

0.045

0.062

0.087

0.15

0.21

0.29

0.41

0.49

0.64

0.96

1.3

1.9

2

2

N.m    Max. permissible load in a short time

0.6

0.6

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

6.0

6.0


24ZY30-24120 DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

516

721

977

1367

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

5

5

Length(L)         mm

23.3

23.3

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

44.2

44.2

No-load speed   r/min

3235

2317

857

632

444

235

169

120

86

63

49

33

23

17

12

8.8

Rated speed    r/min

2426

1737

643

474

333

176

127

90

65

48

36

24

17

13

9.2

6.6

Rated torque    N.m

0.012

0.016

0.040

0.054

0.077

0.13

0.18

0.26

0.36

0.43

0.56

0.84

1.2

1.6

2

2

N.m    Max. permissible load in a short time

0.6

0.6

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

6.0

6.0

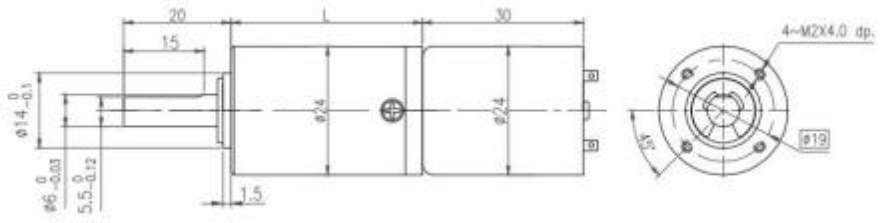

Dimensions
