24JNB20K/24ZY30-1

24mm OD Planetary Gearbox.Permissible Load Range: 0.2N.m~2.0N.m

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

mA

Rated

speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

current

mA

Stall

torque

mN.m

Stall

current

A

24ZY30- 1230

12

3000

40

2400

2

0.5

90

10

0.3

24ZY30- 1245

12

4500

60

3600

2.5

0.9

170

12.5

0.5

24ZY30- 1260

12

6000

70

4800

3

1.5

240

15

1.0


Gear motor Technical Data

24ZY30-1230 DC Motor

Reduction ratio

14

19

27

51

71

100

139

189

264

369

516

721

977

1367

1911

Number of gear trains

2

2

2

3

3

3

3

4

4

4

4

4

5

5

5

Length(L)         mm

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

44.2

44.2

44.2

No-load speed   r/min

214

158

111

59

42

30

22

16

12

8.1

5.8

4.2

3.1

2.2

1.6

Rated speed    r/min

171

126

89

47

34

24

17

13

9.7

6.5

4.7

3.3

2.5

1.8

1.3

Rated torque    N.m

0.023

0.031

0.004

0.074

0.10

0.15

0.20

0.25

0.32

0.48

0.67

0.94

1.2

1.6

2

N.m  Max. permissible load in a short time

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0


24ZY30-1245 DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

516

721

977

1367

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

5

5

Length(L)         mm

23.3

23.3

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

44.2

44.2

No-load speed   r/min

1213

839

321

237

167

88

63

45

32

24

18

12

8.7

6.2

4.6

3.3

Rated speed    r/min

970

695

257

189

133

71

51

36

26

19

15

9.8

7.0

5.0

3.7

2.6

Rated torque    N.m

0.008

0.012

0.028

0.038

0.055

0.093

0.13

0.18

0.25

0.31

0.40

0.60

0.84

1.2

1.4

2

N.m    Max. permissible load in a short time

0.6

0.6

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

6.0

6.0


24ZY30-1260 DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

516

721

977

1367

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

5

5

Length(L)         mm

23.3

23.3

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

44.2

44.2

No-load speed   r/min

1617

158

429

316

222

118

85

60

43

32

24

16

12

8.3

6.1

4.4

Rated speed    r/min

1294

927

343

253

178

94

68

48

35

25

19

13

9.3

6.7

4.9

3.5

Rated torque    N.m

0.010

0.014

0.034

0.046

0.066

0.11

0.16

0.22

0.30

0.37

0.48

0.72

1.0

1.4

1.7

2

N.m    Max. permissible load in a short time

0.6

0.6

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

6.0

6.0

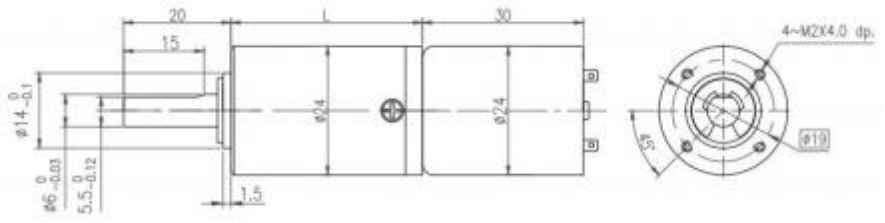

Dimensions
