22mm OD Plane tary Gearbox.Permissible Load Range: 0.03N.m~0.3N.m
Motor Technical Data
Type | Rated vol tage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output Power
W | Rated Current
mA | Stall Torque mN.m | Stall current A |
20ZY32-1280 | 12 | 8000 | 70 | 6700 | 2.2 | 1.5 | 200 | 13.9 | 1.07 |
20ZY32-2480 | 24 | 8000 | 40 | 6700 | 2.3 | 1.6 | 110 | 15.0 | 0.58 |
Gear Motor Technical Data
20ZY32-1280 DC Motor
Reduction ratio | 4 | 4.75 | 16 | 19 | 22 | 64 | 76 | 90 | 107 | 256 | 304 | 364 | 429 | 509 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 13.0 | 13.0 | 16.7 | 16.7 | 16.7 | 20.4 | 20.4 | 20.4 | 20.4 | 24.1 | 24.1 | 24.1 | 24.1 | 24.1 |
No-load speed r/min | 2000 | 1684 | 500 | 421 | 364 | 125 | 105 | 89 | 75 | 31 | 26 | 22 | 19 | 16 |
Rated speed r/min | 1675 | 1411 | 419 | 353 | 305 | 105 | 88 | 74 | 63 | 26 | 22 | 18 | 16 | 13 |
Rated torque N.m | 0.008 | 0.009 | 0.029 | 0.034 | 0.039 | 0.10 | 0.12 | 0.14 | 0.17 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
N.m Max. permissible load in a short time | 0.09 | 0.09 | 0.45 | 0.45 | 0.45 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.9 | 0.9 | 0.9 | 0.9 |
20ZY32-2480 DC Motor
Reduction ratio | 4 | 4.75 | 16 | 19 | 22 | 64 | 76 | 90 | 107 | 256 | 304 | 364 | 429 | 509 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 13.0 | 13.0 | 16.7 | 16.7 | 16.7 | 20.4 | 20.4 | 20.4 | 20.4 | 24.1 | 24.1 | 24.1 | 24.1 | 24.1 |
No-load speedr/min | 2000 | 1684 | 500 | 421 | 364 | 125 | 105 | 89 | 75 | 31 | 26 | 22 | 19 | 16 |
Rated speed r/min | 1675 | 1411 | 419 | 353 | 305 | 105 | 88 | 74 | 63 | 26 | 22 | 18 | 16 | 13 |
Rated torque N.m | 0.008 | 0.010 | 0.030 | 0.035 | 0.041 | 0.11 | 0.13 | 0.15 | 0.18 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
N.m Max. permissible load in a short time | 0.09 | 0.09 | 0.45 | 0.45 | 0.45 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.9 | 0.9 | 0.9 | 0.9 |

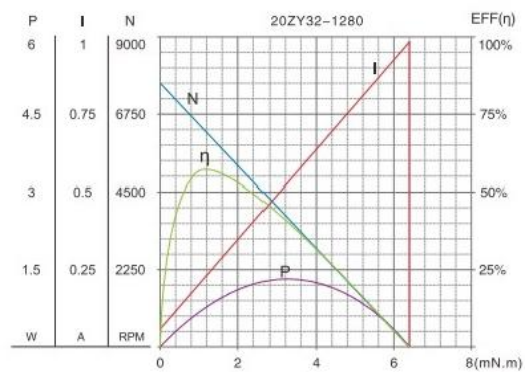

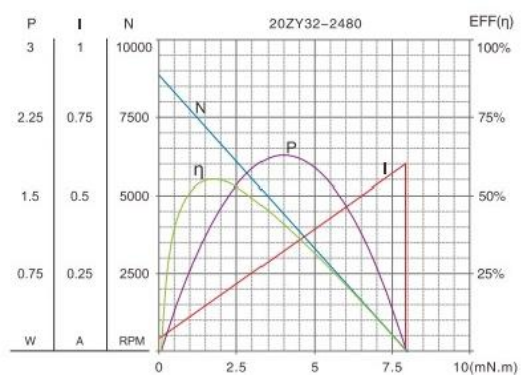

Motor Characteristic Figure

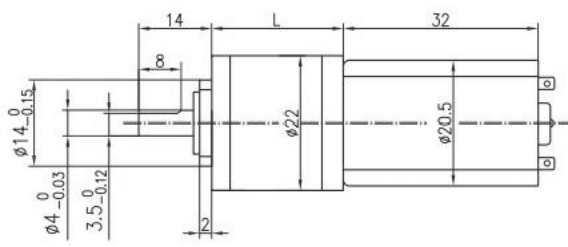

Dimensions
