CHINA MS TECHNOLOGY CO., LTD. (MS MOTOR CO.,LTD.)
22JNB20K/22ZY38G-2

22mm OD Planetary Gearbox.Permissible Load Range: 0.2N.m~2.0N.m

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

mA

Rated

speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

current

mA

Stall

torque

mN.m

Stall

current

A

22ZY38G-2465

24

6500

35

5350

4.3

2.4

0.16

24

0.8

22ZY38G-2485

24

8500

45

7200

4.8

4.0

0.25

31

1.4

22ZY38G-24100

24

10000

55

8750

5.1

5.1

0.31

36

1.8


Gear Motor Technical Data

22ZY38G-2465 DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

516

721

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)           mm

23.3

23.3

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

No-load speed   r/min

1752

1255

464

342

241

127

92

65

47

34

26

18

13

9.0

Rated speed    r/min

1442

1033

382

282

198

105

75

54

38

28

22

15

10

7.4

Rated torque    N.m

0.014

0.020

0.049

0.066

0.094

0.16

0.22

0.31

0.44

0.53

0.69

1.0

1.4

2

N.m    Max. permissible load in a short time

0.6

0.6

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0


22ZY38G-2485 DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

516

721

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)           mm

23.3

23.3

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

No-load speed   r/min

2291

1641

607

447

315

167

120

85

61

45

34

23

17

12

Rated speed    r/min

1941

1390

514

379

267

141

101

72

52

38

29

20

14

10

Rated torque    N.m

0.016

0.022

0.054

0.074

0.11

0.18

0.25

0.35

0.49

0.59

0.77

1.2

1.6

2

N.m  Max. permissible load in a short time

0.6

0.6

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0


22ZY38G-12100 DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

516

721

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)           mm

23.3

23.3

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

No-load speed   r/min

2695

1931

714

526

370

196

141

100

72

53

40

27

19

14

Rated speed    r/min

2318

1689

614

453

319

169

121

86

62

46

35

23

17

12

Rated torque    N.m

0.016

0.024

0.053

0.072

0.10

0.17

0.24

0.34

0.48

0.58

0.75

1.1

1.6

2

N.m  Max. permissible load in a short time

0.6

0.6

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

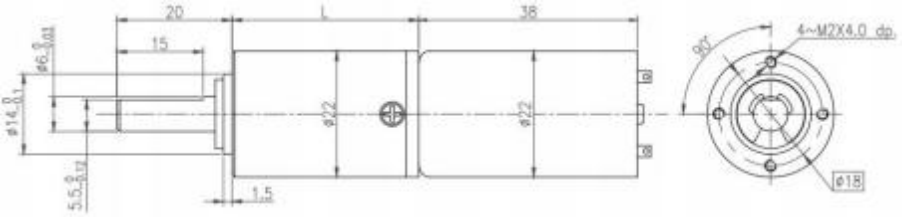

Dimensions
