22JNB20K/22ZY38G-1

22mm OD Planetary Gearbox,.Permissible Load Range: 0.2N.m~2.0N.m.

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

mA

Rated

speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

current

mA

Stall

torque

mN.m

Stall

current

A

22ZY38G- 1245

12

4500

85

3600

3.9

2.3

180

13

0.7

22ZY38G- 1260

12

6000

100

5100

3.6

2.3

290

22

1.5

22ZY38G- 12100

12

10000

150

8600

4.7

4.4

550

30

3.0


Gear Motor Technical Data

22ZY38G-1245 DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

516

721

977

1367

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

5

5

Length(L)           mm

23.3

23.3

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

44.2

44.2

No-load speed   r/min

1213

869

321

237

167

88

63

45

32

24

18

12

8.7

6.2

4.6

3.3

Rated speed    r/min

970

695

257

189

133

71

51

36

26

19

15

9.8

7.0

5.0

3.7

2.6

Rated torque    N.m

0.013

0.018

0.044

0.060

0.085

0.15

0.20

0.28

0.40

0.48

0.63

0.94

1.3

1.8

2

2

N.m    Max. permissible load in a short time

0.6

0.6

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

6.0

6.0


22ZY38G-1260 DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

516

721

977

1367

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

5

5

Length(L)           mm

23.3

23.3

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

43.4

43.4

No-load speed   r/min

1617

1158

429

316

222

118

85

60

43

32

24

16

12

8.3

6.1

4.4

Rated speed    r/min

1375

895

364

268

189

100

72

51

37

27

21

14

9.9

7.1

5.2

3.7

Rated torque    N.m

0.012

0.017

0.041

0.055

0.079

0.13

0.19

0.26

0.37

0.44

0.58

0.86

1.2

1.7

2

2

N.m    Max. permissible load in a short time

0.6

0.6

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

6.0

6.0


22ZY38G-12100 DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

516

721

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)           mm

23.3

23.3

30.7

30.7

30.7

37.1

37.1

37.1

37.1

43.4

43.4

43.4

43.4

43.4

No-load speed   r/min

2695

1927

714

526

370

196

141

100

72

53

40

27

19

14

Rated speed    r/min

2318

1660

614

453

319

169

121

86

62

46

35

23

17

12

Rated torque    N.m

0.016

0.023

0.053

0.072

0.10

0.17

0.24

0.34

0.48

0.56

0.75

1.1

1.6

2

N.m    Max. permissible load in a short time

0.6

0.6

2.4

2.4

2.4

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

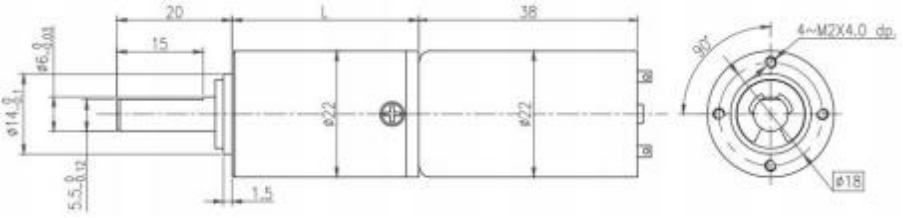

Dimensions
