22JN10K/22ZY38

22mm OD Plane tary Gearbox.Permissible Load Range: 0.1N.m~1.0N.m

Motor Technical Data

Gear Motor Technical Data

22ZY38B-1245 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	24.4	24.4	31.0	31.0	31.0	37.4	37.4	37.4	37.4	43.8	43.8	43.8	43.8	43.8
No-load speed r/min	1213	869	321	237	167	88	63	45	32	24	17	12	8.7	6.2
Rated speed r/min	900	645	239	176	124	65	47	33	24	18	13	9.1	6.5	4.6
Bated torgue N.m	0.010	0.014	0.034	0.046	0.066	0.11	0.16	0.22	0.30	0.37	0.51	0.72	1	1
N.m Max. permissible load in a short time	0.3	0.3	1.2	1.2	1.2	2.5	2.5	2.5	2.5	3	3	3	3	3

22 ZY38B-1260 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	24.4	24.4	31.0	31.0	31.0	37.4	37.4	37.4	37.4	43.8	43.8	43.8	43.8	43.8
No-load speed r/min	1617	1158	429	316	222	118	85	60	43	32	23	16	12	8.3
Rated speed r/min	1348	965	357	263	185	98	70	50	36	26	19	14	9.7	6.9
Rated torque N.m	0.010	0.014	0.034	0.046	0.066	0.11	0.16	0.22	0.30	0.37	0.51	0.72	1	1
N.m Max. permissible load in a short time	0.3	0.3	1.2	1.2	1.2	2.5	2.5	2.5	2.5	3	3	3	3	3

22ZY38B-12100 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	24.4	24.4	31.0	31.0	31.0	37.4	37.4	37.4	37.4	43.8	43.8	43.8	43.8	43.8
No-load speed r/min	2695	1931	714	526	370	196	141	100	72	53	38	27	19	14
Rated speed r/min	2480	1776	621	458	322	171	123	87	63	46	33	24	17	12
Rated torque N.m	0.010	0.014	0.034	0.046	0.066	0.11	0.16	0.22	0.30	0.37	0.51	0.72	1	1
N.m Max.permissible load in a short time	0.3	0.3	1.2	1.2	1.2	2.5	2.5	2.5	2.5	3	3	3	3	3

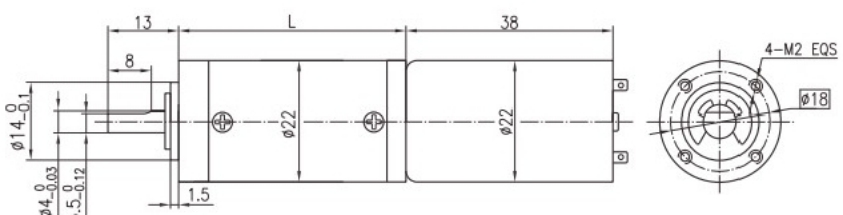

Dimensions
