CHINA MS TECHNOLOGY CO., LTD. (MS MOTOR CO.,LTD.)
42H 3-phase 1.2 degree

• Compact Size for High Torque • NEMA Size 42 Mounting• Custom winding available (No additional cost)• RoHS and CE version

Specifications

Series
  Model

Step angle

Rated torque N.m

Holding Torque
  N.m

Rated
  Current
  A/phase

Resistance
  ohm/phase

Rotor Inertia
  (kg.cm 2 )

Motor
  Weight
  (kg)

Motor
  Lenth
  (mm)

Lead
  Wire
  (NO.)

42H3100-42-6A

1.2

2

13

2.36

2.45

5.5

5.2

100

6

42H3150-48-6A

1.2

2

22

2.77

3.3

11

8.5

150

6

Dimensions

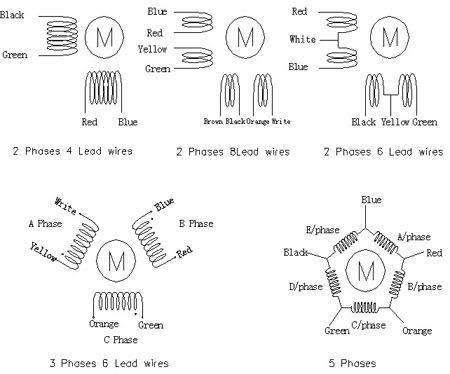

Wiring Diagram

Torque Curves

Pull out torque curve:
