130mm 3 phase 1.2 degree stepper motor
• Compact Size for High Torque • NEMA Size 130 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Model | Step angle (°) | Motor length L(mm) | Phase current (A) | Phase resistance (Q) | Phase inductance (mH) | Holding torgue (N.m) | Lead No. | Weigh (kg) |
130H3176-8006A | 1.2 | 176 | 8.0 | 1.0 | 4.4 | 30 | 6 | 13.5 |
130H3227-8006A | 1.2 | 227 | 8.0 | 1.4 | 17 | 38 | 6 | 17.5 |
130H3281-8006A | 1.2 | 281 | 8.0 | 1.7 | 20 | 50 | 6 | 25 |
130H3220-3006A | 1.2 | 220 | 3.0 | 2.5 | 26 | 37 | 6 | 16.5 |
130H3261-3006A | 1.2 | 261 | 3.0 | 3.2 | 33 | 42 | 6 | 22 |
130H5261-60010A | 0.72 | 261 | 6.0 | 1.6 | 22 | 42 | 10 | 22 |

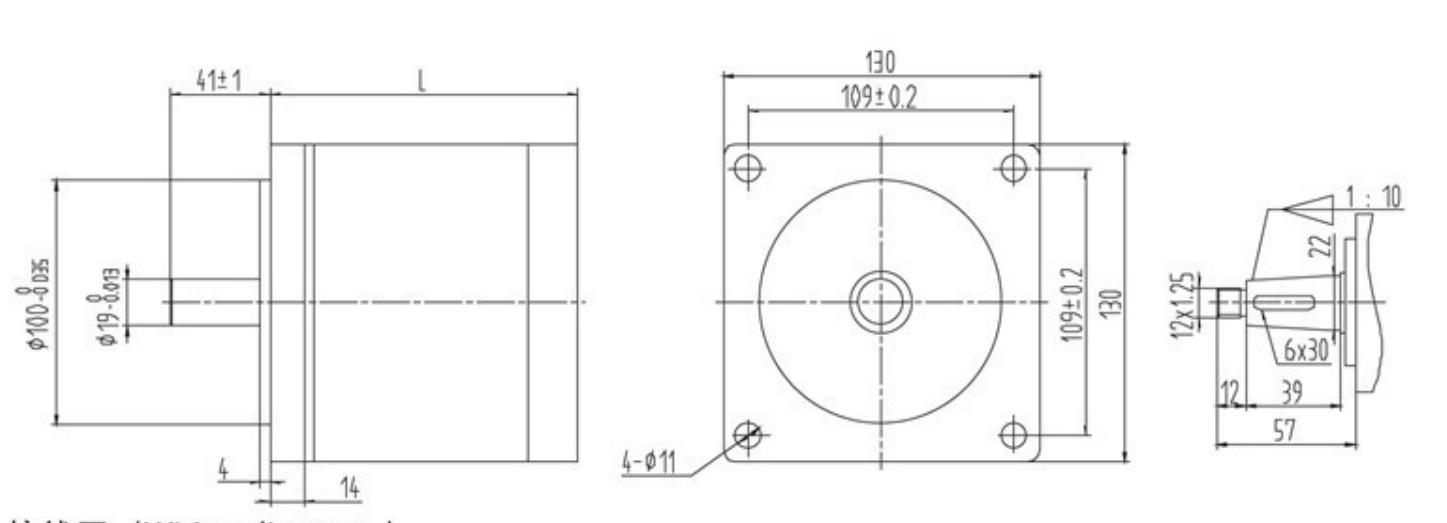

Dimensions
Wiring Diagram

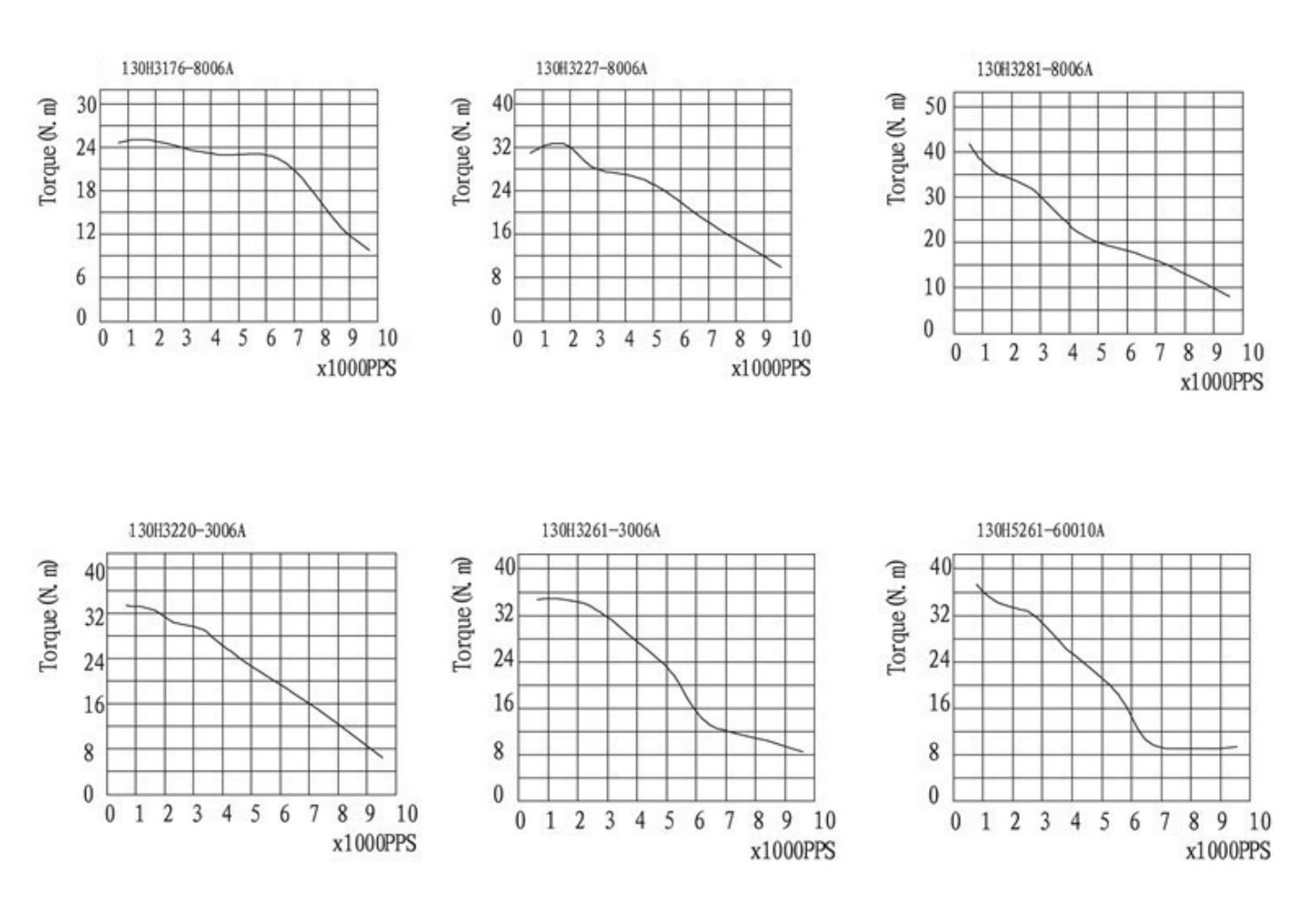

Torque Curves
