42H 2-phase 1.8 degree IP54
• Compact Size for High Torque • NEMA Size 42 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Series | Holding Torque | Rated | Resistance | Inductance | Rotor Inertia | Motor | Motor | Lead |
42H2100-55-4AIP | 10 | 5.5 | 0.9 | 12 | 5.5 | 5.5 | 100 | 4 |
42H2150-65-4AIP | 20 | 6.5 | 0.8 | 11.8 | 11 | 9.5 | 150 | 4 |
42H2150-140-4AIP | 20 | 14 | 0.6 | 6 | 11 | 9.5 | 150 | 4 |

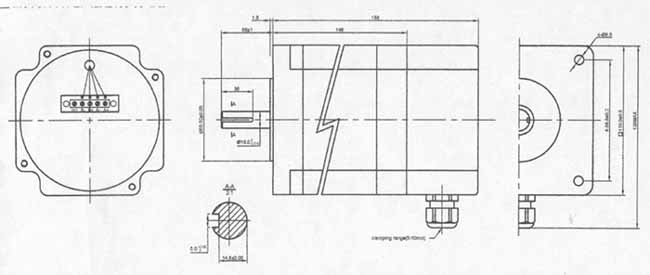

Dimensions

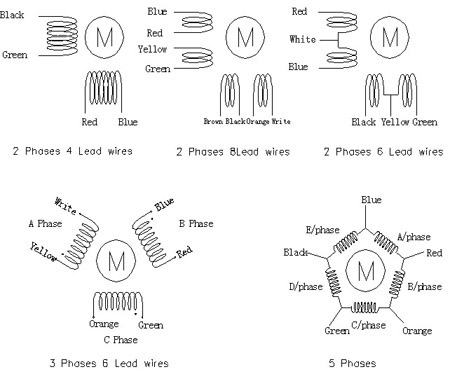

Wiring Diagram
