• Compact Size for High Torque • NEMA Size42 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Series | Holding Torque | Rated | Resistance | Inductance | Rotor Inertia | Motor | Motor | Lead | |
42H2100-42-8A | Parallel | 10 | 6.0 | 0.88 | 13.2 | 5.5 | 5.2 | 100 | 8 |
Series | 10 | 3.0 | 3.52 | 53 | |||||
Unipolar | 7.0 | 4.2 | 1.76 | 13.2 | |||||
42H2100-60-8A | Parallel | 10 | 8.5 | 0.43 | 6.7 | 5.5 | 5.2 | 100 | 8 |
Series | 10 | 4.3 | 1.72 | 26.8 | |||||
Unipolar | 7.0 | 6.0 | 0.85 | 6.7 | |||||
42H2150-35-8A | Parallel | 20 | 5.0 | 1.3 | 24 | 11 | 9.0 | 150 | 8 |
Series | 20 | 2.5 | 5.2 | 96 | |||||
Unipolar | 14 | 3.5 | 2.6 | 24 | |||||
42H2150-42-8A | Parallel | 20 | 6.0 | 1.35 | 26.5 | 11 | 9.0 | 150 | 8 |
Series | 20 | 3.0 | 5.4 | 106 | |||||
Unipolar | 14 | 4.2 | 2.7 | 26.5 | |||||
42H2150-60-8A | Parallel | 20 | 8.5 | 0.65 | 13.4 | 11 | 9.0 | 150 | 8 |
Series | 20 | 4.3 | 2.6 | 53.6 | |||||
Unipolar | 14 | 6.0 | 1.3 | 13.4 | |||||
42H2150-65-4A | 20 | 6.5 | 0.8 | 11.8 | 11 | 9.0 | 150 | 4 | |
42H2150-140-4A | 20 | 14 | 0.6 | 6 | 11 | 9.0 | 150 | 4 | |
42H2115-60-4A | 14 | 6.0 | 0.95 | 15 | 5.5 | 6.2 | 115 | 4 | |
42H2125-65-4A | 18 | 6.5 | 0.66 | 11 | 8.5 | 7.5 | 125 | 4 | |
42H2165-60-4A | 24 | 6.5 | 0.65 | 14 | 13 | 11 | 165 | 4 | |
42H2200-65-4A | 27 | 6.5 | 1.0 | 21 | 15 | 15 | 200 | 4 |

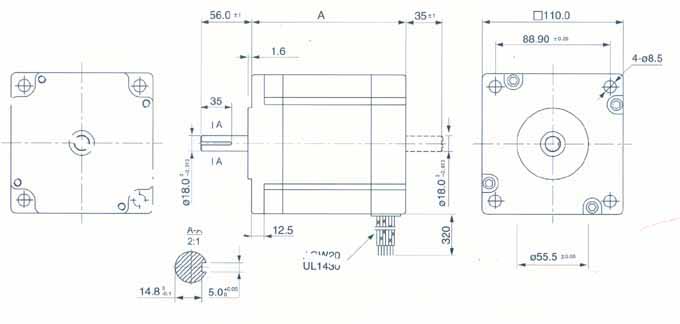

Dimensions

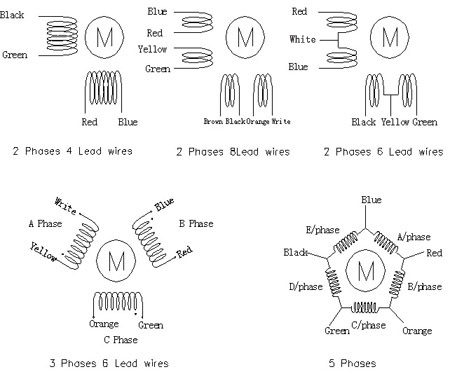

Wiring Diagram
