• Compact Size for High Torque • NEMA Size 34 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Series Model | Step Angle ( ° ) | Motor Length (mm) | Rated Current (A) | Phase Resistance ( Ω ) | Phase Inductance (mH) | Holding Torque (N.cm Min) | Detent Torque (N.cm Max) | Rotor Inertia (g.cm 2 ) | Lead Wire (No.) | Motor Weight (Kg) |
34HY63-40-8A | 1.8 | 63 | 4.0 | 0.68 | 2.0 | 180 | 4.5 | 0.64 | 8 | 1.6 |
34HY63-50-8A | 1.8 | 63 | 5.0 | 0.45 | 1.5 | 180 | 4.5 | 0.64 | 8 | 1.6 |
34HY63-27-8A | 1.8 | 63 | 2.7 | 1.2 | 4.5 | 180 | 4.5 | 0.64 | 8 | 1.6 |
34HY63-21-8A | 1.8 | 63 | 2.1 | 1.9 | 7.2 | 180 | 4.5 | 0.64 | 8 | 1.6 |
34HY92-40-8A | 1.8 | 92 | 4.0 | 0.89 | 3.8 | 320 | 6.5 | 1.3 | 8 | 2.6 |
34HY92-50-8A | 1.8 | 92 | 5.0 | 0.58 | 2.8 | 320 | 6.5 | 1.3 | 8 | 2.6 |
34HY92-27-8A | 1.8 | 92 | 2.7 | 1.7 | 9.0 | 320 | 6.5 | 1.3 | 8 | 2.6 |
34HY92-21-8A | 1.8 | 92 | 2.1 | 2.7 | 15 | 320 | 6.5 | 1.3 | 8 | 2.6 |
34HY122-40-8A | 1.8 | 122 | 4.0 | 1.1 | 5.6 | 450 | 10.5 | 1.9 | 8 | 3.8 |
34HY122-50-8A | 1.8 | 122 | 5.0 | 0.82 | 3.6 | 450 | 10.5 | 1.9 | 8 | 3.8 |
34HY122-27-8A | 1.8 | 122 | 2.7 | 2.5 | 12.5 | 450 | 10.5 | 1.9 | 8 | 3.8 |

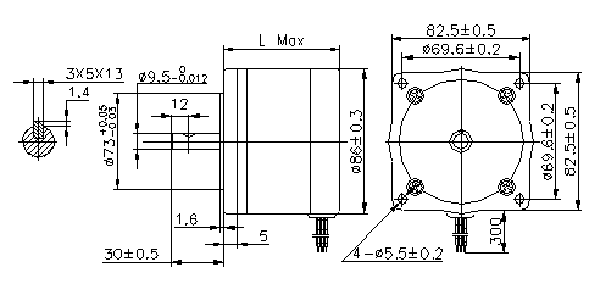

Dimensions

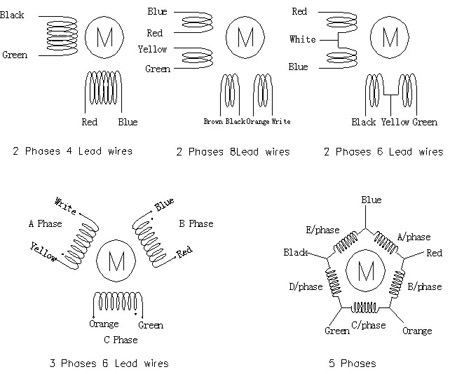

Wiring Diagram
