34G high speed 2 phase stepper motor
SpecificationsModel No.Current /PhaseResistance /PhaseInductance /PhaseHolding TorqueInertiaWeightLengthAΩmHOz-inN.mkg/cm²Kgmm34G280-04S/D6.00.52.85674.01.82.18034G2120-04S/D6.00.76.010207.23.63.612···
Specifications
Model No. | Current | Resistance | Inductance | Holding Torque | Inertia | Weight | Length | |
A | Ω | mH | Oz-in | N.m | kg/cm² | Kg | mm | |
34G280-04S/D | 6.0 | 0.5 | 2.8 | 567 | 4.0 | 1.8 | 2.1 | 80 |
34G2120-04S/D | 6.0 | 0.7 | 6.0 | 1020 | 7.2 | 3.6 | 3.6 | 120 |
34G2120-05S/D | 7.5 | 0.5 | 4.0 | 1020 | 7.2 | 3.6 | 3.6 | 120 |

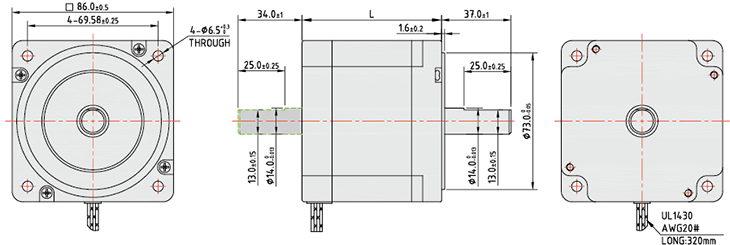

Dimensions

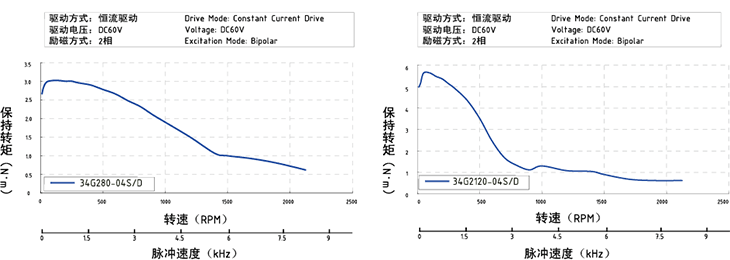

Torque Curves
