34H 2-phase 1.8 degree IP65
• Compact Size for High Torque • NEMA Size 34 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Series | Holding Torque | Rated | Resistance | Inductance | Rotor Inertia | Motor | Motor | Lead |
34IP290-02 | 4.5 | 3.0 | 1.3 | 12.0 | 1.8 | 2.1 | 88 | 4 |
34IP290-03 | 4.5 | 4.5 | 0.6 | 6.0 | 1.8 | 2.1 | 88 | 4 |
34IP290-04 | 4.5 | 6.0 | 0.3 | 3.5 | 1.8 | 2.1 | 88 | 4 |
34IP2130-02 | 8.5 | 3.0 | 2.1 | 25.7 | 3.6 | 3.6 | 126 | 4 |
34IP2130-03 | 8.5 | 4.5 | 0.9 | 11.8 | 3.6 | 3.6 | 126 | 4 |
34IP2130-04 | 8.5 | 6.0 | 0.5 | 6.5 | 3.6 | 3.6 | 126 | 4 |

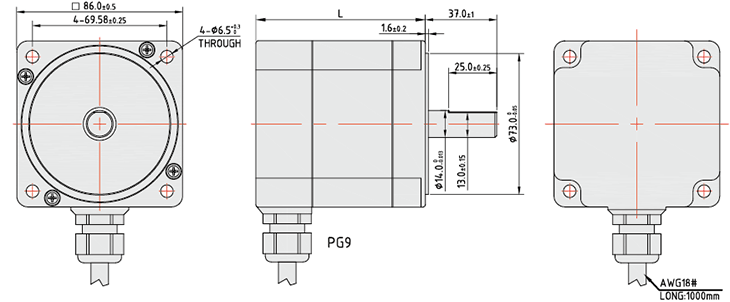

Dimensions

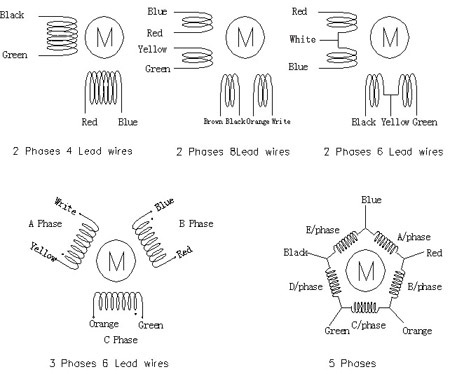

Wiring Diagram

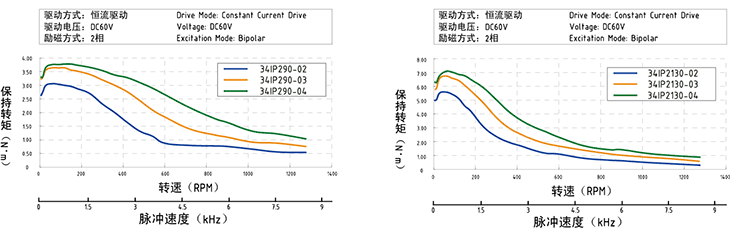

Torque Curves
