CHINA MS TECHNOLOGY CO., LTD. (MS MOTOR CO.,LTD.)
34H 3-phase 1.2 degree

• Compact Size for High Torque • NEMA Size34 Mounting• Custom winding available (No additional cost)• RoHS and CE version

Specifications

Series
  Model

Step angle

Holding Torque
  N.m

Rated
  Current
  A/phase

Resistance
  ohm/phase

Rotor Inertia
  (kg.cm 2 )

Motor
  Weight
  (kg)

Motor
  Lenth
  (mm)

Lead
  Wire
  (NO.)

34H3066-18-6A

1.2

2.6

1.0

8.3

1.1

2

66

6

34H3066-30-6A

1.2

2.6

1.75

4.25

1.1

2

66

6

34H3066-44-6A

1.2

2.6

2.5

1.4

1.1

2

66

6

34H366-58-6A

1.2

2.6

3.3

0.83

1.1

2

66

6

34H3096-20-6A

1.2

5.4

1.1

10.3

2.2

2.8

96

6

34H3096-34-6A

1.2

5.4

2

5.4

2.2

2.7

96

6

34H396-50-6A

1.2

5.4

3.0

1.74

2.2

2.7

96

6

34H3096-58-6A

1.2

5.4

3.3

1.30

2.2

2.7

96

6

34H3126-23-6A

1.2

7.6

1.3

11.2

3.3

3.8

126

6

34H3126-50-6A

1.2

7.6

3.0

2.4

3.3

3.8

126

6

34H3126-58-6A

1.2

7.6

3.3

1.8

3.3

3.8

126

6

34H3156-40-6A

1.2

8.00

2.3

13.5

4.8

5.5

156

6

34H3156-50-6A

1.2

8.00

2.88

2.4

4.8

5.5

156

6

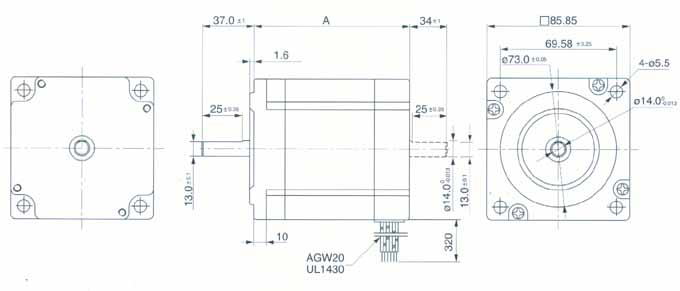

Dimensions

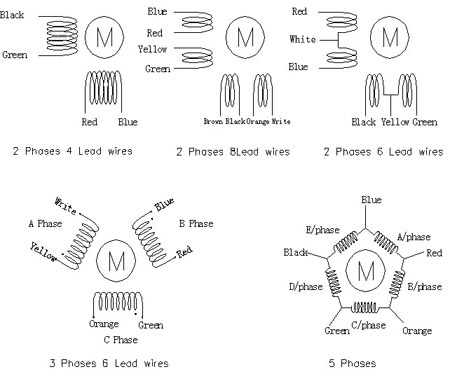

Wiring Diagram

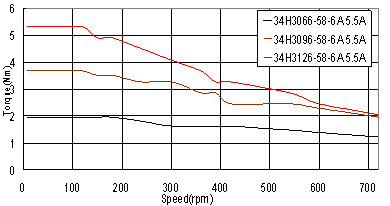

Torque Curves

Pull out torque curve:
