24H 3-phase 1.2 degree
• Compact Size for High Torque • NEMA Size 24 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Series Model | Step Angle (°) | Motor Length (mm) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.m Min) | Rotor Inertia (kg.cm²) | Lead Wire (No.) | Motor Weight (kg) |
24HT6335 | 1.2 | 56 | 3.5 | 0.95 | 1.8 | 0.8 | 0.28 | 3 | 0.58 |
24HT7346 | 1.2 | 64 | 4.6 | 0.7 | 1.2 | 1.1 | 0.38 | 3 | 0.85 |
24HT7627 | 1.2 | 64 | 4.6 | 1.0 | 1.2 | 1.1 | 0.38 | 6 | 0.85 |
24HT8346 | 1.2 | 76 | 4.6 | 0.8 | 1.5 | 1.3 | 0.44 | 3 | 1.15 |
24HT1365 | 1.2 | 90 | 6.5 | 0.45 | 1 | 1.6 | 0.58 | 3 | 1.4 |

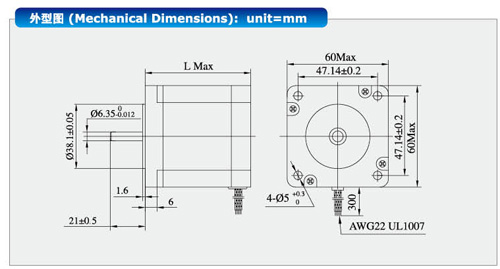

Dimensions
