62HW (62mm) Series, 0.9deg/step
SpecificationsModelStep AngleRated CurrentMotor LengthPhase ResistancePhase InductanceHolding TorqueDetent Torque(°)(A)(mm)(Ω)(mH)(N.cmMin)(N.cmMax)62HW234040.90.4233245362.5Dimensions
Specifications
Model | Step Angle | Rated Current | Motor Length | Phase Resistance | Phase Inductance | Holding Torque | Detent Torque |
(°) | (A) | (mm) | (Ω) | (mH) | (N.cmMin) | (N.cmMax) | |
62HW23404 | 0.9 | 0.4 | 23 | 32 | 45 | 36 | 2.5 |

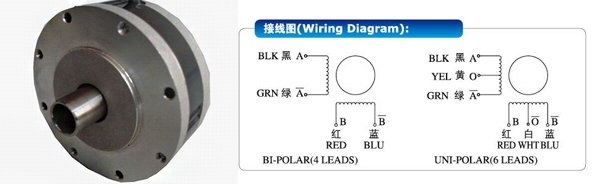

Dimensions
