24H 2-phase 1.8 degree IP65
• Compact Size for High Torque • NEMA Size 24 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Series | Holding Torque | Rated | Resistance | Inductance | Rotor Inertia | Motor | Motor | Lead |
24IP270-02 | 1.5 | 2.0 | 1.8 | 6.0 | 340 | 0.8 | 70 | 4 |
24IP270-03 | 1.5 | 3.0 | 0.8 | 2.5 | 340 | 0.8 | 70 | 4 |
24IP270-04 | 1.5 | 4.0 | 0.4 | 1.4 | 340 | 0.8 | 70 | 4 |
24IP2100-03 | 3.0 | 3.0 | 1.3 | 5.0 | 690 | 1.4 | 100 | 4 |
24IP2100-04 | 3.0 | 4.0 | 0.8 | 3.0 | 690 | 1.4 | 100 | 4 |
24IP2100-05 | 3.0 | 5.0 | 0.4 | 2.0 | 690 | 1.4 | 100 | 4 |

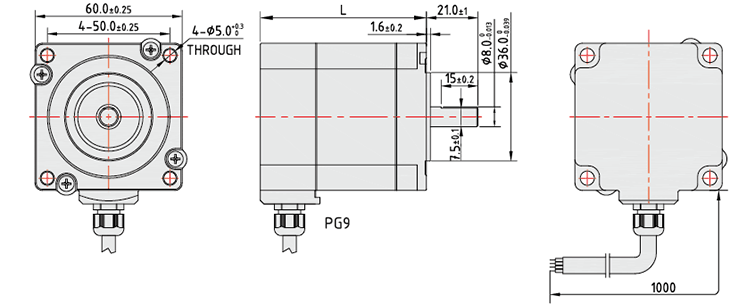

Dimensions

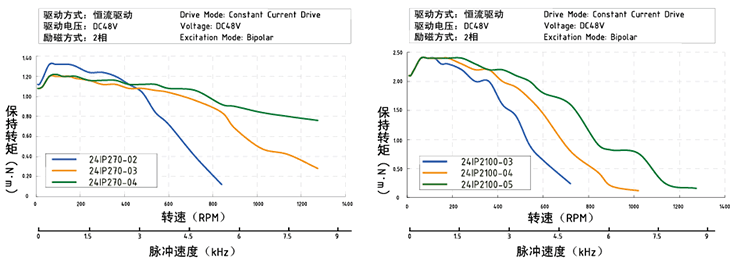

Torque Curves
