23H 2-phase 1.8 degree IP54

• Compact Size for High Torque • NEMA Size 23 Mounting• Custom winding available (No additional cost)• RoHS and CE version

Specifications

Series
  Model

Holding Torque
  N.m +-10%

Rated
  Current
  A/phase

Resistance
  ohm/phase +-10%

Inductance
  mH/phase +-20%

Rotor Inertia
  (g.cm 2 )

Motor
  Weight
  (kg)

Motor
  Lenth
  (mm)

Lead
  Wire
  (NO.)

23H246-01IP54

0.64

1.5

1.72

4.36

120

0.5

46

4

23H246-02IP54

0.64

2.0

1.1

2.8

120

0.5

46

4

23H246-03IP54

0.64

3.0

0.43

1.09

120

0.5

46

4

23H255-01IP54

1.0

1.5

2.14

7.92

200

0.7

55

4

23H255-02IP54

1.0

2.0

1.4

5.0

200

0.7

55

4

23H255-03IP54

1.0

3.0

0.54

1.98

200

0.7

55

4

23H262-01IP54

1.28

1.5

1.46

8.4

300

0.85

62

4

23H262-02IP54

1.28

2.0

1.6

5.5

300

0.85

62

4

23H262-03IP54

1.28

3.0

0.62

2.1

300

0.85

62

4

23H280-01IP54

2.0

1.5

3.26

15.2

480

1.15

80

4

23H280-02IP54

2.0

2.0

2.1

10.0

480

1.15

80

4

23H280-03IP54

2.0

3.0

0.82

3.8

480

1.15

80

4

Dimensions

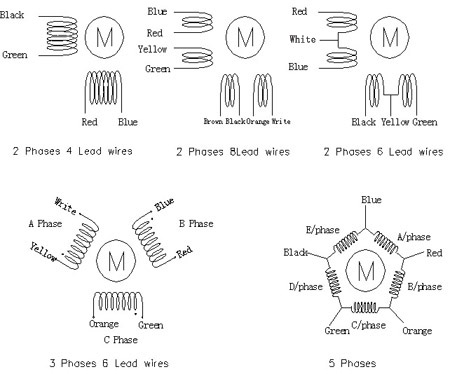

Wiring Diagram
