23G high speed 2 phase stepper motor
SpecificationsModel No.Current /PhaseResistance /PhaseInductance /PhaseHolding TorqueInertiaWeightLengthAΩmHOz-inN.mg/cm²Kgmm23G255-04S/D4.00.51.3127.50.92800.855.523G280-05S/D5.00.41.6240.81.75201.···
Specifications
Model No. | Current | Resistance | Inductance | Holding Torque | Inertia | Weight | Length | |
A | Ω | mH | Oz-in | N.m | g/cm² | Kg | mm | |
23G255-04S/D | 4.0 | 0.5 | 1.3 | 127.5 | 0.9 | 280 | 0.8 | 55.5 |
23G280-05S/D | 5.0 | 0.4 | 1.6 | 240.8 | 1.7 | 520 | 1.2 | 80.5 |

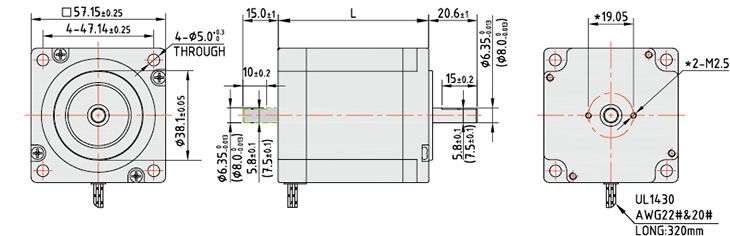

Dimensions

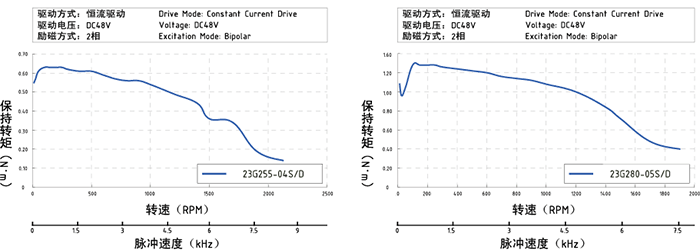

Torque Curves
