• Compact Size for High Torque • NEMA Size 23 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Series Model | step Angle ( ° ) | Motor Length (mm) | Rated Current (A) | Phase Resistance ( Ω ) | Phase Inductance (mH) | Holding Torque (N.cm Min) | etent Torque (N.cm Max) | Rotor Inertia (g.cm 2 ) | Lead Wire (No.) | Motor Weight (g) |
23HY41-03-6A | 1.8 | 41 | 0.38 | 32 | 30 | 30 | 3.5 | 60 | 6 | 450 |
23HY41-15-4A | 1.8 | 41 | 1.55 | 1.8 | 3.5 | 22 | 3.5 | 60 | 4 | 450 |
23HY41-21-4A | 1.8 | 41 | 2.1 | 0.8 | 1.4 | 32 | 3.5 | 60 | 4 | 450 |
23HY41-15-4A | 1.8 | 41 | 1.5 | 1.5 | 1.4 | 24 | 3.5 | 60 | 6 | 450 |
23HY51-03-6A | 1.8 | 51 | 0.38 | 32 | 28 | 38 | 5.5 | 118 | 6 | 600 |
23HY51-08-6A | 1.8 | 51 | 0.85 | 7.1 | 8.5 | 45 | 5.5 | 118 | 6 | 600 |
23HY51-14-6A1 | 1.8 | 51 | 1.4 | 2.5 | 32 | 45 | 5.5 | 118 | 6 | 600 |
23HY51-14-6A2 | 1.8 | 51 | 1.4 | 2.5 | 6.2 | 62 | 5.5 | 118 | 6 | 600 |
23HY51-20-4A | 1.8 | 51 | 2.0 | 1.3 | 3.2 | 62 | 5.5 | 118 | 4 | 600 |
23HY56-06-6A | 1.8 | 56 | 0.6 | 20 | 20 | 60 | 6.5 | 145 | 6 | 650 |
23HY56-12-6A | 1.8 | 56 | 1.2 | 5.0 | 6.8 | 60 | 6.5 | 145 | 6 | 650 |
23HY56-16-6A | 1.8 | 56 | 1.6 | 5.2 | 30 | 60 | 6.5 | 145 | 6 | 650 |
23HY56-24-6A | 1.8 | 56 | 2.4 | 1.0 | 1.2 | 60 | 6.5 | 145 | 6 | 650 |
23HY56-25-4A | 1.8 | 56 | 2.5 | 1.2 | 3.0 | 80 | 6.5 | 145 | 4 | 650 |
23HY76-42-4A | 1.8 | 76 | 4.2 | 0.6 | 1.4 | 110 | 6.5 | 145 | 4 | 800 |
23HY76-21-4A | 1.8 | 76 | 2.1 | 2.2 | 6.2 | 110 | 9.5 | 230 | 6 | 800 |
23HY76-36-4A | 1.8 | 76 | 3.6 | 0.8 | 2.2 | 110 | 9.5 | 230 | 4 | 800 |

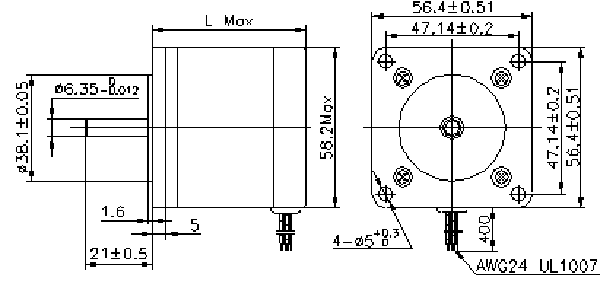

Dimensions

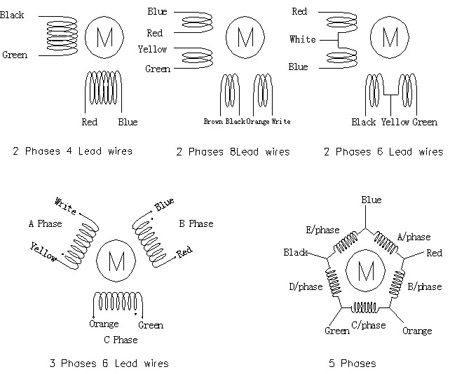

Wiring Diagram
