14HR 2-phase 0.9 degree
• Compact Size for High Torque • NEMA Size 14 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Model No. | Rated Voltage | Current | Resistance | Inductance | Holding | #Of Leads | Weight | Length | |
V | A | Ω | mH | Oz-in | g-cm | Kg | mm | ||
14HR12HM-0304A | 6.2 | 0.3 | 16.8 | 8 | 4.44 | 320 | 4 | 60 | 12.5 |
14HR20HM-0504A | 6.0 | 0.5 | 12 | 9 | 15.3 | 1100 | 4 | 130 | 19.5 |

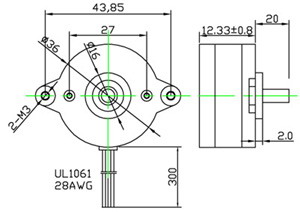

Dimensions

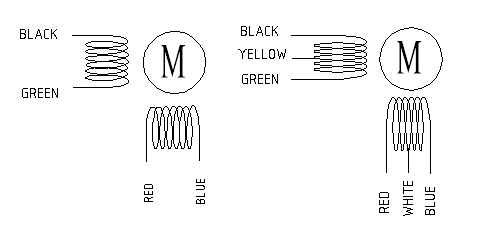

Wiring Diagram
