16H 2-phase 0.9 degree
• Compact Size for High Torque • NEMA Size 16 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Model No. | Rated Voltage | Current | Resistance | Inductance | Holding | #Of Leads | Rotor Inertia | Weight | Length | ||
Single Shaft | Double Shaft | V | A | Ω | mH | Oz-in | g-cm | g-cm2 | Kg | mm | |
16H20HM-0504A | 16H20HM-0504B | 4 | 0.5 | 8.0 | 9.5 | 12.5 | 900 | 4 | 10 | 0.1 | 20 |
16H25HM-0504A | 16H25HM-0504B | 5 | 0.5 | 10 | 15.5 | 17 | 1200 | 4 | 11 | 0.12 | 25 |
16H25HM-0604A | 16H25HM-0604B | 6 | 0.6 | 10 | 15.5 | 22 | 1600 | 4 | 11 | 0.12 | 25 |
16H34HM-0404A | 16H34HM-0404B | 12 | 0.4 | 30 | 43 | 25 | 1800 | 4 | 20 | 0.18 | 34 |
16H38HM-0504A | 16H38HM-0504B | 12 | 0.5 | 24 | 60 | 36 | 2600 | 4 | 28 | 0.2 | 38 |
16H38HM-0806A | 16H38HM-0806B | 6 | 0.8 | 7.5 | 7.5 | 24 | 1700 | 6 | 28 | 0.2 | 38 |
16H44HM-0304A | 16H44HM-0304B | 12 | 0.3 | 40 | 110 | 35 | 2500 | 4 | 36 | 0.25 | 44 |

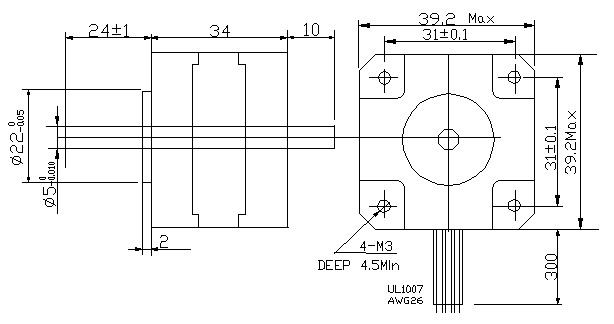

Dimensions

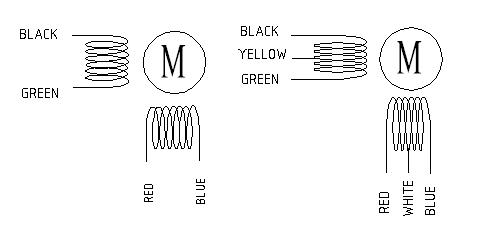

Wiring Diagram
