14H 2-phase 0.9 degree
• Compact Size for High Torque • NEMA Size 14 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Model No. | Rated Voltage | Current | Resistance | Holding Torque | #Of Leads | Rotor Inertia | Weight | Length | ||
Single Shaft | Double Shaft | V | A | Ω | Oz-in | g-cm | g-cm2 | Kg | mm | |
14HM20H-0404A | 14HM20H-0404B | 10 | 0.4 | 25 | 7 | 500 | 4 | 8 | 0.1 | 20 |
14HM26H-0804A | 14HM26H-0804B | 3.8 | 0.8 | 4.8 | 11 | 800 | 4 | 10 | 0.12 | 26 |
14HM28H-0754A | 14HM28H-0754B | 3.2 | 0.75 | 4.3 | 11 | 800 | 4 | 10 | 0.14 | 28 |
14HM28H-0504A | 14HM28H-0504B | 10 | 0.5 | 20 | 14 | 1000 | 4 | 10 | 0.14 | 28 |
14HM34H-0406A | 14HM34H-0406B | 10 | 0.4 | 25 | 17 | 1200 | 6 | 14 | 0.17 | 34 |
14HM36H-1004A | 14HM36H-1004B | 2.7 | 1.0 | 2.7 | 19 | 1400 | 4 | 14 | 0.18 | 36 |

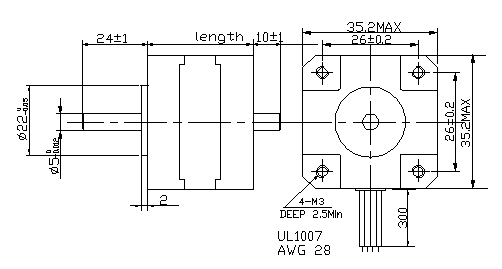

Dimensions

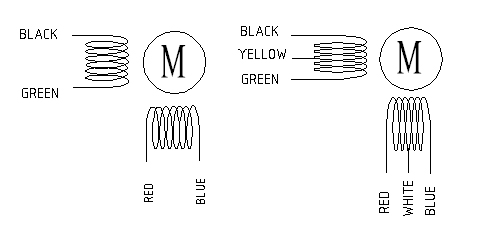

Wiring Diagram
