• Compact Size for High Torque • NEMA Size 8 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Model No. | Rated Voltage | Current | Resistance | Inductance | Holding Torque | #Of Leads | Weight | Length | ||
Single Shaft | Double Shaft | V | A | Ω | mH | Oz-in | g-cm | Kg | mm | |
8H28H-0204A | 8H28H-0204B | 4.8 | 0.2 | 24 | 8.0 | 2.2 | 160 | 4 | 0.05 | 28 |
8H30H-0506A | 8H30H-0506B | 5.75 | 0.5 | 11.5 | 1.7 | 2.5 | 180 | 6 | 0.06 | 30 |
8H33H-0604A | 8H33H-0604B | 3.9 | 0.6 | 6.5 | 2.2 | 2.8 | 200 | 4 | 0.07 | 33 |
8H38H-0604A | 8H38H-0604B | 6 | 0.6 | 10 | 5.5 | 5.6 | 400 | 4 | 0.08 | 38 |

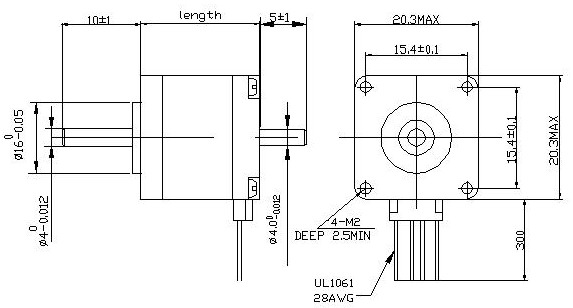

Dimensions

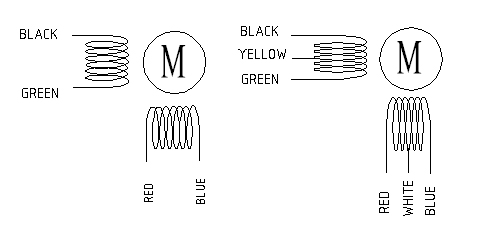

Wiring Diagram
Torque Curves
Pull out torque curve:

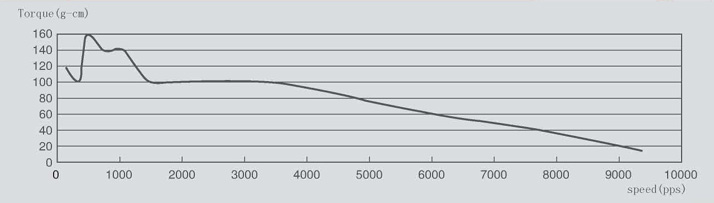

MODEL:8H28H-0204 CURRENT:0.2A VOLTAGE:24VDC FULL STEP A

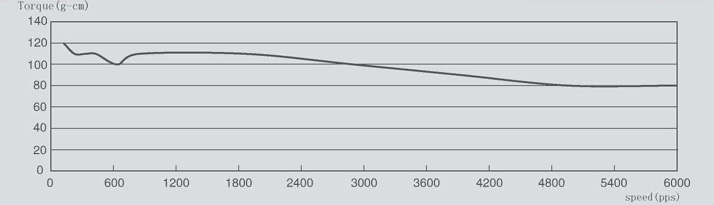

MODEL:8H30H-0506 CURRENT:0.5A VOLTAGE:24VDC FULL STEP B

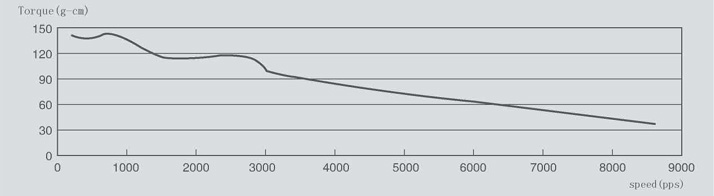

MODEL:8H33H-0506 CURRENT:0.5A VOLTAGE:24VDC FULL STEP C

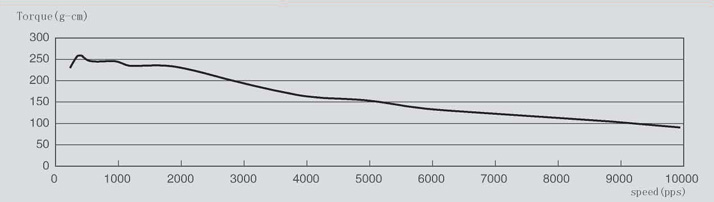

MODEL:8H38H-0604 CURRENT:0.6A VOLTAGE:24VDC FULL STEP D
