36mm OD Planetary Gearbox.Permissible Load Range: 0.3N.m~3.0N.m
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
36ZY57-2442 | 24 | 4200 | 120 | 3600 | 19 | 7 | 0.52 | 97 | 2.8 |
Gear Motor Technical Data
36ZY57-2442 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 218 | 253 | 305 | 354 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 |
No-load speed r/min | 1132 | 811 | 300 | 221 | 156 | 82 | 59 | 42 | 30 | 23 | 19 | 17 | 14 | 12 |
Rated speed r/min | 970 | 695 | 257 | 189 | 133 | 71 | 51 | 36 | 26 | 20 | 17 | 14 | 12 | 8.5 |
Rated torque N.m | 0.063 | 0.089 | 0.22 | 0.29 | 0.42 | 0.71 | 0.98 | 1.4 | 1.9 | 2.2 | 2.7 | 3 | 3 | 3 |
N.m Max. permissible load in a short time | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 | 9 |

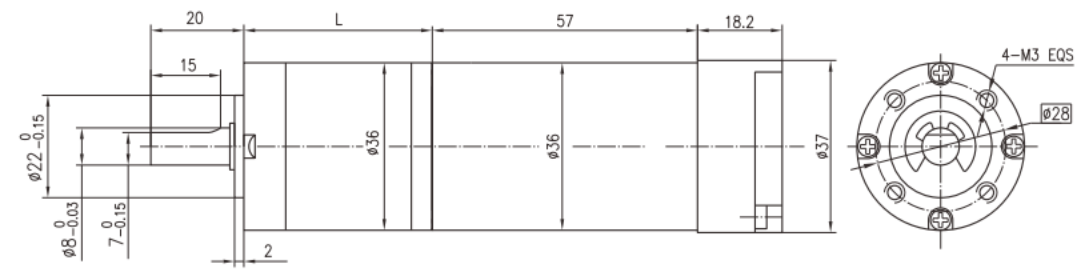

Dimensions
Magnetic Encoder

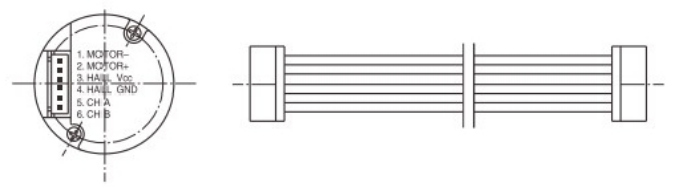

Model: CBM36 output characteristics: 2 channel, two-way control, DC motor rotation a week out of 4PPR 、7PPR.Encoder connection: flat cable, length 350mm.
1.MOTOR-
2.MOTOR+
3.HALL SENSOR Vcc
4.HALL SENSOR GND
5.HALL SENSOR A Vout
6.HALL SENSOR B Vout
Ring gear can be selected within the two materials: Powder metal(Type:36JXF30K),Metal(Type:36JXE30K).
