42mm OD Planetary Gearbox.Permissible Load Range:1N.m~10N.m
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
42ZY68P-2440 | 24 | 4000 | 0.45 | 3000 | 85 | 27 | 2.1 | 250 | 5.0 |
P-Shielding case, OD 42.9mm.
Gear Motor Technical Data
42ZY68P-2440 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 115 | 139 | 181 | 219 | 254 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
Length(L) mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 62.9 | 62.9 | 62.9 |
No-load speed r/min | 1078 | 772 | 286 | 211 | 148 | 78 | 56 | 40 | 35 | 29 | 22 | 18 | 16 |
Rated speed r/min | 809 | 579 | 214 | 158 | 111 | 59 | 42 | 30 | 26 | 22 | 17 | 14 | 11 |
Rated torque N.m | 0.31 | 0.43 | 1.0 | 1.4 | 2.0 | 3.4 | 4.8 | 6.7 | 7.7 | 9.3 | 10 | 10 | 10 |
N.m Max. permissible load in a short time | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 30 | 30 | 30 |

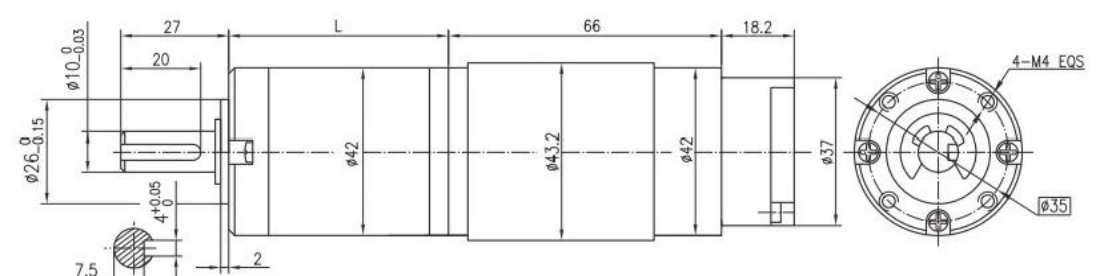

Dimensions
Magnetic Encoder

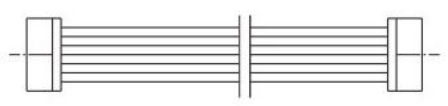

Model: CBM36 output characteristics: 2 channel, two-way control, DC motor rotation a week out of 4PPR、7PPR.Encoder connection: flat cable, length 350mm.
1.MOTOR-
2.MOTOR+
3.HALL SENSOR Vcc
4.HALL SENSOR GND
5.HALL SENSOR A Vout
6.HALL SENSOR B Vout
Ring gear can be selected within the two materials: Powder metal(Type:42JXF100K),Metal(Type:42JXE100K).
