36mm OD Planetary Gearbox.Permissible Load Range: 0.3N.m~3.0N.m
Motor Technical Data
Type | Rated vol tage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
36ZY50-2442 | 24 | 4200 | 120 | 3450 | 12 | 4.2 | 0.43 | 52 | 1.6 |
Gear Motor Technical Data
36ZY50-2442 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 218 | 253 | 305 | 354 | 426 | 495 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 |
No-load speedr/min | 1132 | 811 | 300 | 221 | 156 | 82 | 59 | 42 | 30 | 23 | 19 | 17 | 14 | 12 | 10 | 8.5 |
Rated speed r/min | 930 | 666 | 246 | 182 | 128 | 68 | 49 | 35 | 25 | 19 | 16 | 14 | 11 | 9.7 | 8.1 | 7.0 |
Rated torque N.m | 0.040 | 0.056 | 0.14 | 0.18 | 0.26 | 0.45 | 0.62 | 0.88 | 1.2 | 1.4 | 1.7 | 2.0 | 2.4 | 2.8 | 3 | 3 |
N.m Max. permissible load in a short time | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |

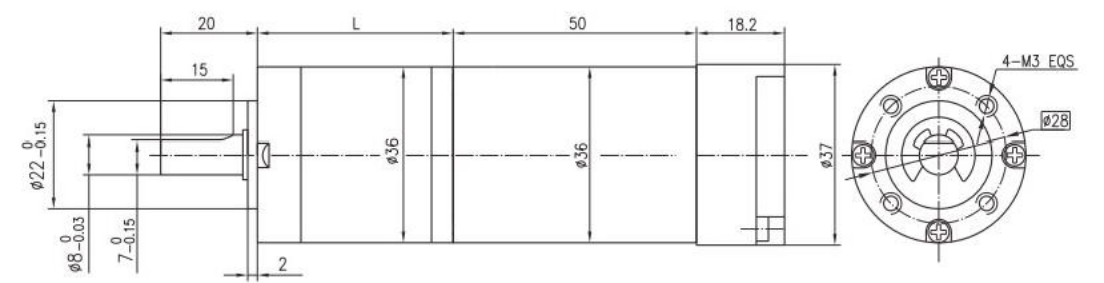

Dimensions
Magnetic Encoder
Model: CBM36 output characteristics: 2 channel, two-way control, DC motor rotation a week out of 4PPR、7PPR.

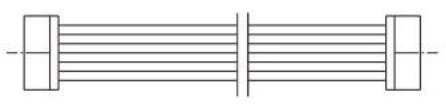

Encoder connection: flat cable, length 350mm.
1.MOTOR-
2.MOTOR+
3.HALL | SENSOR Vcc |
4.HALL | SENSOR GND |
5.HALL | SENSOR A Vout |
6.HALL | SENSOR B Vout |
Ring gear can be selected within the two materials: Powder metal(Type:36JXF30K),Metal(Type:36JXE30K).
