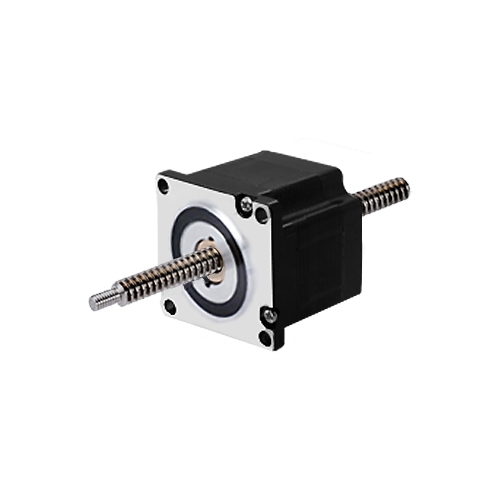

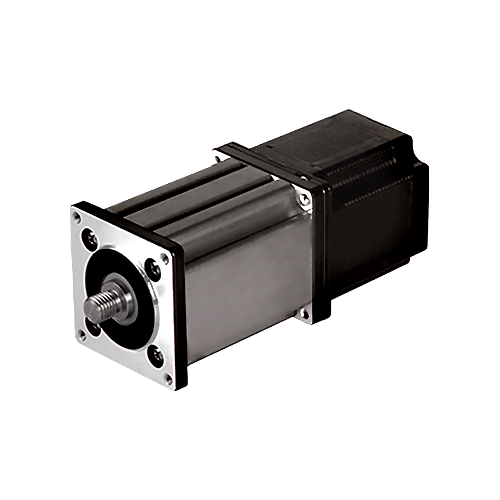

Size 23 [57mm] Stepper Lead Screw Linear Actuator provides high performance, a longer working cycle, and is capable of 910N.External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
Motor Characteristics
| Motor | Voltage[V] | Current[A] | Resistance[Ω] | Inductance[mH] | Weight[g] | Lead Wire No. | Motor Length[mm] |
|---|---|---|---|---|---|---|---|
| 23-2110 | 6.4 | 1 | 6.4 | 16.4 | 585 | 4 | 45 |
| 23-2120 | 3.5 | 2 | 1.75 | 4.1 | 585 | 4 | 45 |
| 23-2130 | 2.4 | 3 | 0.8 | 1.7 | 585 | 4 | 45 |
| 23-2210 | 11.5 | 1 | 11.5 | 32 | 880 | 4 | 65 |
| 23-2225 | 5 | 2.5 | 2 | 5.2 | 880 | 4 | 65 |
| 23-2240 | 2.8 | 4 | 0.7 | 2 | 880 | 4 | 65 |
NOTE
Motor Insulation Class B, Motor Temperature Rise 80°C, Ambient Temperature -20℃~55℃
Available Lead Screw and Travel per Step
| Screw Dia.[inch] | Screw Dia.[mm] | Lead[inch] | Lead[mm] | Lead Code | Travel Per Step @ 1.8° [mm]* | Travel Per Step @ 0.9° [mm]* |
|---|---|---|---|---|---|---|
| 0.375 | 9.525 | 0.025 | 0.635 | A | 0.0032 | 0.0016 |
| 0.375 | 9.525 | 0.05 | 1.27 | D | 0.0064 | 0.0032 |
| 0.375 | 9.525 | 0.0625 | 1.5875 | F | 0.0079 | 0.004 |
| 0.375 | 9.525 | 0.083 | 2.1167 | H | 0.0106 | 0.0053 |
| 0.375 | 9.525 | 0.1 | 2.54 | K | 0.0127 | 0.0064 |
| 0.375 | 9.525 | 0.125 | 3.175 | L | 0.0159 | 0.0079 |
| 0.375 | 9.525 | 0.167 | 4.2333 | P | 0.0212 | 0.0106 |
| 0.375 | 9.525 | 0.2 | 5.08 | R | 0.0254 | 0.0127 |
| 0.375 | 9.525 | 0.25 | 6.35 | S | 0.0318 | 0.0159 |
| 0.375 | 9.525 | 0.375 | 9.525 | V | 0.0476 | 0.0238 |
| 0.375 | 9.525 | 0.384 | 9.7536 | W | 0.0488 | 0.0244 |
| 0.375 | 9.525 | 0.4 | 10.16 | X | 0.0508 | 0.0254 |
| 0.375 | 9.525 | 0.5 | 12.7 | Y | 0.0635 | 0.0318 |
| 0.375 | 9.525 | 1 | 25.4 | Z | 0.127 | 0.0635 |
| 0.394/0.472 | 10/12 | 0.0787 | 2 | G | 0.01 | 0.005 |
| 0.394/0.472 | 10/12 | 0.3937 | 10 | C | 0.05 | 0.025 |
| 0.394 | 10 | 0.7874 | 20 | I | 0.1 | 0.05 |
| 0.472 | 12 | 0.1969 | 5 | E | 0.025 | 0.0125 |
* Value truncated
* Motor winding and screw lead could be customized according to customer's request
* 15.875mm diameter screw only can be applied in External Type

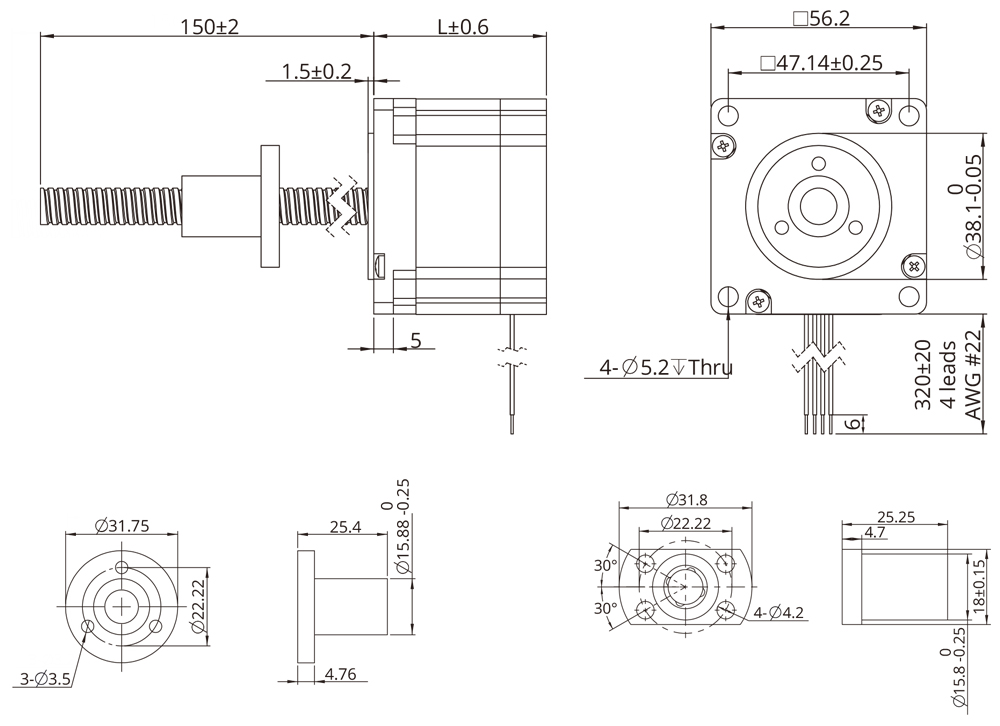

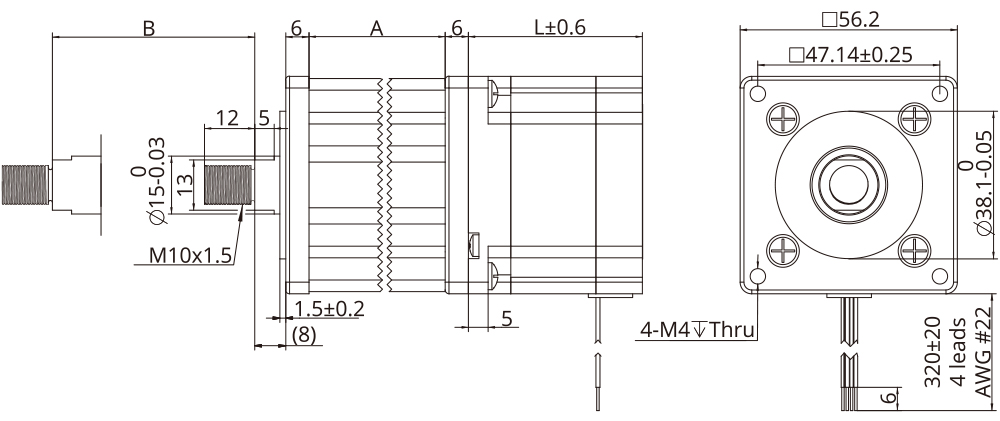

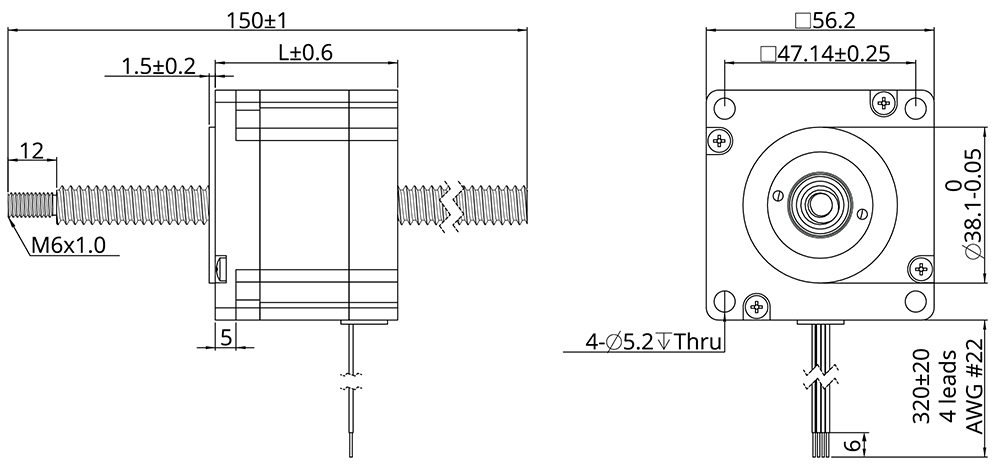

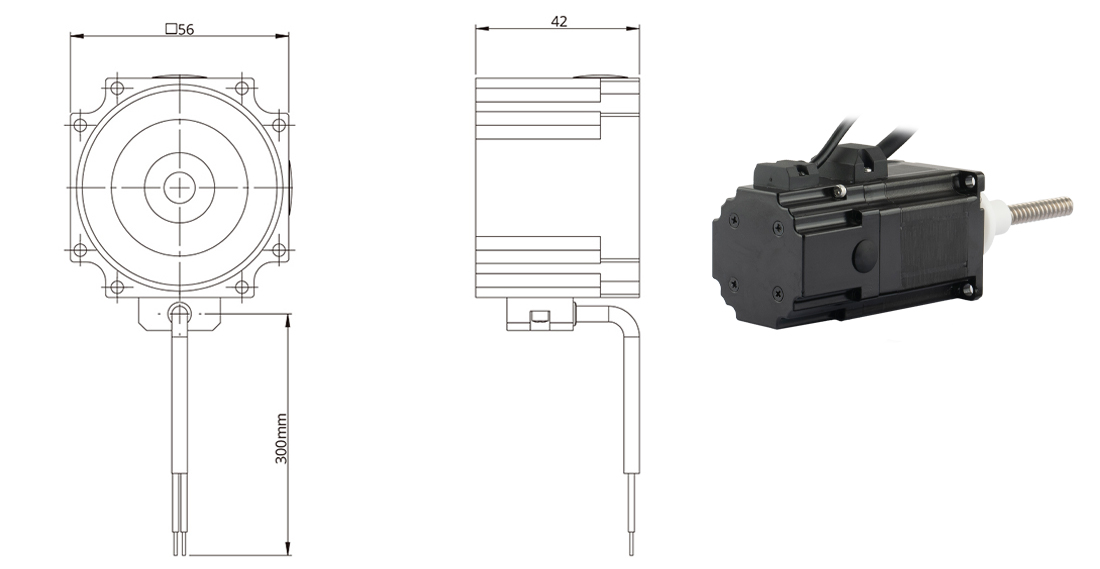

Dimensional Drawings

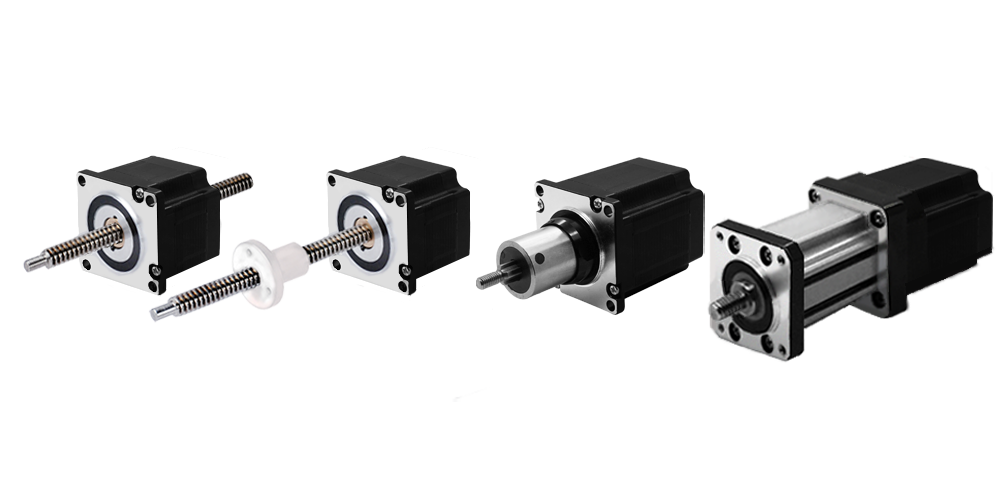

External
Non-Captive
Captive
Stroke Specification
Size A
(mm)Stroke B
(mm)Size L (mm) 45.70 12.70 Single Stack
Motor
45Double Stack
Motor

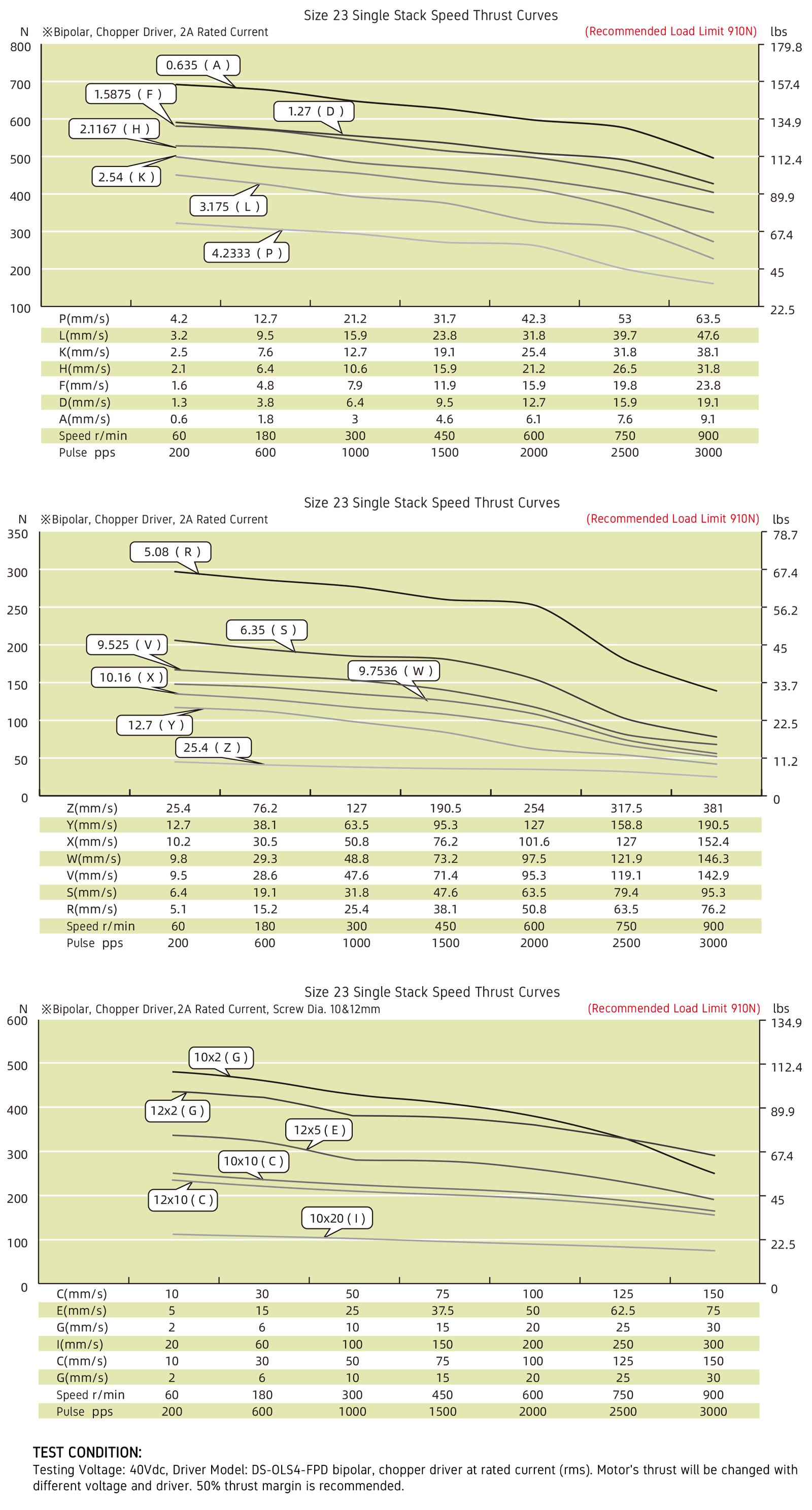

6552.05 19.05 58.40 25.40 64.80 31.80 71.10 38.10 83.80 50.80 96.50 63.50 Speed Thrust Curves
Single Stack

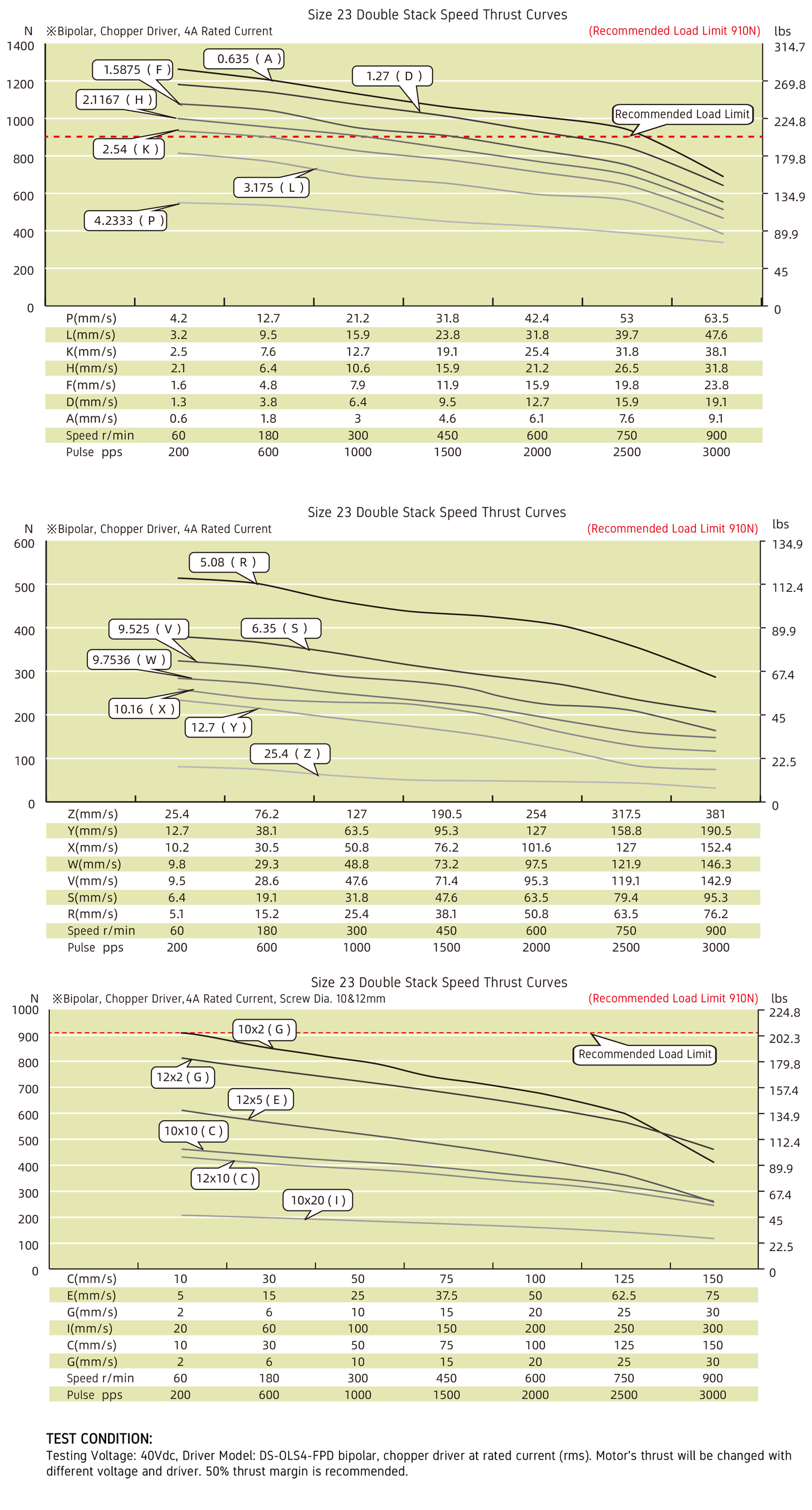

Double Stack
Options
Screw End Machining

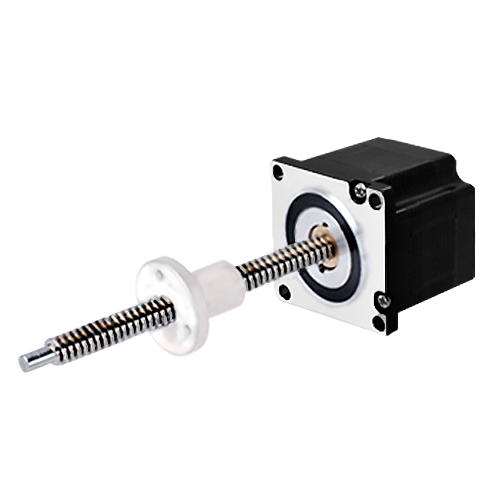

Teflon Coating
If customer's applications require greaseless screw and nut combination,offer teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options and all types of linear actuators such as External, Non-Captive, Electric Cylinder and Kaptive.
In addition, anti-backlash nut also can be combined with teflon coated lead screw too.

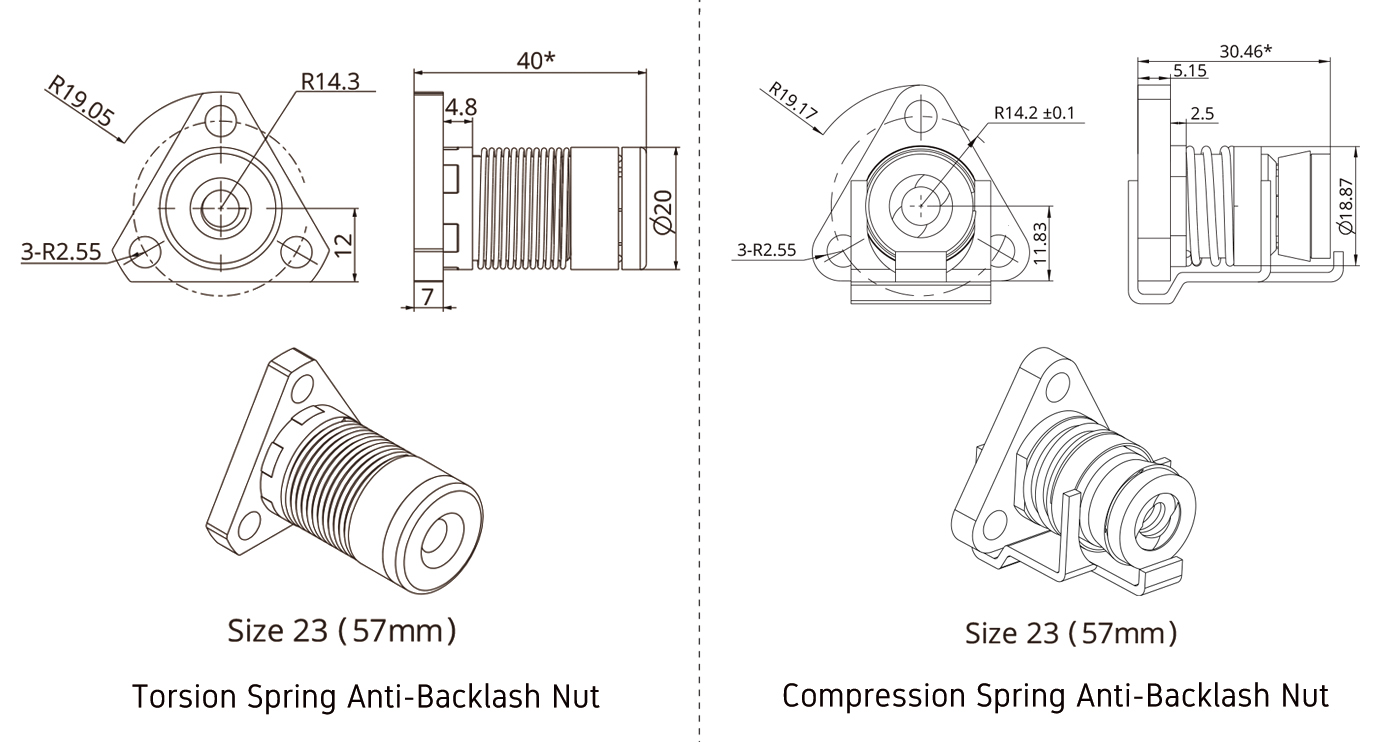

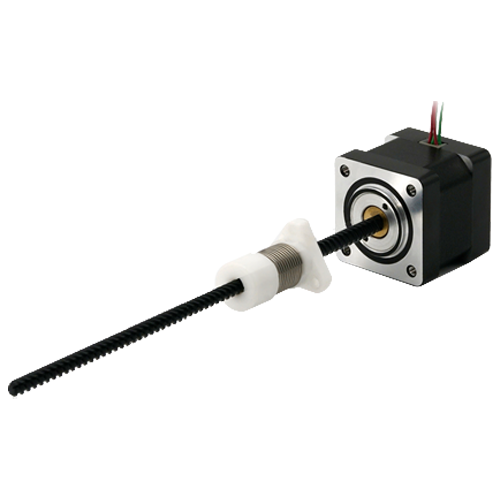

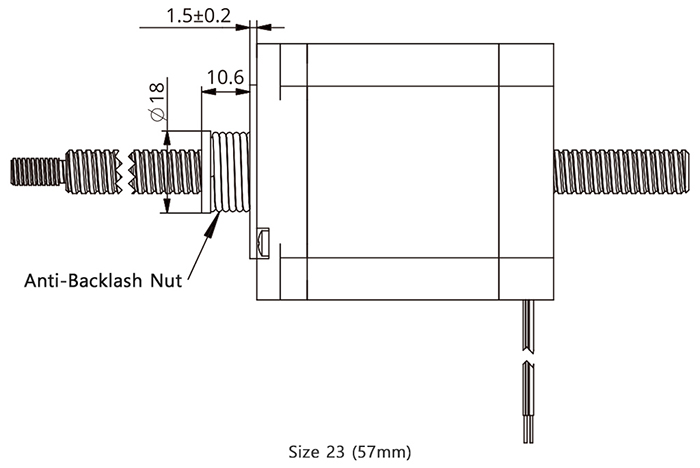

External Anti-Backlash Nut
* According to different screw lead code selection, length of Anti-Backlash nut can be changed.
Non-Captive Anti-Backlash Nut

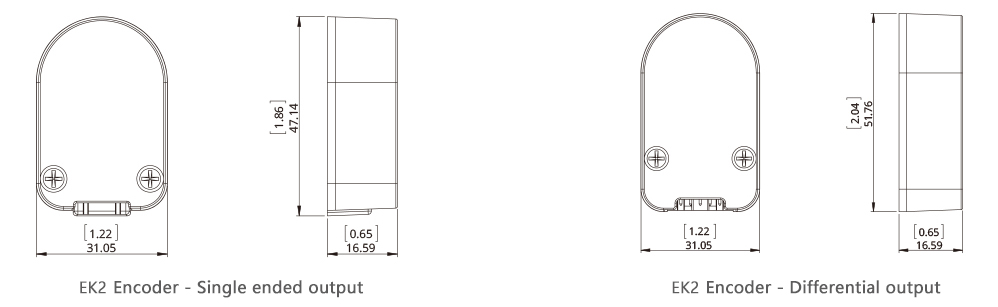

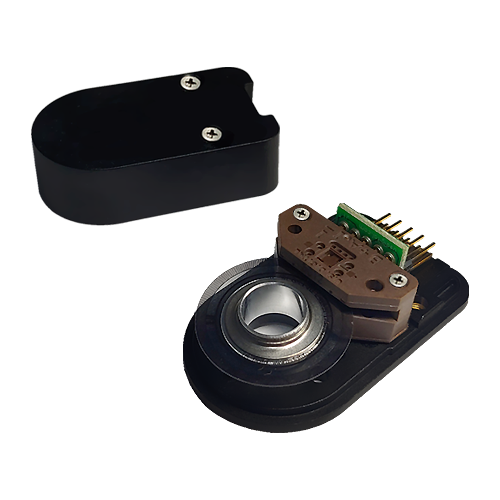

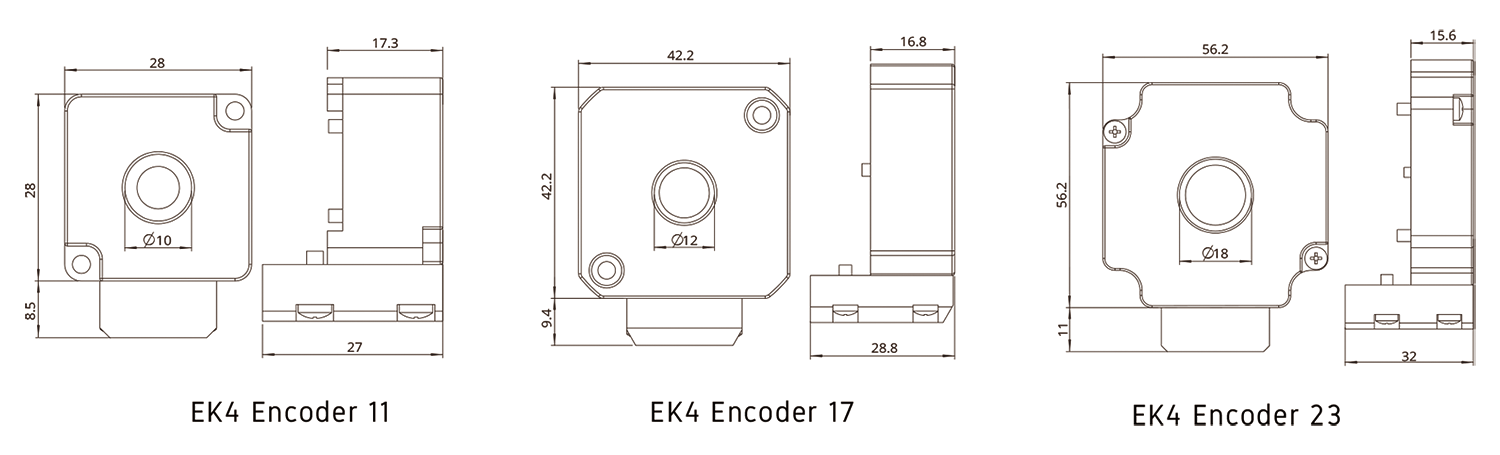

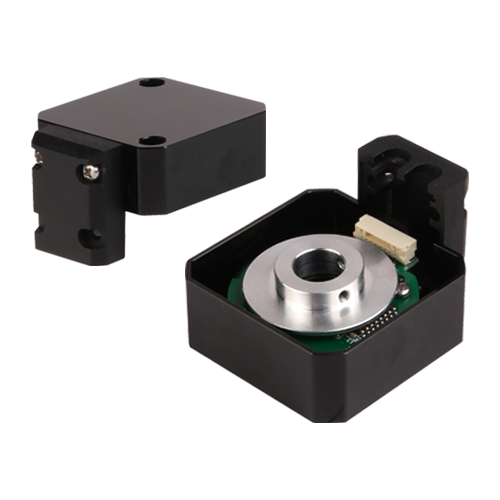

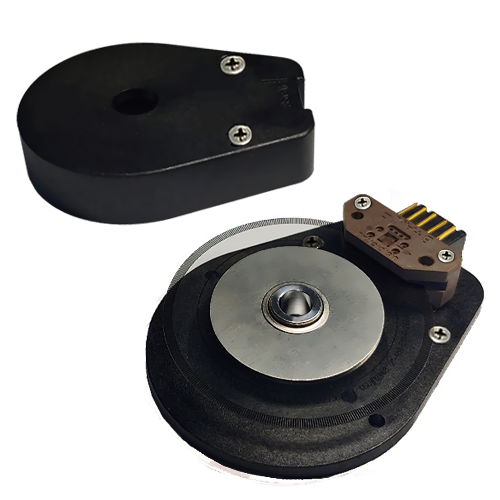

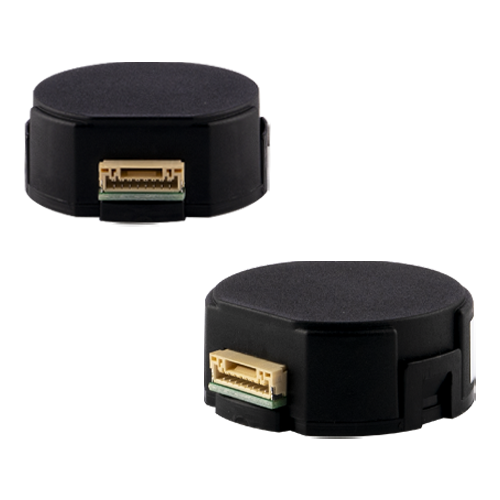

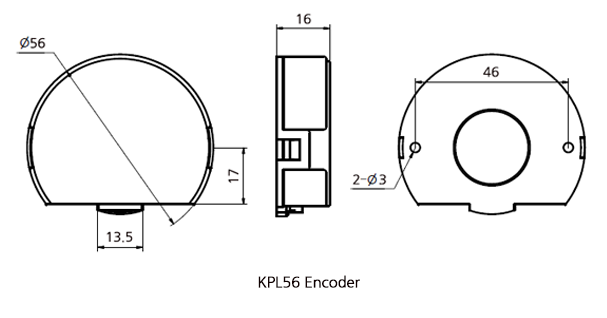

Encoder Option
Resolution(CPR) 50 100 192 200 250 256 360 400 Single ended output 0 1 2 3 4 5 6 7 Differential output A B C D E F G H Resolution(CPR) 500 720 900 1000 1250 2000 2500 4000 5000 Single ended output 8 9 10 11 12 Differential output I J K L M N O P
Resolution(CPR) 64 100 200 500 1000 1800 2000 Single ended output 0 1 2 3 4 5 6 Differential output A B C D E F Resolution(CPR) 2500 3600 4000 5000 7200 8000 10000 Single ended output 7 8 Differential output G H I J K L M
* EK3 Encoder is only available for NEMA 23 (57mm) Non-Captive, Kaptive linear actuator.
| Resolution(CPR) | 625 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | - | - | - | - | - | - | - | - | - |
| Differential output | - | C | - | - | - | - | - | - |
| Resolution(CPR) | 400 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | 0 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | C | D | E | F | G | H | I | J |
Power-Off Brake
Power Off Brake 2.3N·m [Available For Size 23 Motor]
Parameter
1. Rated Voltage : DC24V +/- 5%
2. Resistance : 140Ω +/- 5%
3. Power consumption : 4.5W
4. Hold Torque : >2.3N·m
5. Insulation Class B
6. Insulation Resistance : >100Mohm (DC500V)
7. Dielectrical Strength : 1000 VAC for 1 second
8. Retraction time : 50ms
9. Release time : 30ms
10. Gyration gap : <1°
11. Emergency brake time : > 200 times
12. Lifetime : > 2,000,000 times
13. Noise Level : <60db
