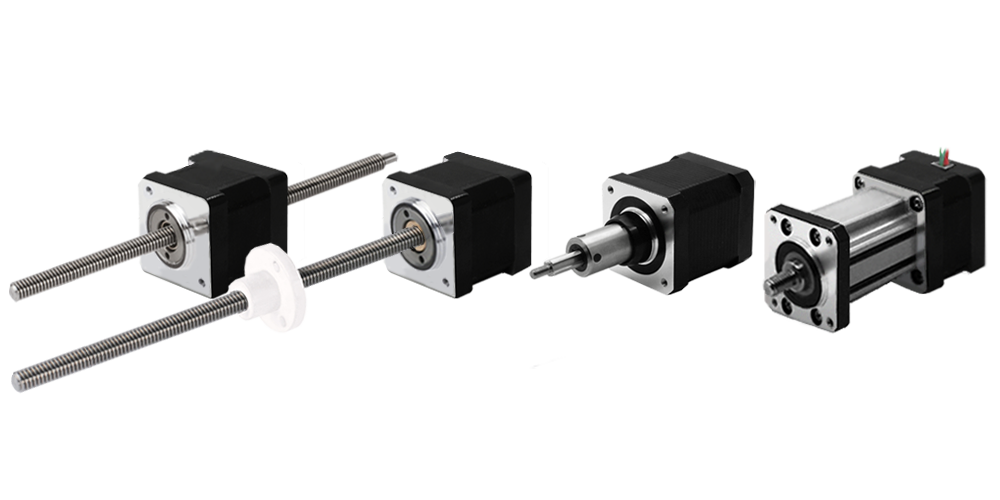

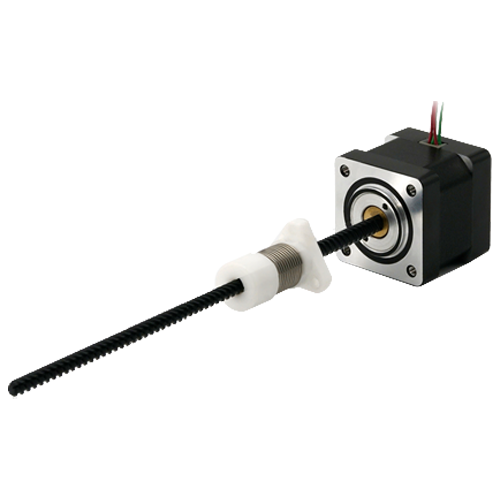

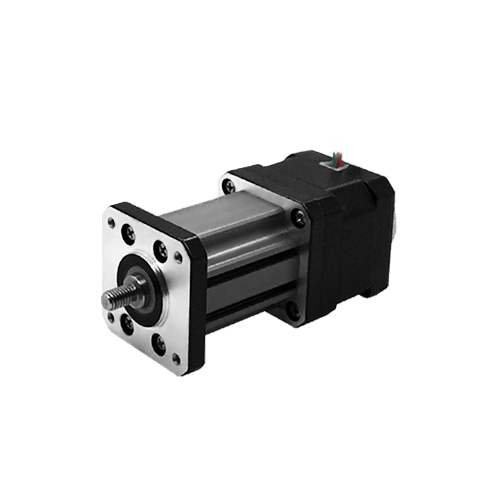

Size 17 [42mm] , providing up to 330N of continuous thrust.has four form factors available- External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
Motor Characteristics
| Motor | Voltage[V] | Current[A] | Resistance[Ω] | Inductance[mH] | Weight[g] | Lead Wire No. | Motor Length[mm] |
|---|---|---|---|---|---|---|---|
| 17-2105 | 7.2 | 0.5 | 14.4 | 19.8 | 254 | 4 | 34.1 |
| 17-2110 | 3.8 | 1 | 3.8 | 5 | 254 | 4 | 34.1 |
| 17-2115 | 2.85 | 1.5 | 1.9 | 2.2 | 254 | 4 | 34.1 |
| 17-2205 | 11 | 0.5 | 22 | 46 | 386 | 4 | 48.1 |
| 17-2212 | 4.5 | 1.2 | 3.8 | 8 | 386 | 4 | 48.1 |
| 17-2225 | 2.2 | 2.5 | 1 | 1.8 | 386 | 4 | 48.1 |
NOTE
Motor Insulation Class B, Motor Temperature Rise 80°C, Ambient Temperature -20℃~55℃
Available Lead Screw and Travel per Step
| Screw Dia.[inch] | Screw Dia.[mm] | Lead[inch] | Lead[mm] | Lead Code | Travel Per Step @ 1.8° [mm]* | Travel Per Step @ 0.9° [mm]* |
|---|---|---|---|---|---|---|
| 0.25 | 6.35 | 0.024 | 0.6096 | AA | 0.003 | 0.0015 |
| 0.236/0.25/0.315 | 6/6.35/8 | 0.0394 | 1 | AB | 0.005 | 0.0025 |
| 0.25 | 6.35 | 0.025 | 0.635 | A | 0.003175 | 0.0015 |
| 0.25 | 6.35 | 0.048 | 1.2192 | B | 0.006 | 0.003 |
| 0.25 | 6.35 | 0.05 | 1.27 | D | 0.0064 | 0.0032 |
| 0.25 | 6.35 | 0.0625 | 1.5875 | F | 0.0079 | 0.004 |
| 0.25 | 6.35 | 0.096 | 2.4384 | J | 0.0122 | 0.0061 |
| 0.25 | 6.35 | 0.1 | 2.54 | K* | 0.0127 | 0.0064 |
| 0.25 | 6.35 | 0.125 | 3.175 | L* | 0.0159 | 0.0079 |
| 0.25 | 6.35 | 0.192 | 4.8768 | Q | 0.024 | 0.0122 |
| 0.25 | 6.35 | 0.2 | 5.08 | R* | 0.0254 | 0.0127 |
| 0.25 | 6.35 | 0.25 | 6.35 | S* | 0.0318 | 0.0159 |
| 0.25 | 6.35 | 0.3333 | 8.4667 | U | 0.0423 | 0.0212 |
| 0.25 | 6.35 | 0.384 | 9.7536 | W* | 0.0488 | 0.0244 |
| 0.25 | 6.35 | 0.5 | 12.7 | Y* | 0.0635 | 0.0318 |
| 0.25 | 6.35 | 1.0 | 25.4 | Z* | 0.127 | 0.0635 |
| 0.25 | 6.35 | 0.0313 | 0.794 | N | 0.00794 | 0.00397 |
| 0.315 | 8 | 0.1575 | 4 | M | 0.02 | 0.01 |
| 0.315 | 8 | 0.315 | 8 | T | 0.04 | 0.02 |
| 0.236/0.315 | 6.35/8 | 0.0787 | 2 | G | 0.01 | 0.005 |
| 0.236/0.315 | 6/8 | 0.1969 | 5 | E | 0.025 | 0.0125 |
| 0.315 | 8 | 0.3937 | 10 | C | 0.05 | 0.025 |
* External Lead Screw Linear Actuator can be structured with ф9.525mm diameter of screw.
* 9.525mm diameter screw can be applied in External Type* Value truncated

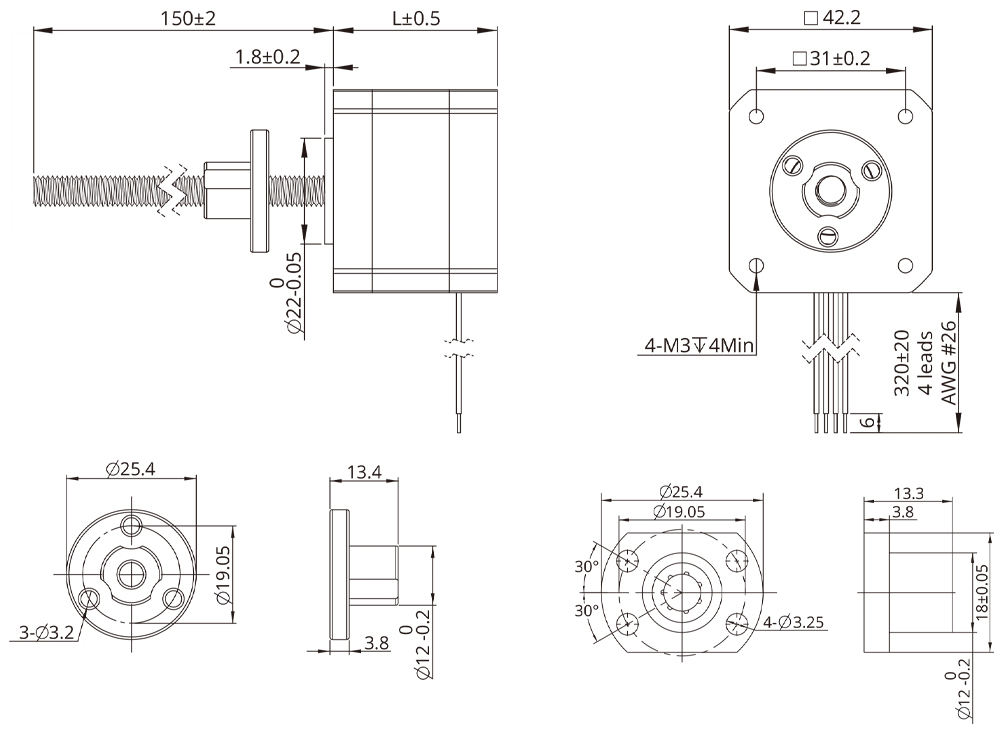

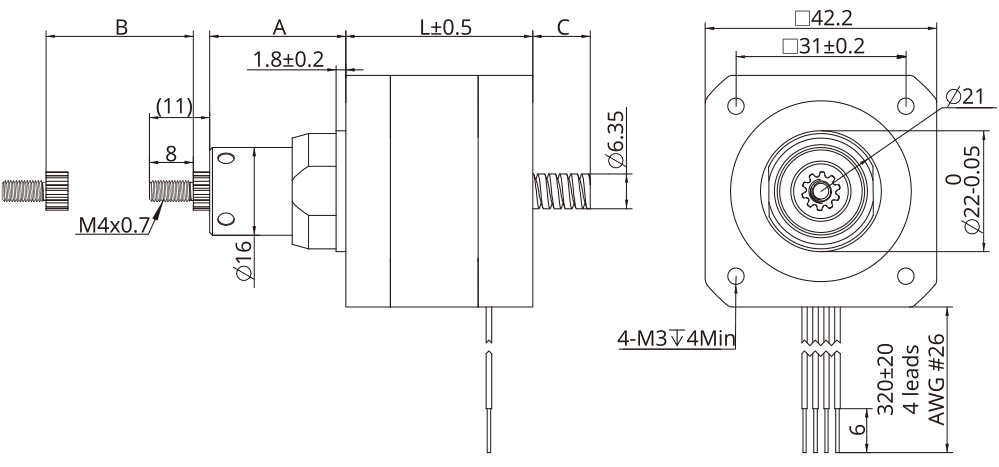

Dimensional Drawings

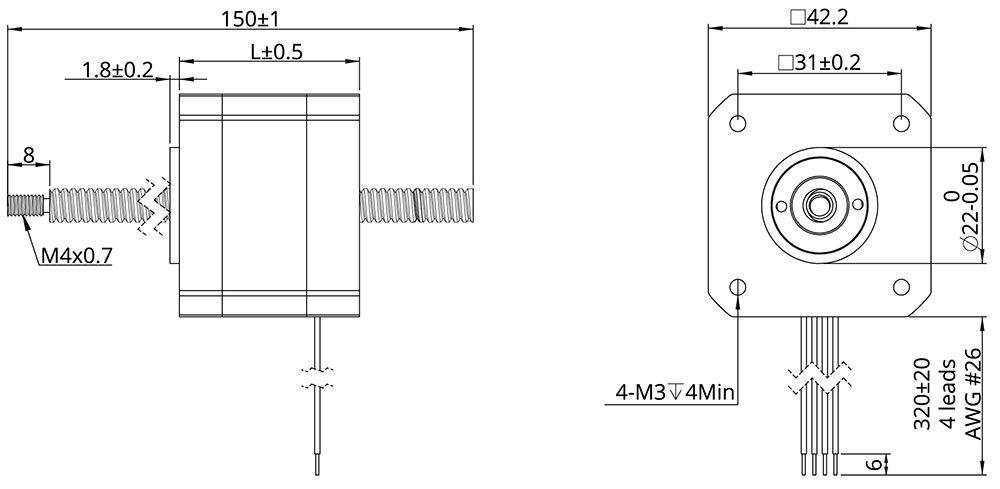

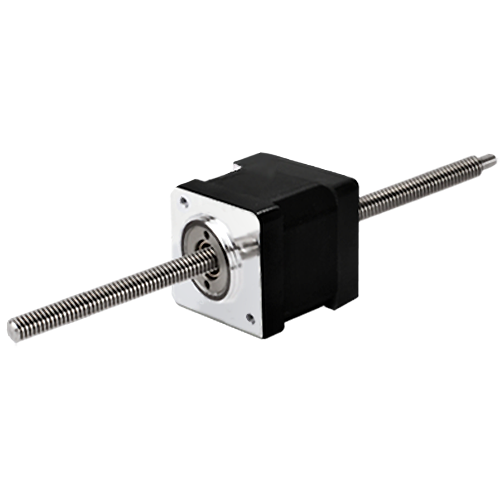

External
Non-Captive

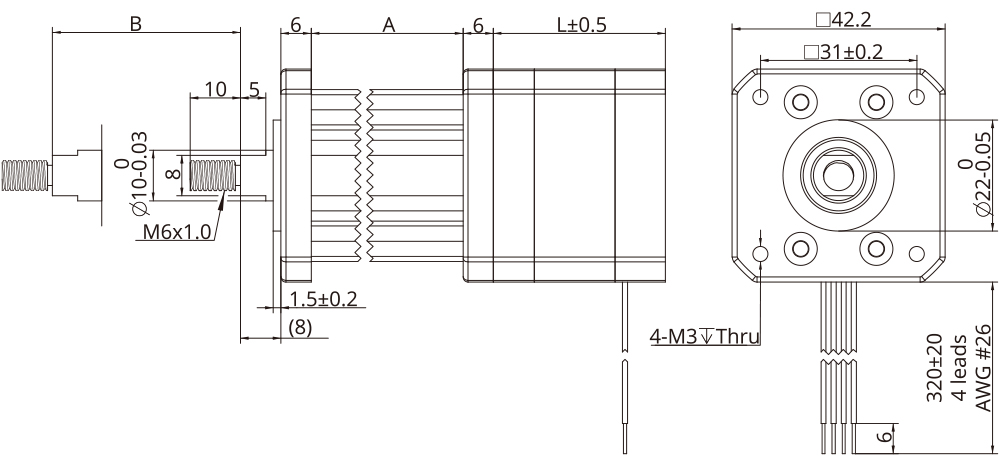

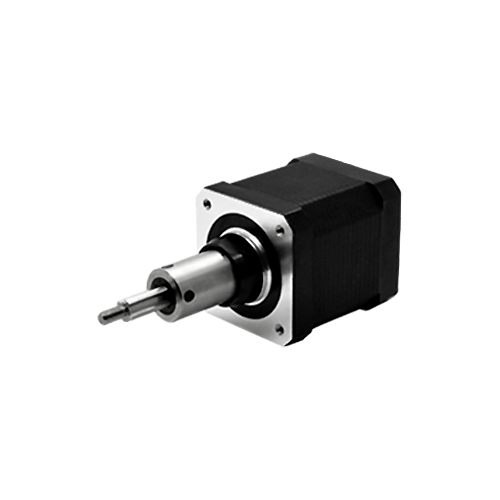

Captive
Stroke Specification
Size A
(mm)Stroke B
(mm)Size L (mm) 35.70 12.70 Single Stack
Motor
34.1Double Stack
Motor
48.142.05 19.05 48.40 25.40 54.80 31.80 61.10 38.10 73.80 50.80 86.50 63.50 Kaptive
Stroke Specification
Size A
(mm)Stroke B
(mm)Size C (mm) Single Stack
L=34.1Double Stack
L=48.118.50 12.70 4.10 0.00 24.85 19.05 10.45 5.45 31.20 25.40 16.80 11.80 37.55 31.75 23.15 18.15 43.90 38.10 29.50 24.5 56.60 50.80 42.20 37.20 69.30 63.50 54.90 49.90

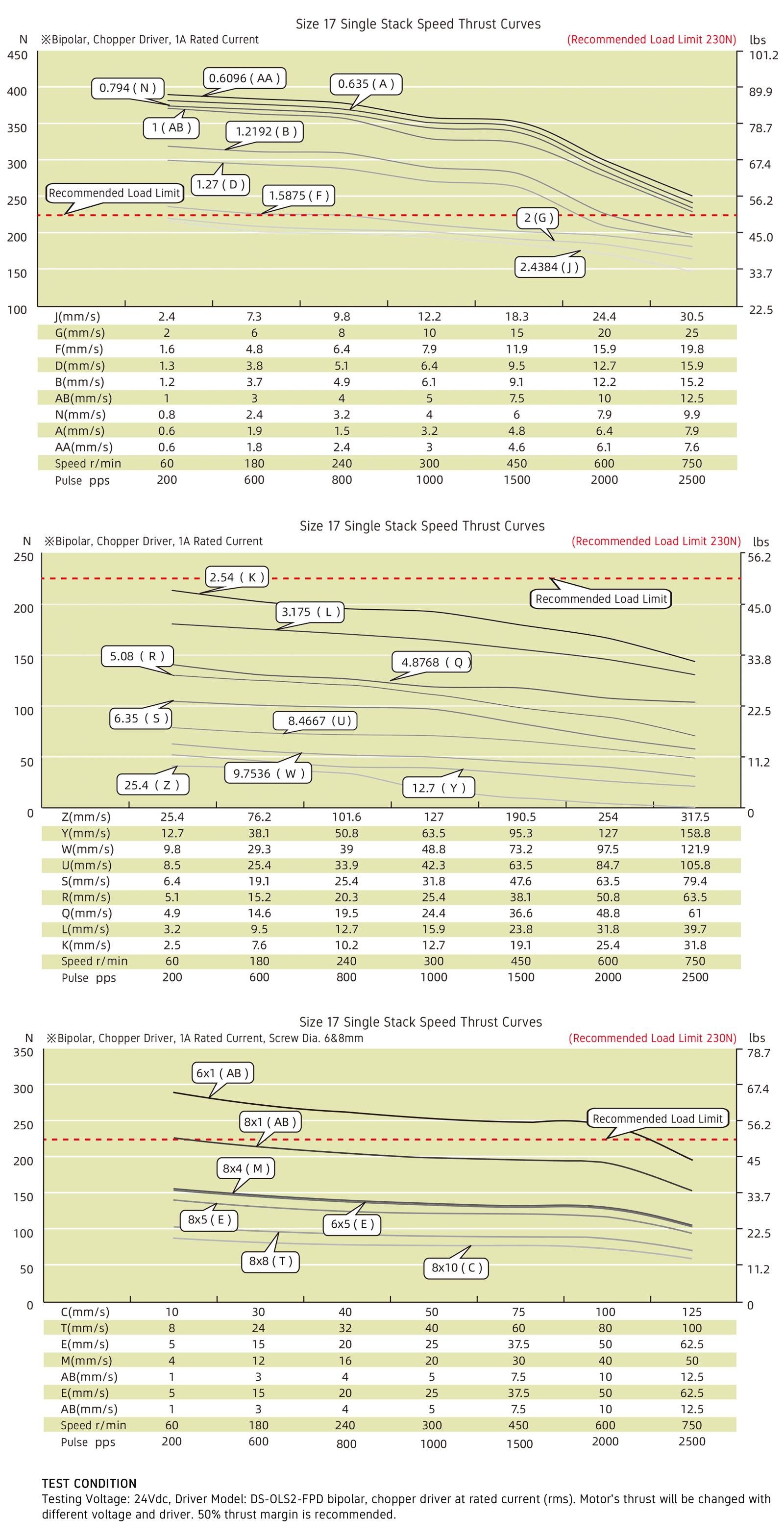

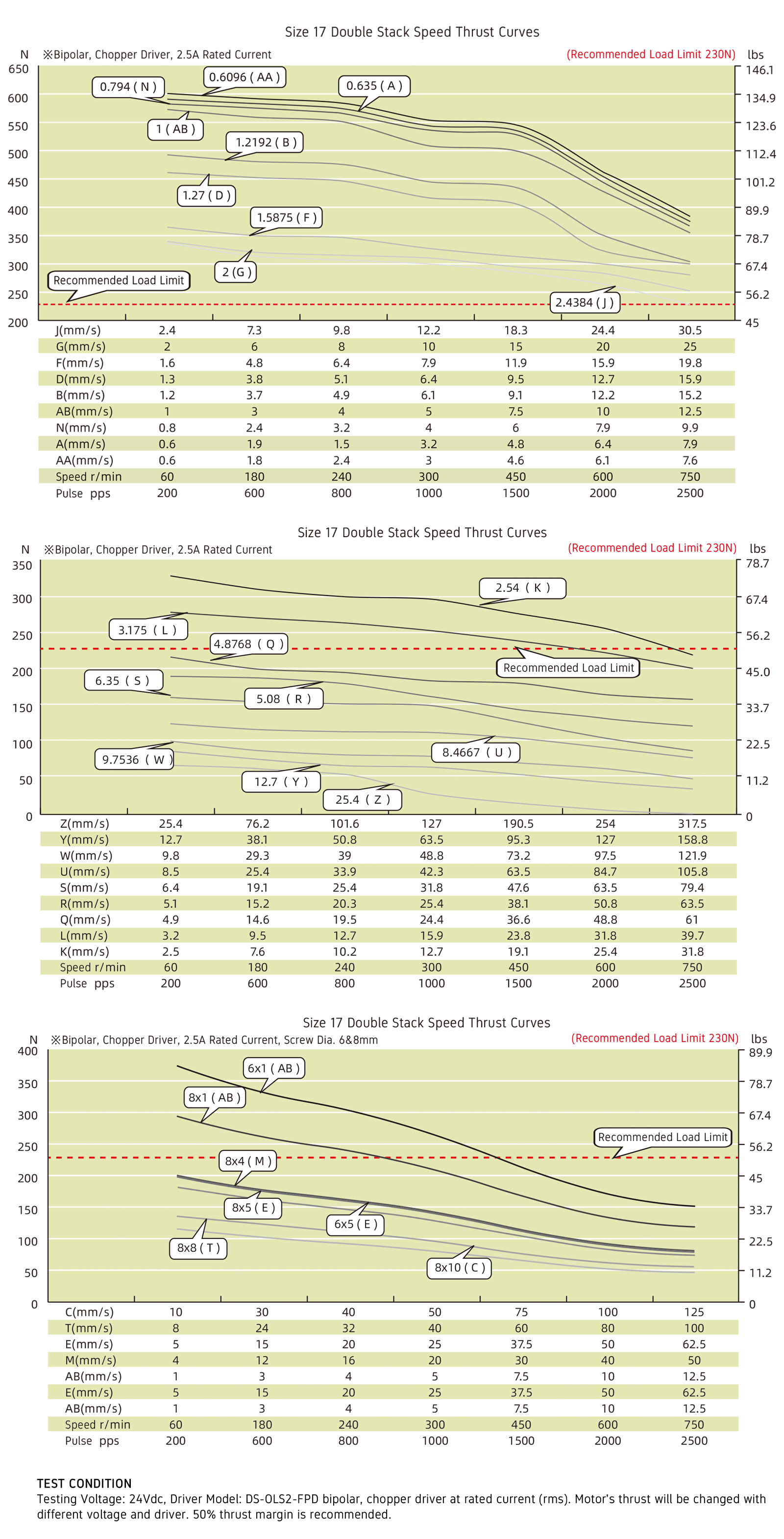

Speed Thrust Curves
Single Stack
Double Stac
Options
Screw End Machining
Teflon Coating

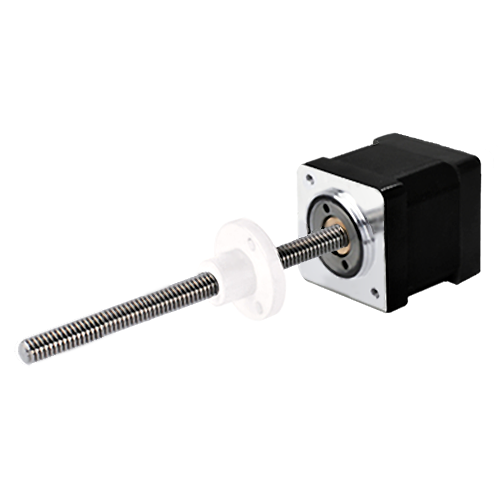

If customer's applications require greaseless screw and nut combination, we offer teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options and all types of linear actuators such as External, Non-Captive, Electric Cylinder and Kaptive.
In addition, anti-backlash nut also can be combined with teflon coated lead screw too.

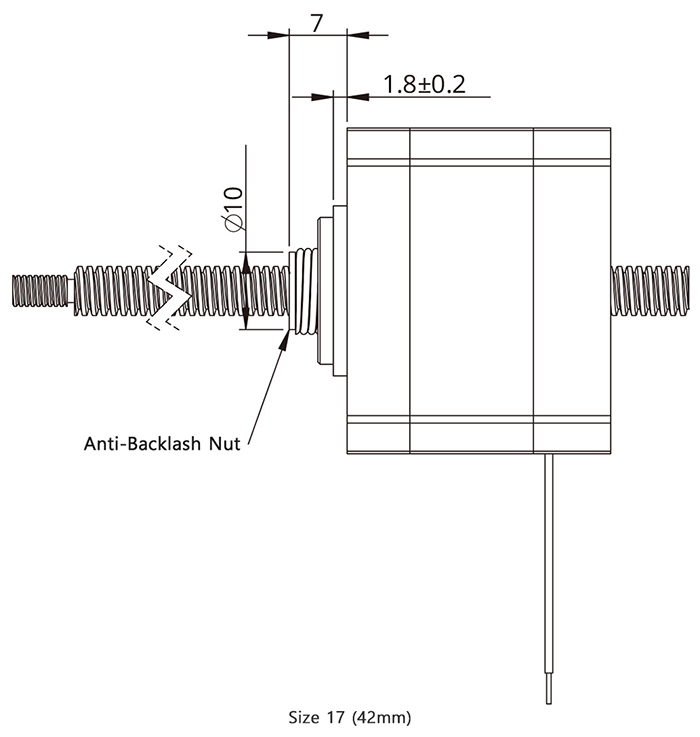

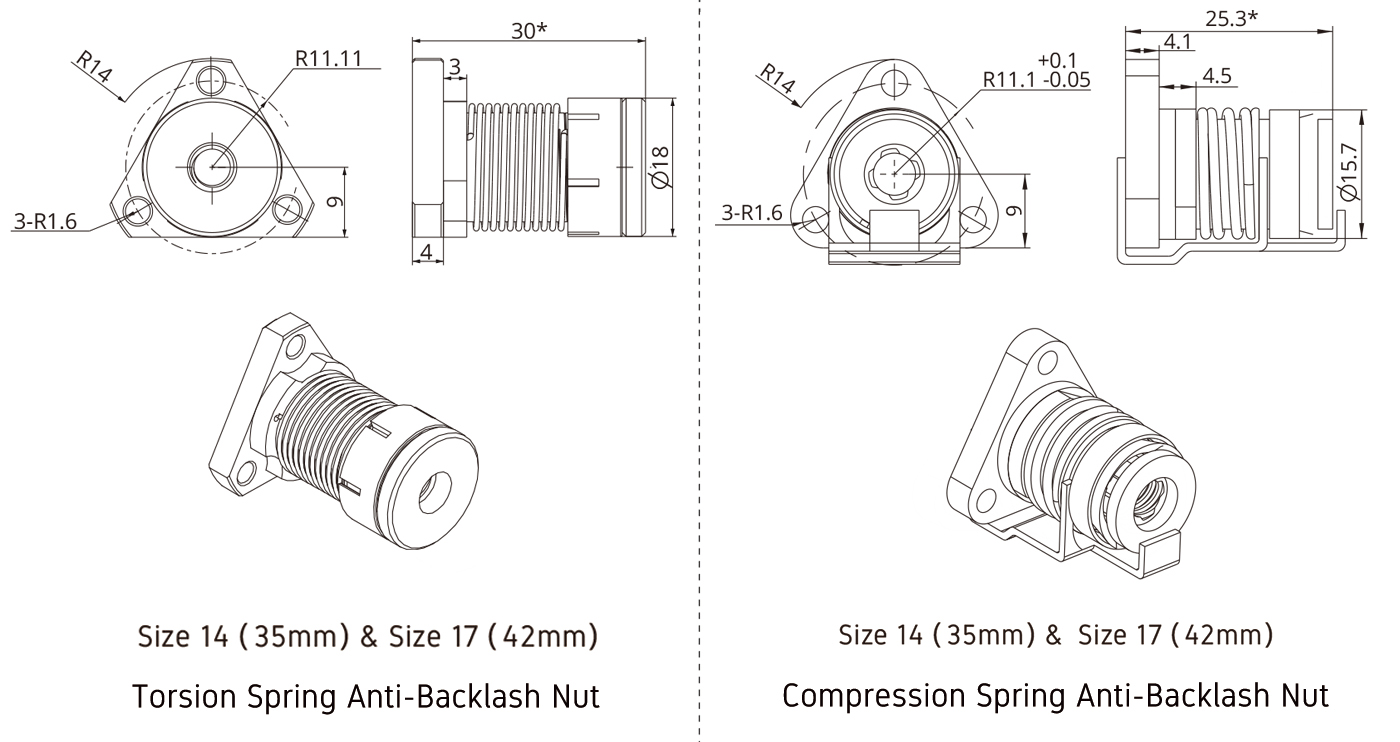

External Anti-Backlash Nut
* According to different screw lead code selection, length of Anti-Backlash nut can be changed.
Non-Captive Anti-Backlash Nut

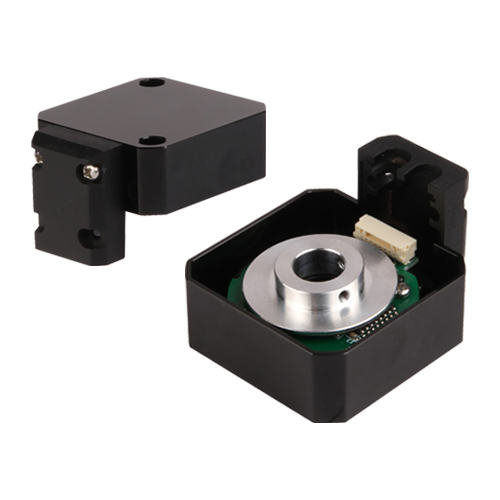

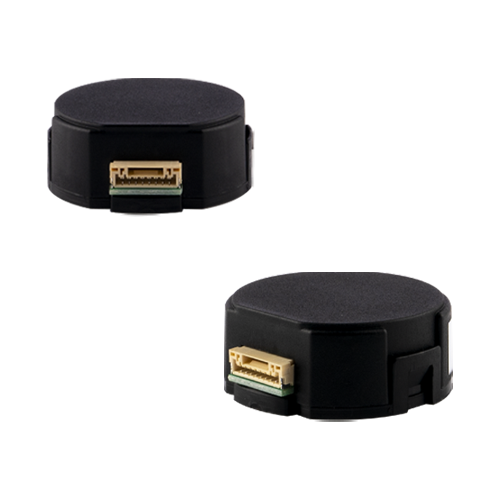

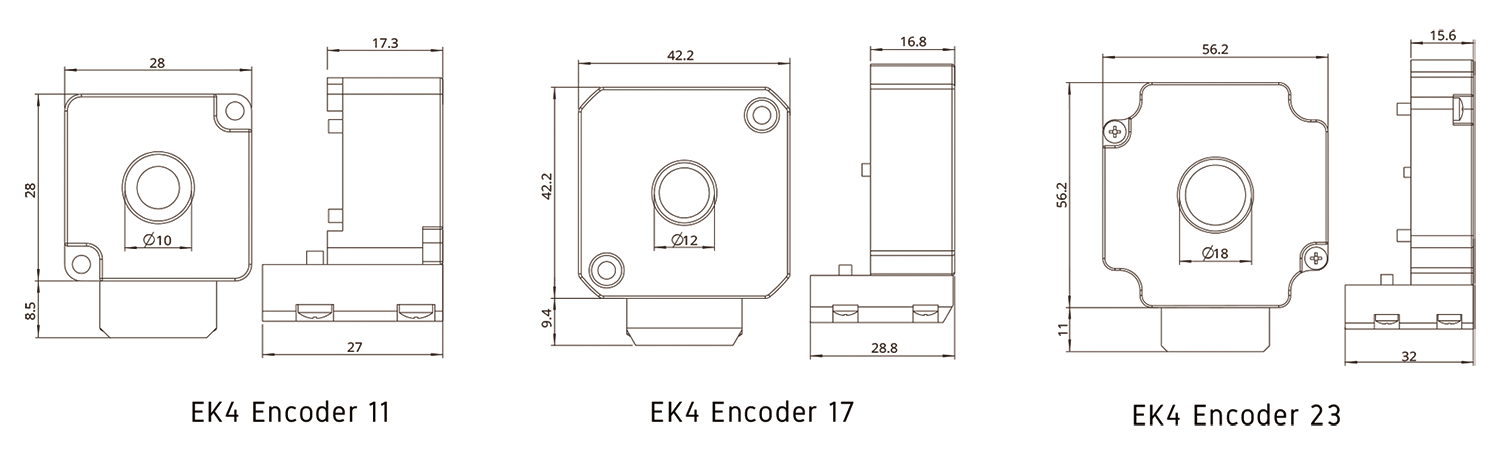

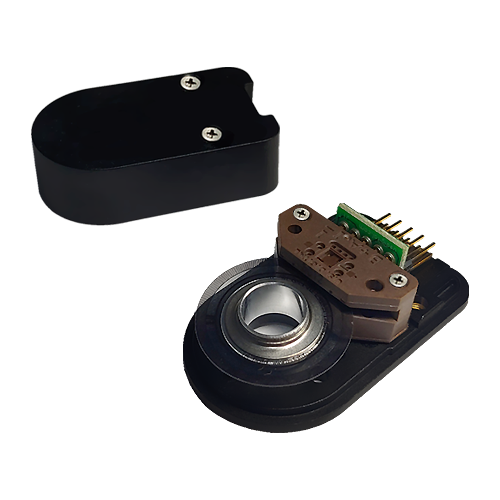

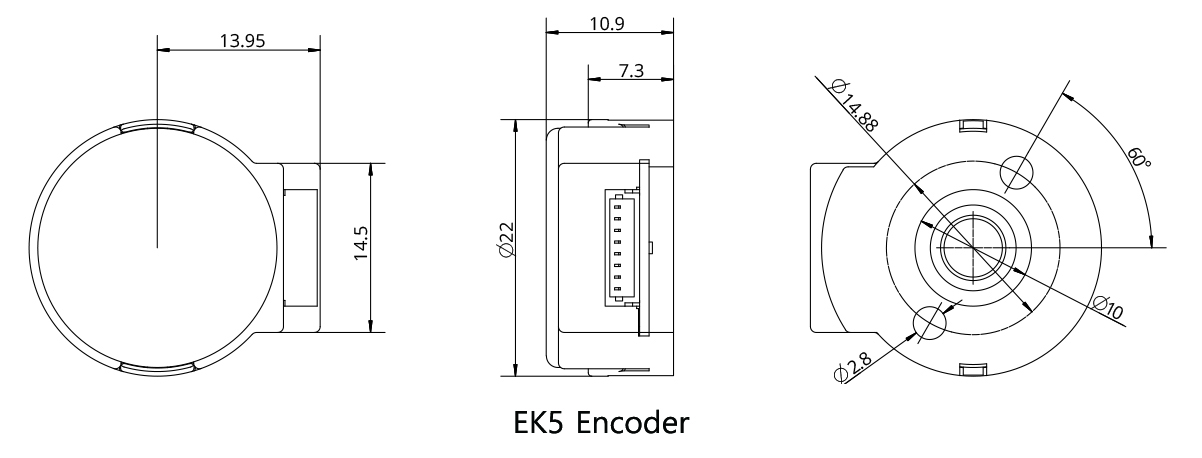

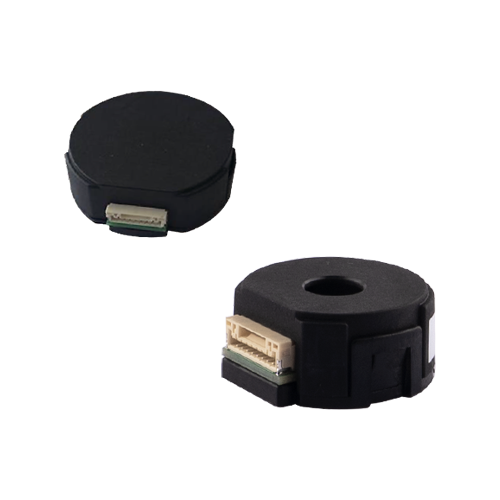

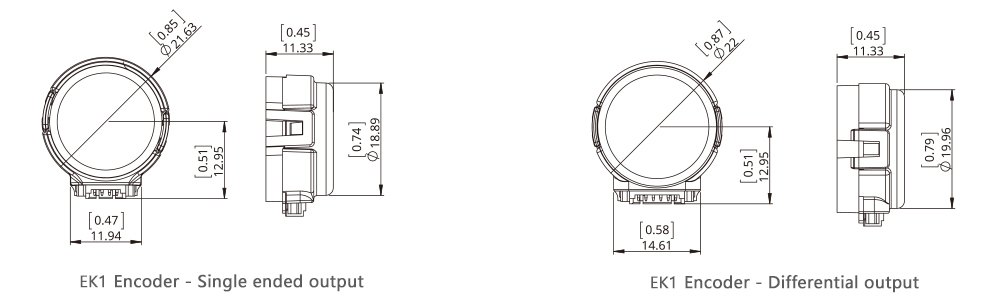

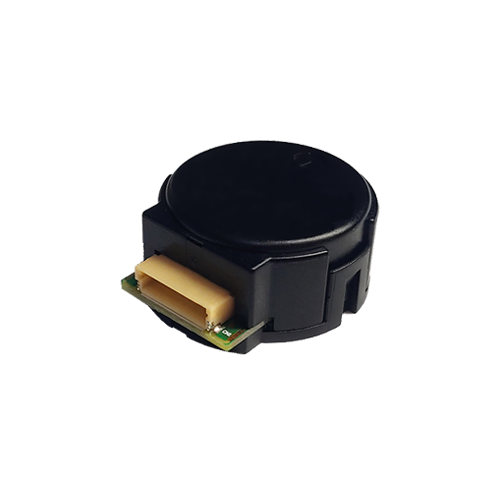

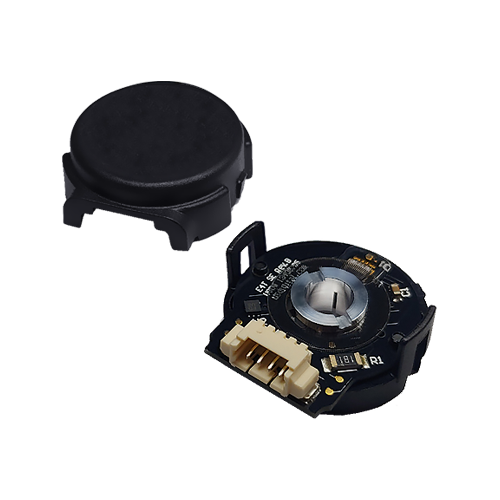

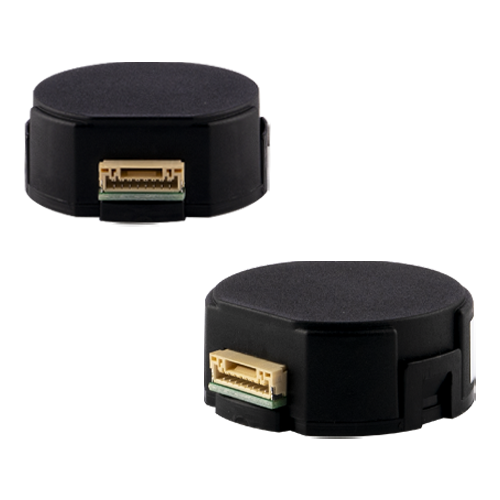

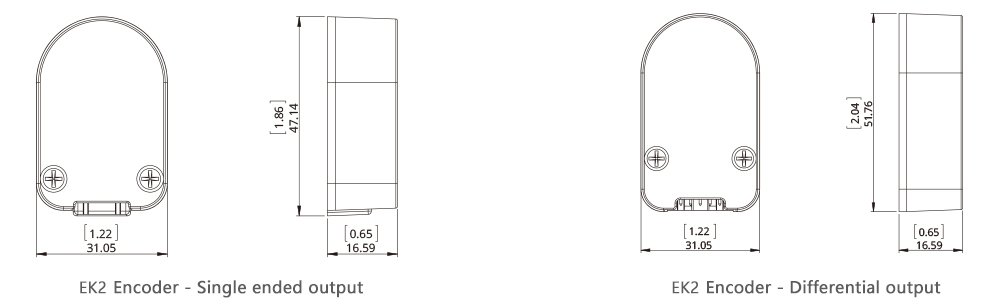

Encoder Option
Resolution(CPR) 100 108 120 125 128 200 250 256 300 Single ended output 0 1 2 3 4 5 6 7 8 Differential output A B C D E F G H I Resolution(CPR) 360 400 500 1000 512 720 800 Single ended output 9 10 11 12 13 14 15 Differential output J K L M N O P * EK1 Encoder is only available for NEMA 17 (42mm) External, Captive linear actuator.
Resolution(CPR) 50 100 192 200 250 256 360 400 Single ended output 0 1 2 3 4 5 6 7 Differential output A B C D E F G H Resolution(CPR) 500 720 900 1000 1250 2000 2500 4000 5000 Single ended output 8 9 10 11 12 Differential output I J K L M N O P Q
Resolution(CPR) 625 800 1000 1250 1600 2000 2500 3200 4000 Single ended output - - - - - - - - - Differential output - C - - - - - -
Resolution(CPR) 360 500 512 1000 1024 2000 2048 Single ended output 0 1 2 3 4 5 6 Differential output A B C D E F G

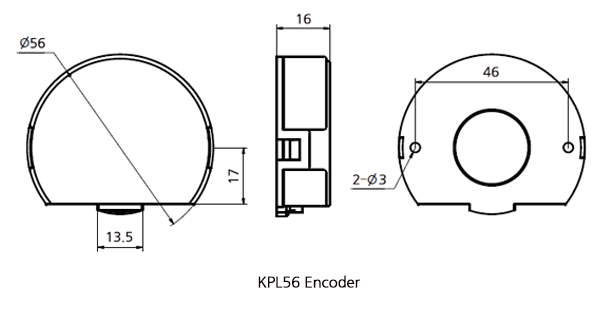

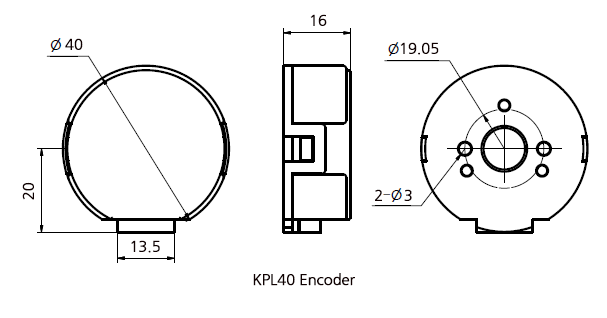

Resolution(CPR) 400 500 1000 2000 Single ended output 0 1 3 6 Differential output A B D G * KPL 28 Encoder is only available for NEMA 17 (42mm) External, Captive linear actuator.
Resolution(CPR) 400 800 1000 1250 1600 2000 2500 3200 4000 Single ended output 0 2 3 4 5 6 7 8 9 Differential output A C D E F G H I J
Resolution(CPR) 400 800 1000 1250 1600 2000 2500 3200 4000 Single ended output 0 2 3 4 5 6 7 8 9 Differential output A C D E F G H I J * KPL 56 Encoder is only available for NEMA 17 (42mm) Kaptive linear actuator.

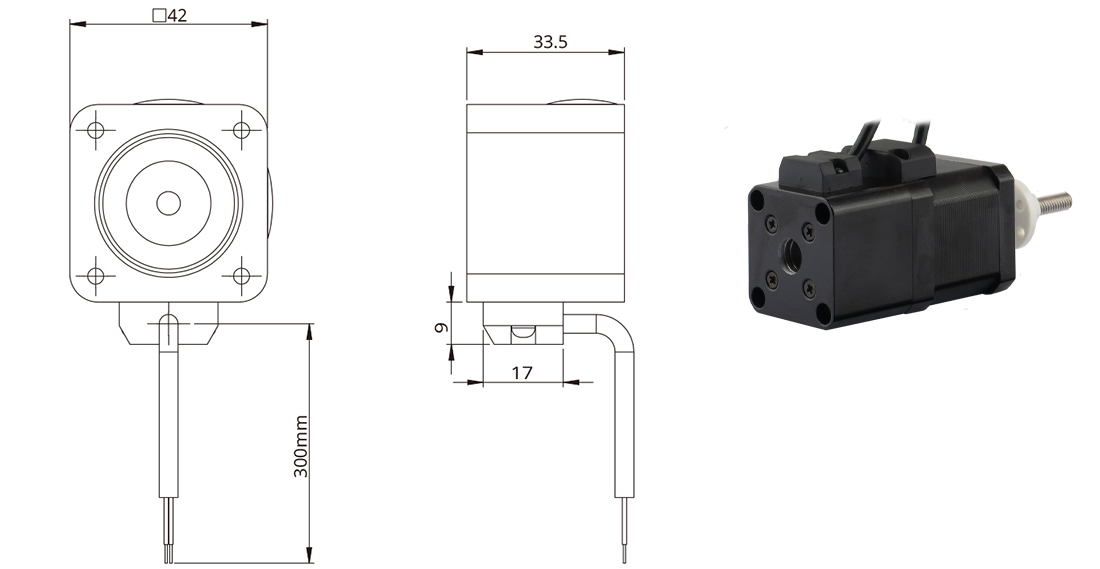

Power-Off Brake
Power Off Brake 0.5N·m [Available For Size 17 Motor]
Parameter
1. Rated Voltage : DC24V +/- 5%
2. Resistance : 297Ω +/- 5%
3. Power consumption : 2W
4. Hold Torque : >0.5N·m
5. Insulation Class B
6. Insulation Resistance : >100Mohm (DC500V)
7. Dielectrical Strength : 1000 VAC for 1 second
8. Retraction time : 50ms
9. Release time : 30ms
10. Gyration gap : <1°
11. Emergency brake time : > 200 times
12. Lifetime : > 2,000,000 times
13. Noise Level : <60db
