Size 17 [42mm]

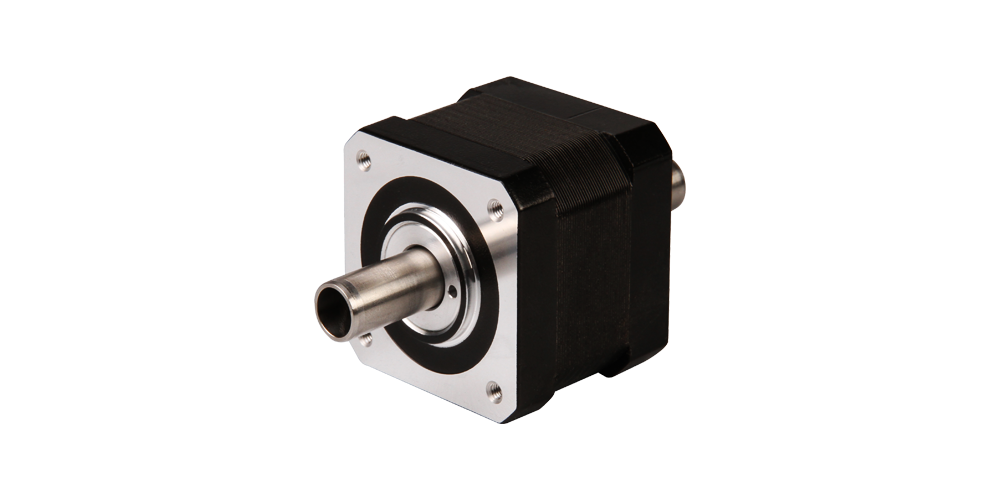

The size 17 [42mm] Hollow Shaft Stepper Motor has Max. 0.48N·m of holding torque.
Motor Characteristics
| Model No. | Rated Voltage (V) | Current (A) | Resistance (Ω) | Inductance (mH) | Holding Torque (N·m) | Detent Torque (N·m) | Motor length (mm) |
|---|---|---|---|---|---|---|---|
| 17HS2034 | 3.8 | 1.0 | 3.6 | 5.0 | 0.25 | 0.014 | 34.1 |
| 17HS2048 | 2.25 | 2.5 | 1.0 | 1.8 | 0.48 | 0.018 | 48.1 |

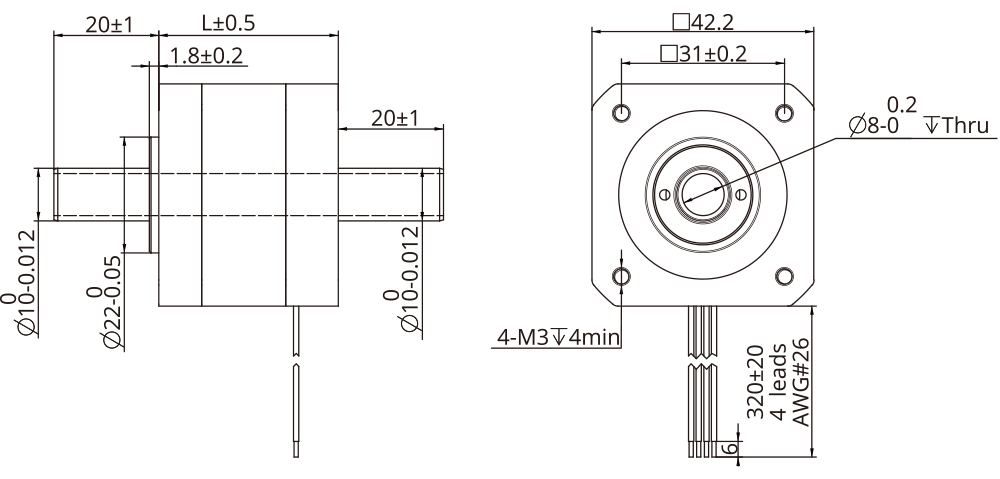

Dimensional Drawing

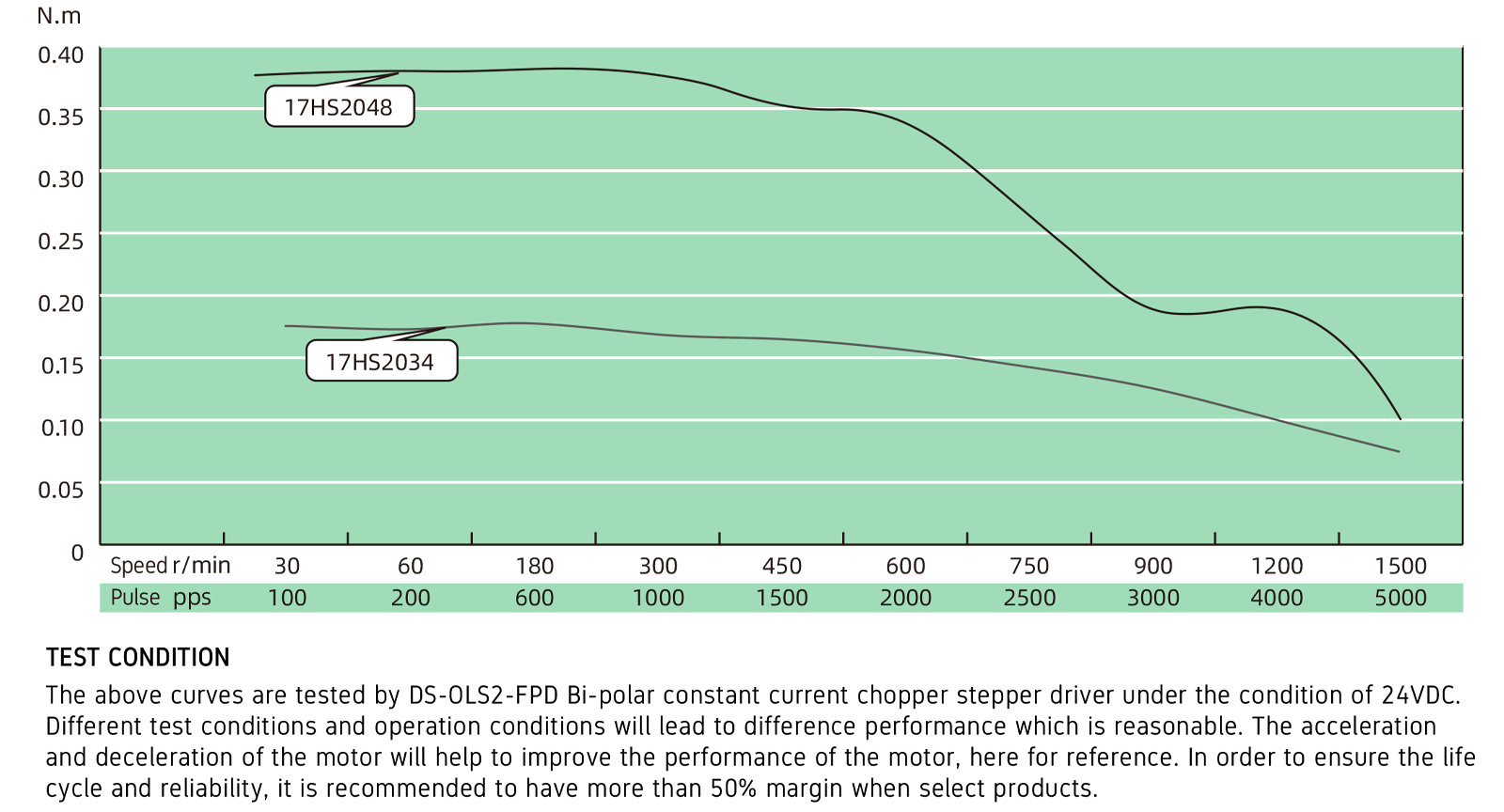

Torque Performance Curves
Options

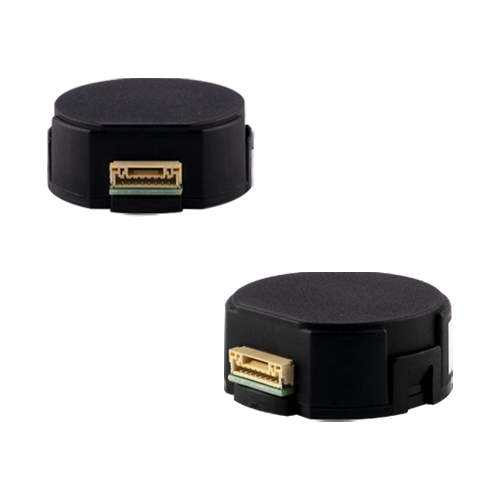

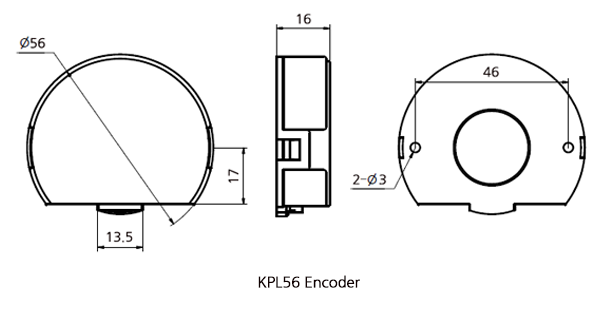

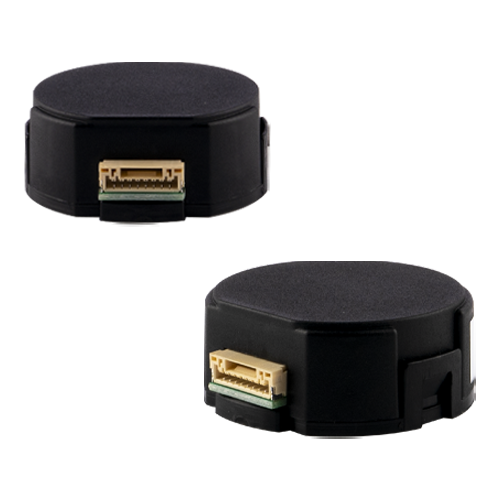

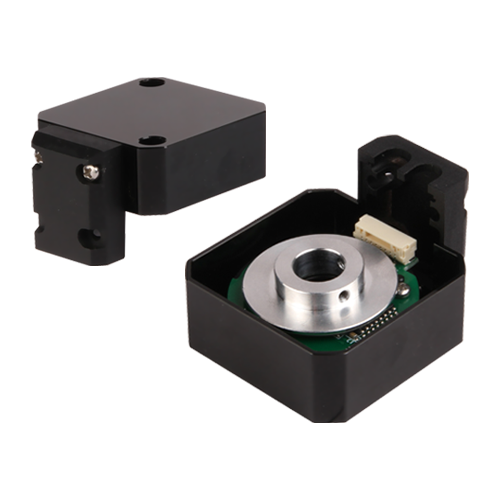

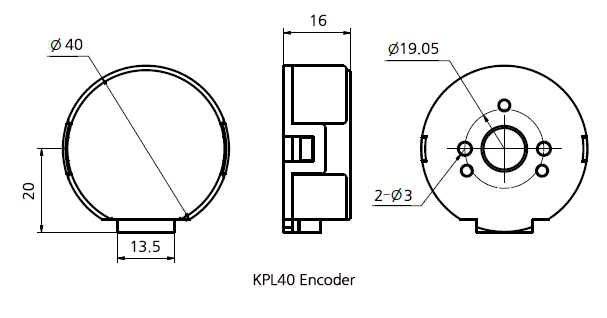

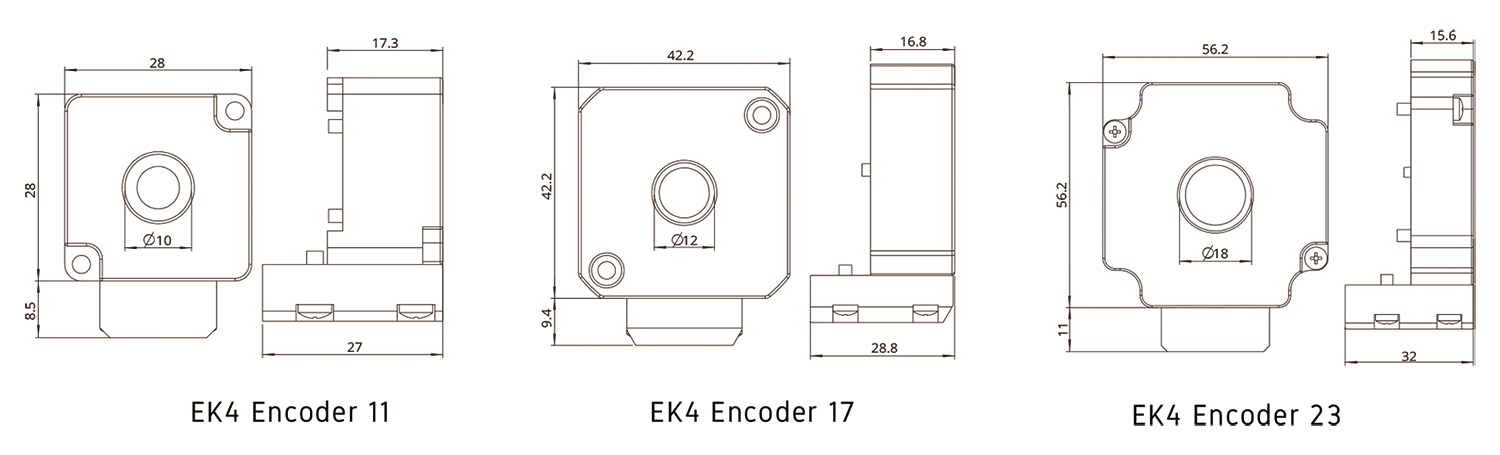

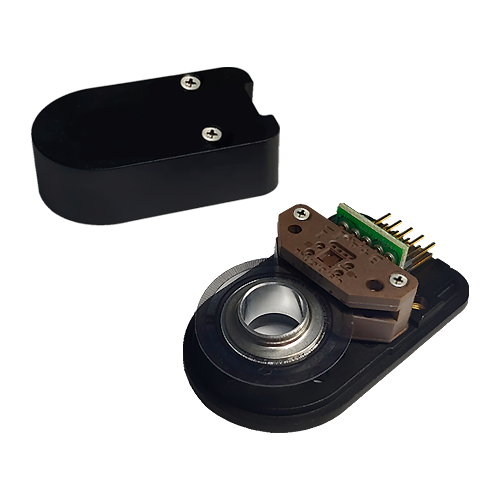

Encoder Option
| Resolution(CPR) | 50 | 100 | 192 | 200 | 250 | 256 | 360 | 400 | 500 | 720 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | B | C | D | E | F | G | H | I | J |
| Resolution(CPR) | 900 | 1000 | 1250 | 2000 | 2500 | 4000 | 5000 |
| Single ended output | 10 | 11 | 12 | ||||
| Differential output | K | L | M | N | O | P | Q |
| Resolution(CPR) | 625 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | - | - | - | - | - | - | - | - | - |
| Differential output | - | C | - | - | - | - | - | - |
| Resolution(CPR) | 400 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | 0 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | C | D | E | F | G | H | I | J |
| Resolution(CPR) | 400 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | 0 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | C | D | E | F | G | H | I | J |
