Size 14 [35mm]
The size 14 [35mm] Hollow Shaft Stepper Motor has Max. 0.36N·m of holding torque.
Motor Characteristics
| Model No. | Rated Voltage (V) | Current (A) | Resistance (Ω) | Inductance (mH) | Holding Torque (N·m) | Detent Torque (N·m) | Motor length (mm) |
|---|---|---|---|---|---|---|---|
| 14HS2033 | 3.5 | 1.0 | 3.5 | 3.6 | 0.19 | 0.008 | 33.6 |
| 14HS2045 | 6 | 1.0 | 6 | 7.2 | 0.36 | 0.013 | 45.6 |

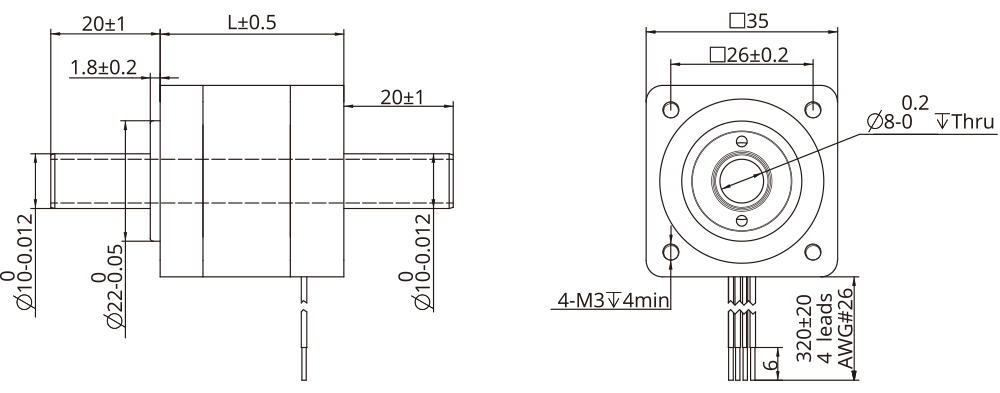

Dimensional Drawing

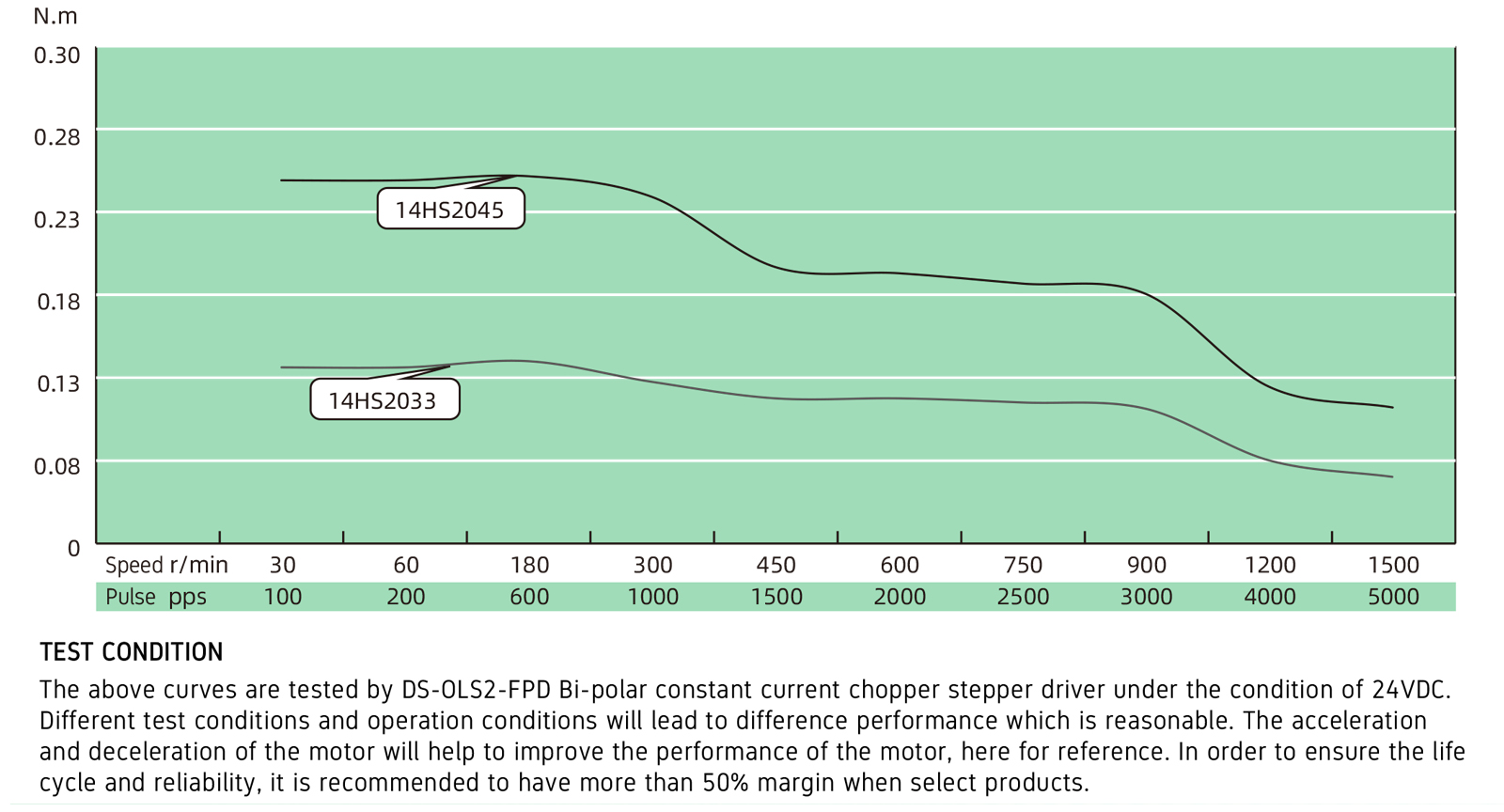

Torque Performance Curves
Options

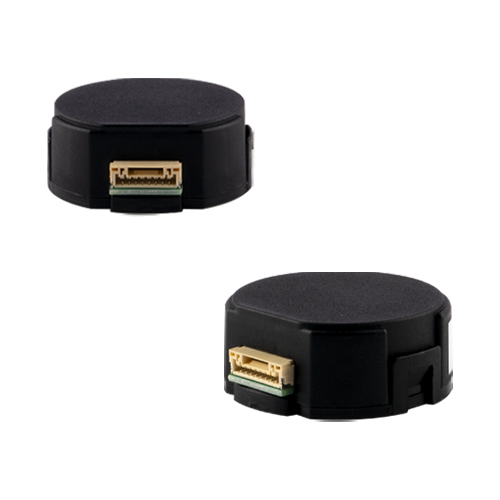

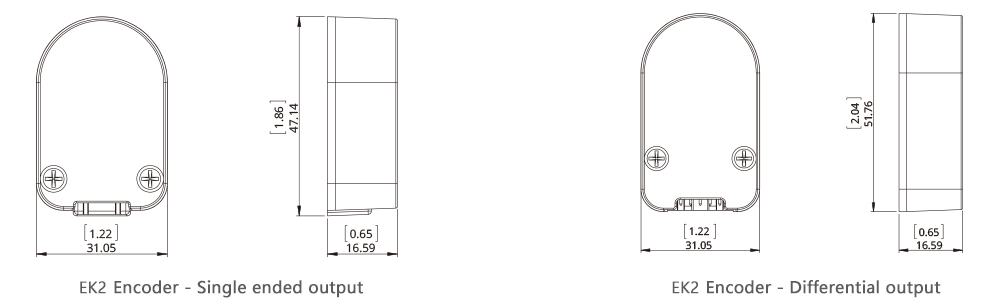

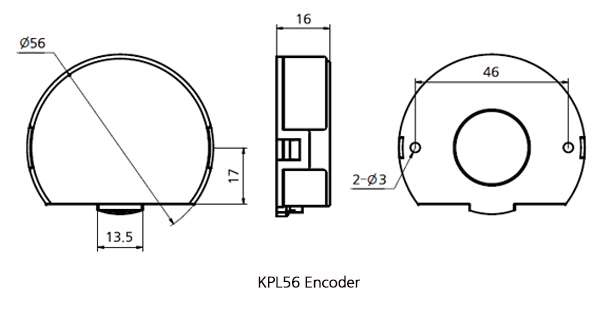

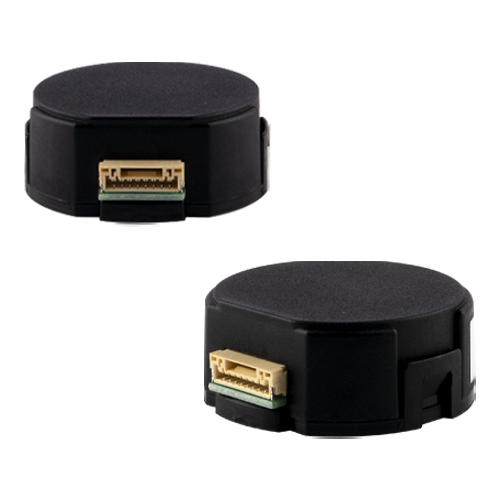

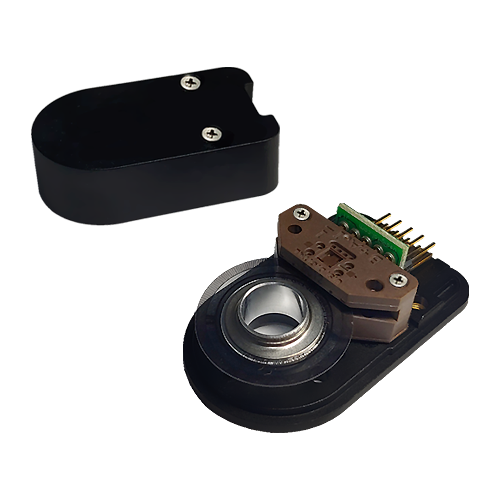

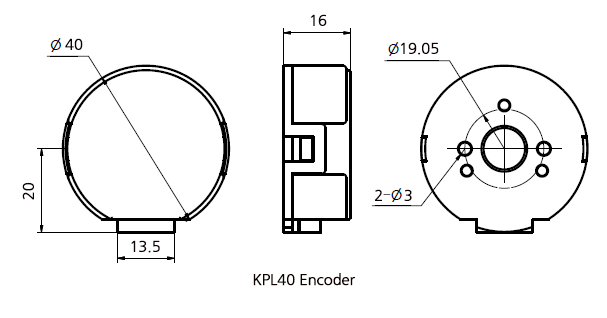

Encoder Option
| Resolution(CPR) | 50 | 100 | 192 | 200 | 250 | 256 | 360 | 400 | 500 | 720 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | B | C | D | E | F | G | H | I | J |
| Resolution(CPR) | 720 | 900 | 1000 | 1250 | 2000 | 2500 | 4000 | 5000 |
| Single ended output | 9 | 10 | 11 | 12 | ||||
| Differential output | J | K | L | M | N | O | P | Q |
| Resolution(CPR) | 400 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | 0 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | C | D | E | F | G | H | I | J |
| Resolution(CPR) | 400 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | 0 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | C | D | E | F | G | H | I | J |
