70 Series(NEMA28) brushless DC servo motor

70Series(NEMA28) brushless DC servo motor

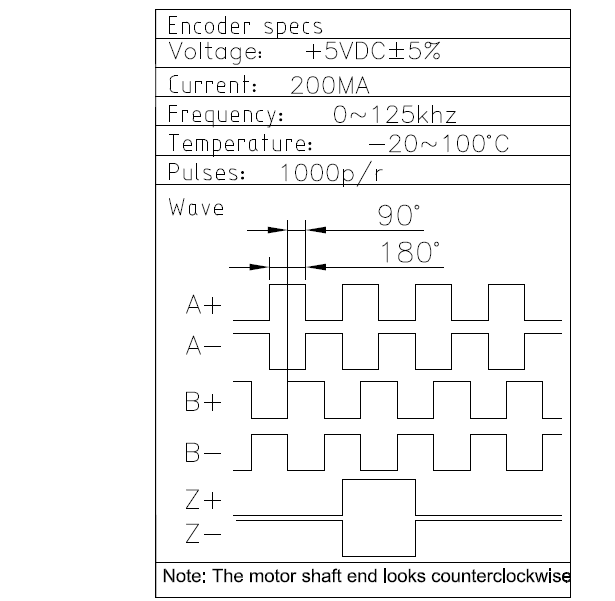

Encoder signal waveform



Electrical Specifications



Series   Model

Rated power

Rated  voltage

Rated  current

Number

of

poles

Rated speed

Rated  torque

Peak

torque

Encoder

Length

  Weight

W

VDC

A


pm

N.m

N.m

P/R

mm

Kg

70SF3A60-240-1000Z

157

24

8.7

8

3000

0.5

1.5

1000

88

1.3

70SF3A90-440-1000Z

314

48

8.7

8

3000

1

3

1000

118

2.1

70SF3A120-440-1000Z

471

48

13.1

8

3000

1.5

4.5

1000

148

2.8

Reverse potential phase sequence diagram

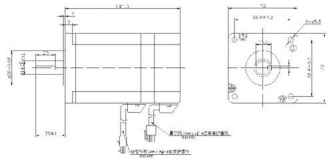

Dimensions


Connection definition


Encoder lead definition

Power cord


1

2

3

4

5

6

7

8

9

10

11

12

13

14

1

2

3

color

black

red

blue

Yellow-black

green

Green and yellow

white

White-black

palm tree

Brown and black

ash

Gray-black

orange

Orange black

yellow

green

blue

signal

GND

+5V

U+

U-

V+

V-

W+

W-

A+

A+

B+

B-

I+

I-

U

V

W
