57 Series(NEMA23) brushless DC servo motor
57Series(NEMA23) brushless DC servo motor
Encoder signal waveform
Electrical Specifications | ||||||||||
Series Model | Rated power | Rated voltage | Rated current | Number of poles | Rated speed | Rated torque | Peak torque | Torque constant | Length | Weight |
W | VDC | A | rpm | N.m | N.m | P/R | mm | Kg | ||
57BLF3A50-240-1000Z | 62 | 24 | 3.2 | 8 | 3000 | 0.2 | 0.6 | 1000 | 76 | 0.6 |
57BLF3A70-240-1000Z | 125 | 24 | 6.5 | 8 | 3000 | 0.4 | 1.2 | 1000 | 97 | 1 |
57BLF3A90-240-1000Z | 188 | 24 | 9.6 | 8 | 3000 | 0.6 | 1.8 | 1000 | 118 | 1.4 |
Reverse potential phase sequence diagram

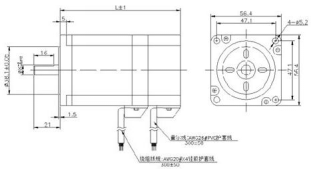

Dimensions
Connection definition
Encoder wiring definition | Hall wiring definitions | Power cord | ||||||||||||||
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 1 | 2 | 3 | 4 | 5 | 1 | 2 | 3 | |
color | black | red | blue | Blue-black | green | Green and yellow | yellow | Yellow-black | black | red | yellow | green | blue | yellow | green | blue |
signal | GND | +5V | A+ | A- | B+ | B- | I+ | l- | GND | +5V | U | V | W | U | V | W |
*We can customize products according to customer requirements
