60mm OD Planetary Gearbox.Permissible Load Range: 3N.m~30N.m
Motor Technical Data
Type | Power W | Voltage V | Frequency Hz | Current A | Starting torque N.m | Rated torque N.m | Rated speed r/min | Capacitor μF/VAC | Operating mode |
80YN30-2 | 30 | 220 | 50 | 0.32 | 0.20 | 0.24 | 1250 | 2.5/450 | 30min |
Gear Motor Technical Data
80YN30-2 AC Motor
Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 96 | 121 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 |
No-load speed r/min | 403 | 341 | 112 | 97 | 81 | 63 | 31 | 26 | 22 | 19 | 15 | 12 |
Rated speed r/min | 347 | 294 | 96 | 83 | 69 | 54 | 27 | 23 | 19 | 16 | 13 | 10 |
Rated torque N.m | 0.78 | 0.92 | 2.5 | 2.9 | 3.5 | 4.5 | 8.2 | 9.6 | 11 | 14 | 17 | 21 |
Length(L) mm | 37.8 | 37.8 | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 |
Weight kg | 1.4 | 1.4 | 1.5 | 1.5 | 1.5 | 1.5 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
Continue the above form
Reduction ratio | 154 | 187 | 220 | 260 |
Number of geartrains | 4 | 4 | 4 | 4 |
No-load speed r/min | 9.4 | 7.8 | 6.6 | 5.6 |
Rated speed r/min | 8.1 | 6.7 | 5.7 | 4.8 |
Rated torque N.m | 24 | 29 | 30 | 30 |
Length(L) mm | 71.9 | 71.9 | 71.9 | 71.9 |
Weight kg | 1.85 | 1.85 | 1.85 | 1.85 |

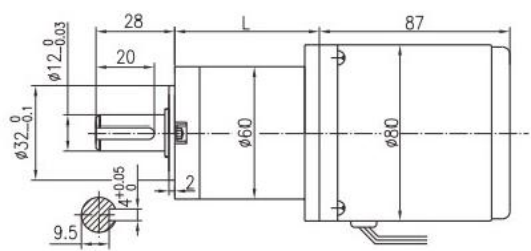

Dimensions
