42mm OD Planetary Gearbox.Permissible Load Range: 2N.m~15N.m
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Bated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
42ZY68P- 1270 | 12 | 7000 | 1.2 | 5700 | 71 | 41.3 | 5.5 | 310 | 20.5 |
42ZY68P- 2470 | 24 | 7000 | 0.6 | 5900 | 58 | 34.7 | 2.1 | 320 | 10.8 |
Gear Motor Technical Data
42ZY68P-1270 DC Motor
Reduction ratio | 3.5 | 14 | 17 | 21 | 49 | 61 | 84 | 104 | 126 | 172 | 212 | 294 |
Number of gear trains | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
Length(L) mm | 32.5 | 39.2 | 39.2 | 39.2 | 46.0 | 46.0 | 46.0 | 46.0 | 46.0 | 52.5 | 52.5 | 52.5 |
No-load speed r/min | 2000 | 500 | 412 | 333 | 143 | 115 | 83 | 67 | 56 | 41 | 33 | 24 |
Rated speed r/min | 1629 | 407 | 335 | 271 | 116 | 93 | 68 | 55 | 45 | 33 | 27 | 19 |
Rated torque N.m | 0.22 | 0.81 | 0.98 | 1.2 | 2.8 | 3.5 | 4.8 | 6.0 | 7.2 | 8.9 | 11 | 15 |
N.m Max. permissible load in a short time | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 30 | 30 | 30 |
42ZY68P-2470 DC Motor
Reduction ratio | 3.5 | 14 | 17 | 21 | 49 | 61 | 84 | 104 | 126 | 172 | 212 | 294 |
Number of gear trains | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
Length(L) mm | 32.5 | 39.2 | 39.2 | 39.2 | 46.0 | 46.0 | 46.0 | 46.0 | 46.0 | 52.5 | 52.5 | 52.5 |
No-load speed r/min | 2000 | 500 | 412 | 333 | 143 | 115 | 83 | 67 | 56 | 41 | 33 | 24 |
Rated speed r/min | 1686 | 421 | 347 | 281 | 120 | 97 | 70 | 57 | 47 | 34 | 28 | 20 |
Rated torque N.m | 0.18 | 0.66 | 0.80 | 1.0 | 2.3 | 2.9 | 3.9 | 4.9 | 5.9 | 7.3 | 9.0 | 12 |
N.m Max. permissible load in a short time | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 30 | 30 | 30 |

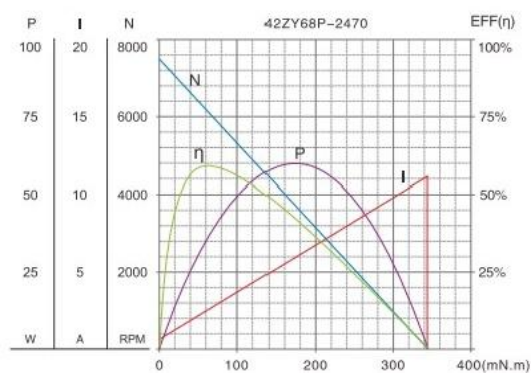

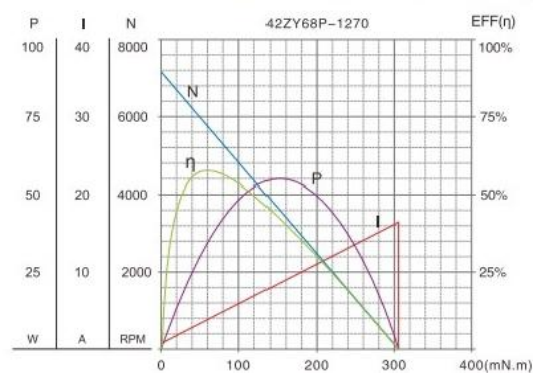

Motor Characteristic Figure

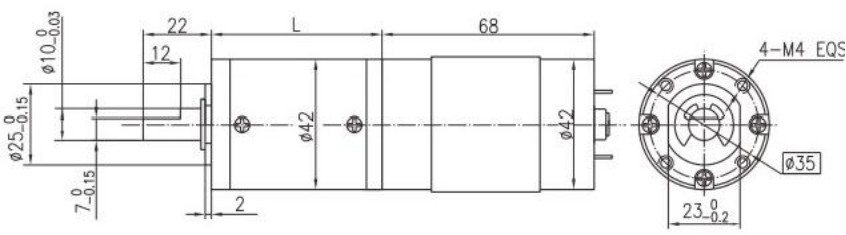

Dimensions
