42mm OD Planetary Gearbox.Permissible Load Range: 1N.m~10N.m
Motor Technical Data
Type | Rated vol tage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
42ZY68P- 1270 | 12 | 7000 | 1.2 | 5200 | 88 | 47.9 | 6.7 | 310 | 20.5 |
42ZY68P- 2470 | 24 | 7000 | 0.6 | 5200 | 120 | 65.3 | 4.2 | 320 | 10.8 |
Gear Motor Technical Data
42ZY68P-1270 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 115 | 139 | 181 | 218 | 253 | 305 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
Length(L) mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 62.9 | 62.9 | 62.9 | 62.9 |
No-load speed r/min | 1887 | 1351 | 500 | 368 | 259 | 137 | 99 | 70 | 61 | 50 | 39 | 32 | 28 | 23 |
Rated speed r/min | 1402 | 1004 | 371 | 274 | 193 | 102 | 73 | 52 | 45 | 37 | 29 | 24 | 21 | 17 |
Rated torque N.m | 0.29 | 0.41 | 1.0 | 1.6 | 1.9 | 3.3 | 4.6 | 6.4 | 7.4 | 8.9 | 10 | 10 | 10 | 10 |
N.m Max. permissible load in a short time | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 30 | 30 | 30 | 30 |
42ZY68P-2470 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 115 | 139 | 181 | 218 | 253 | 305 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
Length(L) mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 62.9 | 62.9 | 62.9 | 62.9 |
No-load speed r/min | 1887 | 1351 | 500 | 368 | 259 | 137 | 99 | 70 | 61 | 50 | 39 | 32 | 28 | 23 |
Rated speed r/min | 1402 | 1004 | 371 | 274 | 193 | 102 | 73 | 52 | 45 | 37 | 29 | 24 | 21 | 17 |
Rated torque N.m | 0.40 | 0.56 | 1.4 | 1.9 | 2.6 | 4.5 | 6.2 | 8.8 | 10 | 10 | 10 | 10 | 10 | 10 |
N.m Max. permissible load in a short time | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 30 | 30 | 30 | 30 |

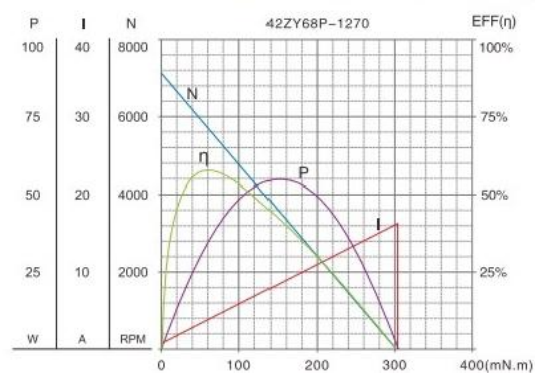

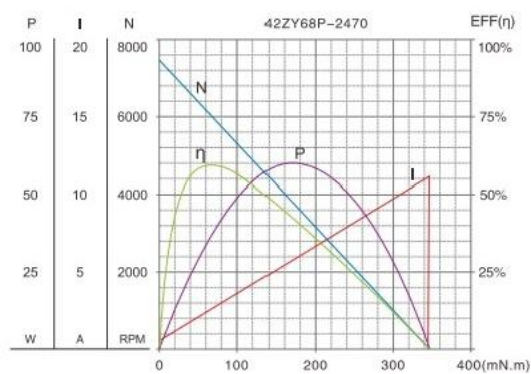

Motor Characteristic Figure

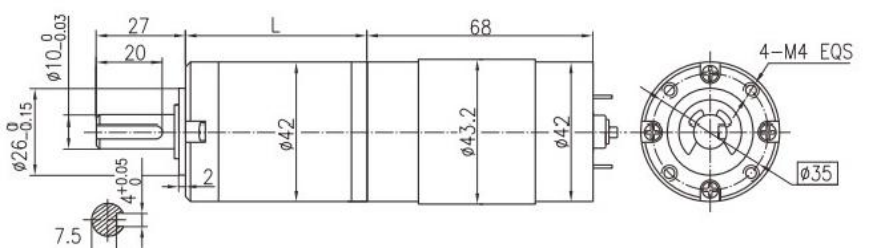

Dimensions
Ring gear can be selected within the two materials: Powder metal(Type:42JXF100K),Metal(Type:42JXE100K).
